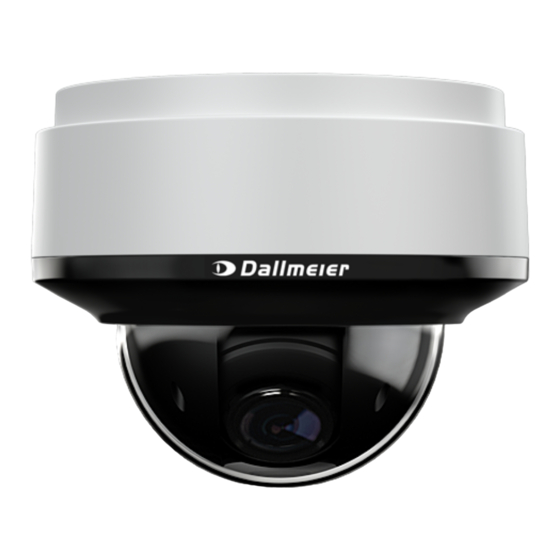

Installation camera series RDF6000DN
INSTALLATION AND CONNECTION OF A DOMERA® DUAL MATRIX LED RING
INCLUDING DOMERA® HOUSING COVER ALUMINIUM LED BLACK
ca. 10°
© 2022 Dallmeier electronic
V1.2.0
Preparing the camera

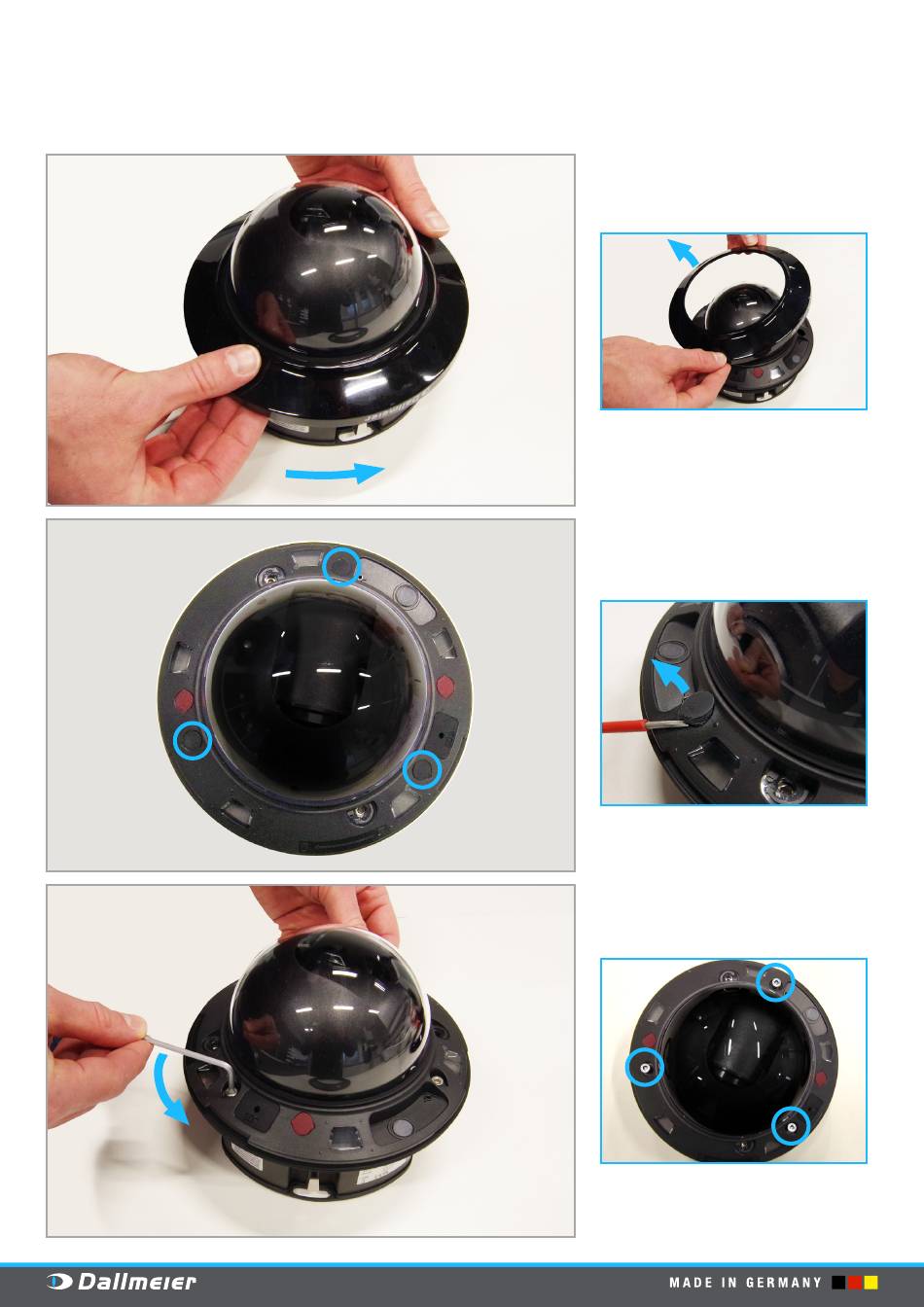

Remove the camera's housing
▶
cover by turning and lifting it.
Carefully remove the three
▶
rubber covers from the screws.
Open the three screws of the
▶
cover ring counterclockwise
using an Allen key.
2022.03.07
1/7
Advertisement
Table of Contents
Related Manuals for dallmeier RDF6000DN Series
Summary of Contents for dallmeier RDF6000DN Series
- Page 1 Remove the camera’s housing ▶ cover by turning and lifting it. ca. 10° Carefully remove the three ▶ rubber covers from the screws. Open the three screws of the ▶ cover ring counterclockwise using an Allen key. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
- Page 2 Carefully lift the rubber seal ▶ out of the camera housing using a small screwdriver. Insert the board into the board ▶ opening and press it carefully with light pressure. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
- Page 3 ▶ them with an Allen key. Installing the Dual Matrix LED Ring Place the Dual Matrix LED Ring ▶ on the camera. Make sure that the connector snaps into the socket of the board. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
- Page 4 Insert the three screws into the ▶ LED ring and tighten them. Place the cover ring with the dome ▶ on the LED ring of the camera. Pay attention to the alignment of the three bracket screws. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
- Page 5 Then tighten the screws clockwise ▶ using the Allen key. Carefully remove the protective ▶ foil over the five LED viewing windows using tweezers. Use the tweezers to remove ▶ the foil over the microphone. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
- Page 6 Reinsert the rubber covers ▶ over the three screws. Installing the aluminum ring Mount the safety strap on the ▶ camera and on the housing cover. © 2022 Dallmeier electronic V1.2.0 2022.03.07...
