The PP006A is a high impedance passive probe with a wide range of probing accessories. It
is designed to give high impedance probing capability to a circuit when attached to a LeCroy
Oscilloscope.
System BW (－3dB)
System Attenuation
System Input Resistance
Compensation Range
Cable Length
Max. non-destructive input voltage : 600 V (DC + Peak AC) (see derating curve)
Probe Sense

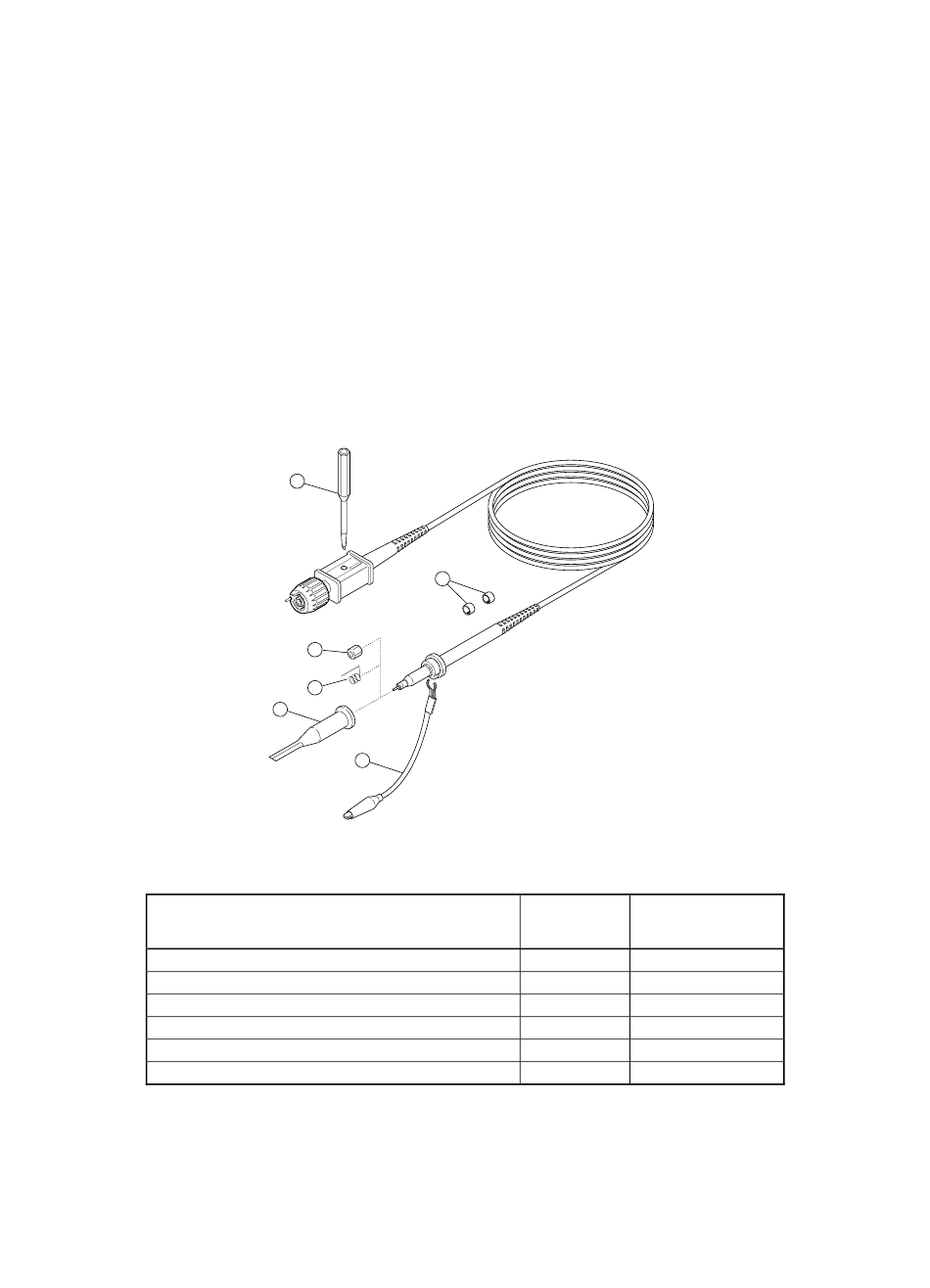

A ccessories Table
① Sprung hook
② Ground lead (11 cm)
③ Ground lead on probe tip
④ IC Insulating tip
⑤ Color marking band (yellow, red, blue, green)
⑥ Trimmer tool
Find Quality Products Online at:
Probe PP006A
: 500 MHz
: 10×±2%
: 10 M (Ω) // 12 pF
: 13 pF to 23 pF
: 1.2 meters, Connector type BNC
: Yes
6
5
4
3
1
2
Item
GlobalTestSupply
www.
PK116 accessory
PP006A
package
1
1
1
1
1
1
1
1
4×2
4×2
1
1
.com
sales@GlobalTestSupply.com
Advertisement
Table of Contents
Related Manuals for LeCroy PP006D
Summary of Contents for LeCroy PP006D
- Page 1 Probe PP006A The PP006A is a high impedance passive probe with a wide range of probing accessories. It is designed to give high impedance probing capability to a circuit when attached to a LeCroy Oscilloscope. System BW (－3dB) : 500 MHz System Attenuation : 10×±2%...
- Page 2 Probe Adjustment LF Adjustment LF compensation is made by connecting the probe to the cal signal and adjusting the compensation trimmer in the BNC-box at end of the probe. Connect the BNC end of the probe to a channel of the oscilloscope. Connect the sprung hook end (1) and the ground lead (2) to the CAL out and GND on the scope Calibrator area.
- Page 3 Installation for Safe and Efficient Operation Operating Environment Before using the Probe, ensure that its operating environment will be maintained within these parameters : Operation In-door Use Temperature 5 to 40 C or 41 to 104 Humidity < 80 % RH (non-condensing) The Probe has been designed to comply with EN61010-1 Installation (Overvoltage) Category II, 600 V, Pollution Degree 2.
- Page 4 All repair and maintenance should be referred to qualified service personnel. Do not use the probe if any part is damaged. Copyright, January 1999. LeCroy is a registered trademark of LeCroy Corporation. All rights reserved. Information in this publication supercedes all earlier versions.
