LeCroy PP006A Quick Manual

Probe

The PP006A is a high impedance passive probe with a wide range of probing accessories. It

is designed to give high impedance probing capability to a circuit when attached to a LeCroy

Oscilloscope.

System BW (－3dB)

System Attenuation

System Input Resistance

Compensation Range

Cable Length

Max. non-destructive input voltage : 600 V (DC + Peak AC) (see derating curve)

Probe Sense

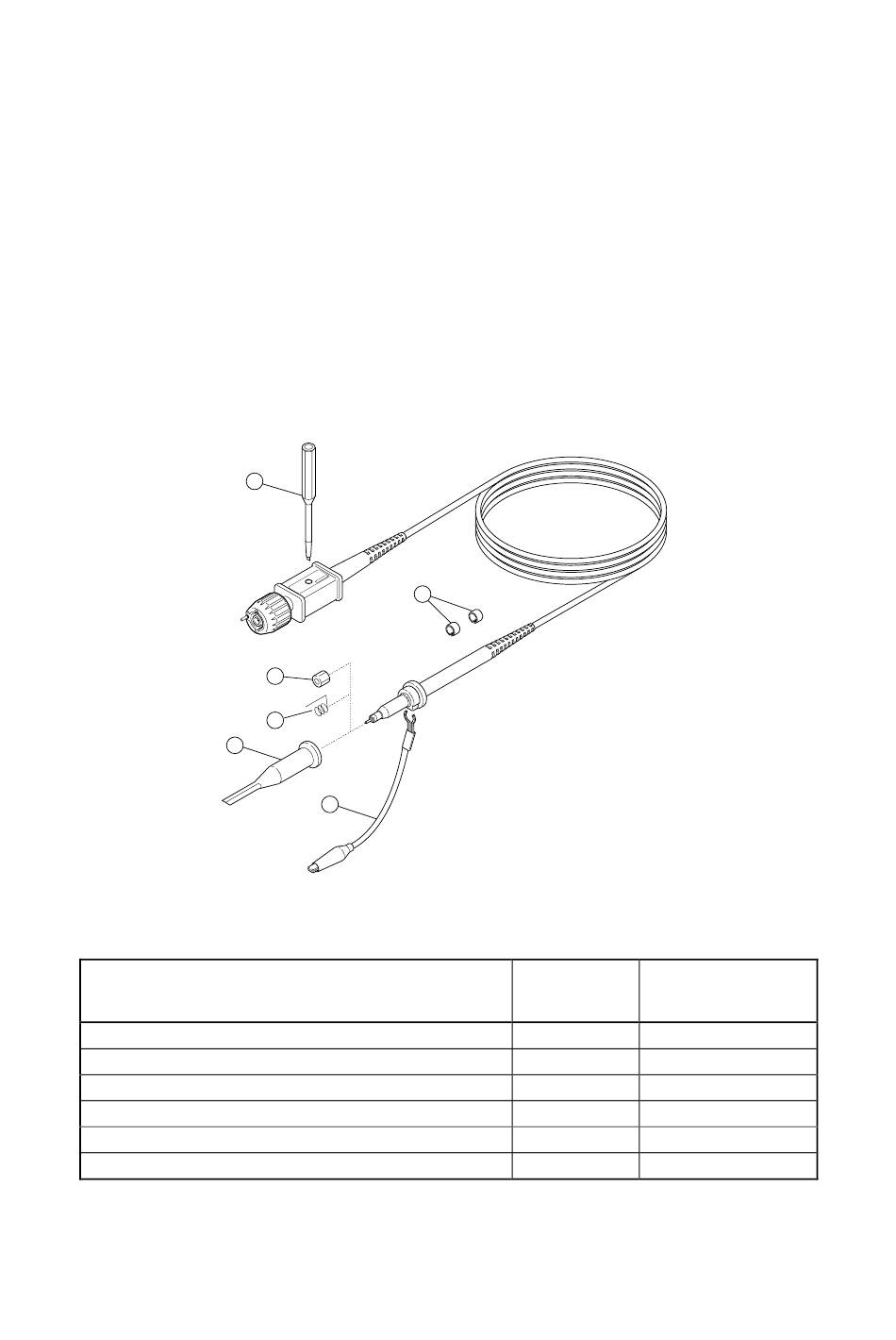

A ccessories Table

① Sprung hook

② Ground lead (11 cm)

③ Ground lead on probe tip

④ IC Insulating tip

⑤ Color marking band (yellow, red, blue, green)

⑥ Trimmer tool

Probe PP006A

: 500 MHz

: 10×±2%

: 10 M (Ω) // 12 pF

: 13 pF to 23 pF

: 1.2 meters, Connector type BNC

: Yes

Item

PK116 accessory

PP006A

package

4×2

Table of Contents

Need help?

Do you have a question about the PP006A and is the answer not in the manual?

Page 1 Probe PP006A The PP006A is a high impedance passive probe with a wide range of probing accessories. It is designed to give high impedance probing capability to a circuit when attached to a LeCroy Oscilloscope. System BW (－3dB) : 500 MHz System Attenuation : 10×±2%...
Page 2 Probe Adjustment LF Adjustment LF compensation is made by connecting the probe to the cal signal and adjusting the compensation trimmer in the BNC-box at end of the probe. Connect the BNC end of the probe to a channel of the oscilloscope. Connect the sprung hook end (1) and the ground lead (2) to the CAL out and GND on the scope Calibrator area.
Page 3: Installation For Safe And Efficient Operation
Installation for Safe and Efficient Operation Operating Environment Before using the Probe, ensure that its operating environment will be maintained within these parameters : Operation In-door Use Temperature 5 to 40 C or 41 to 104 Humidity < 80 % RH (non-condensing) The Probe has been designed to comply with EN61010-1 Installation (Overvoltage) Category II, 600 V, Pollution Degree 2.
Page 4: Cleaning And Maintenance
Chestnut Ridge, NY 10977-6499 Tel (800) 5 LECROY Fax (845) 578 5985 Copyright, January 1999. LeCroy is a registered trademark of LeCroy Corporation. All rights reserved. Information in this publication supercedes all earlier versions. Specifications subject to change without notice.
