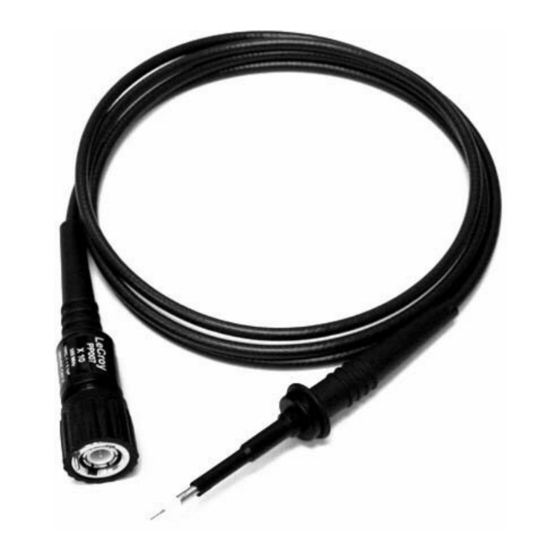

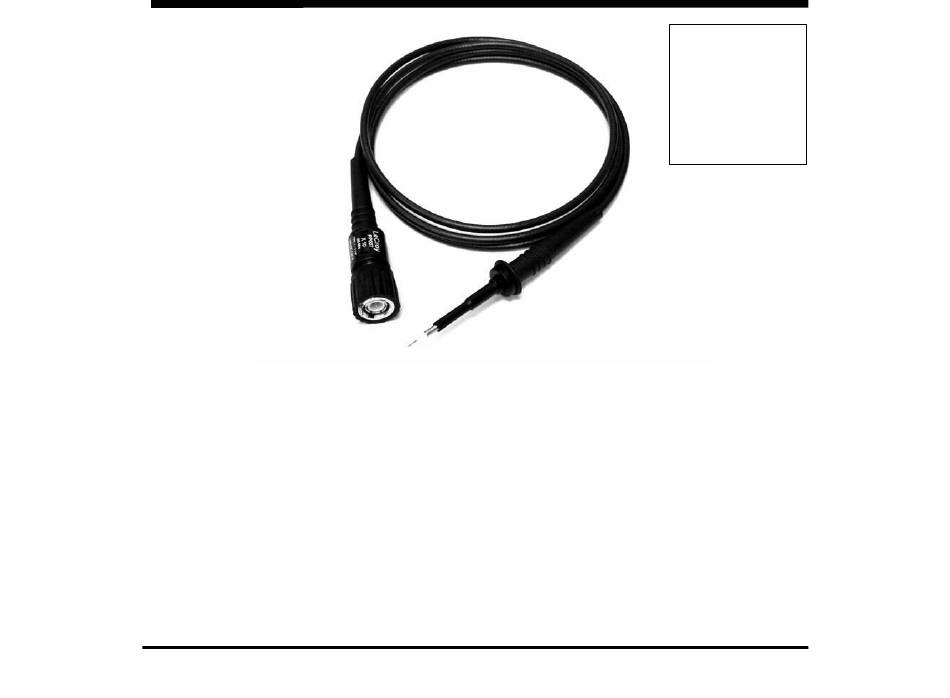

- Page 1 PP007-WR-1 PP007-WR-2 PP007-WS-1 PP007-WS-2… Instruction Manual LeCroy PP007-WR / PP007-WS Passive Probe Revision D – July 2004...
-
Page 2: Warranty
Customer Service Department of an authorized service center. However, this will be done only if the product is determined by LeCroy’s examination to be defective do to workmanship or materials, and the defect is not caused by misuse, neglect, accident, abnormal conditions of operation, or damaged resulting from attempted repair or modifications by a non-authorized service facility. -
Page 3: Safety Information
Safety Information This symbol appears on the product: This refers you to additional information contained in this manual. The corresponding information in the manual is similarly denoted. To avoid personal injury and to prevent fire or damage to the probe or any products connected to it, review and comply with the following safety precautions. -
Page 4: Specifications
The PP007-xx is available in two models, differing only in the design of the compensation network. • The PP007-WR is designed for use with LeCroy WaveRunner 6000 series oscilloscopes. • The PP007-WS is designed for use with LeCroy WaveSurfer 400 series oscilloscopes. - Page 5 Specifications (continued) General Characteristics Operating Temperature to +50 Storage Temperature to +71 Altitude, Operating up to 2000 m (6560 ft) Cable Length 1.3 m Weight (probe only) 42 g Max. V versus Frequency, Typical Input Impedance Measurement category I (Vrms) (Ω) 10 M 100 k...
-
Page 6: Connectivity Accessories
Connectivity Accessories LeCroy provides over 30 individual accessories for the PP007-xx probe, which enable reliable connections to any physical requirement. In addition to those provided with the standard probe, several optional varieties are available either individually, or grouped in sets related to specific application needs. - Page 7 Instruction Manual Use of PCB Adapter The PCB adapter (LeCroy P/N PK007-015) is intended to be designed into and permanently installed in circuit boards to provide a reliable, high frequency test point which eliminates the need to hand hold the probe.
- Page 8 Optional Accessories Input Adapters and Clips PK007-017 PK007-018 PK007-022 PK007-023 Single Lead Adapter Dual Lead Adapter Adapter, 2 mm plug Adapter, 4 mm plug PK007-019 PK007-020 PK007-021 Pico Hook Micro Clip, Long Micro Clip, Short PK007-031 BNC Adapter (For low voltage use only ≤42 V pk AC + DC)
- Page 9 Ground Leads PK007-024 PK007-025 Probe Tip Ground Lead w 0.8 mm Socket Probe Tip Ground Lead with Alligator Clip PK007-026 PK007-027 PK007-028 Ground Llead with mini clip Ground Lead with 8 mm socket Ground Lead with 2 mm plug PK007-029 PK007-030 Ground lead with 4 mm plug High Frequency Compensated Ground Lead...
- Page 10 Probe Connectivity Kits The following kits containing an assortment of probe connection accessories can be ordered directly from LeCroy. Refer to the illustrations on pages 6-9 for identification. PK701 Basic Adapter Kit replaces the common standard accessories, with 2 each of designators 1, 2, 4, 5 and 14;...
-
Page 11: Probe Compensation
Probe Compensation Proper compensation of the probe is required to assure good amplitude accuracy in the dynamic portions of the waveform being measured. LF compensation matches the probe to differences in oscilloscope input capacitance. The LF compensation should always be checked and adjusted as needed when first connecting a passive probe to the oscilloscope input. - Page 12 Tip Selection and Exchange The PP007-xx probe is supplied with two tip styles. The spring tip, which is installed when the probe is shipped, combines a sharp point with on-axis compliance. This provides reliable connection under a wide range of physical interconnect situtations.
