Page 1: Instruction Manual

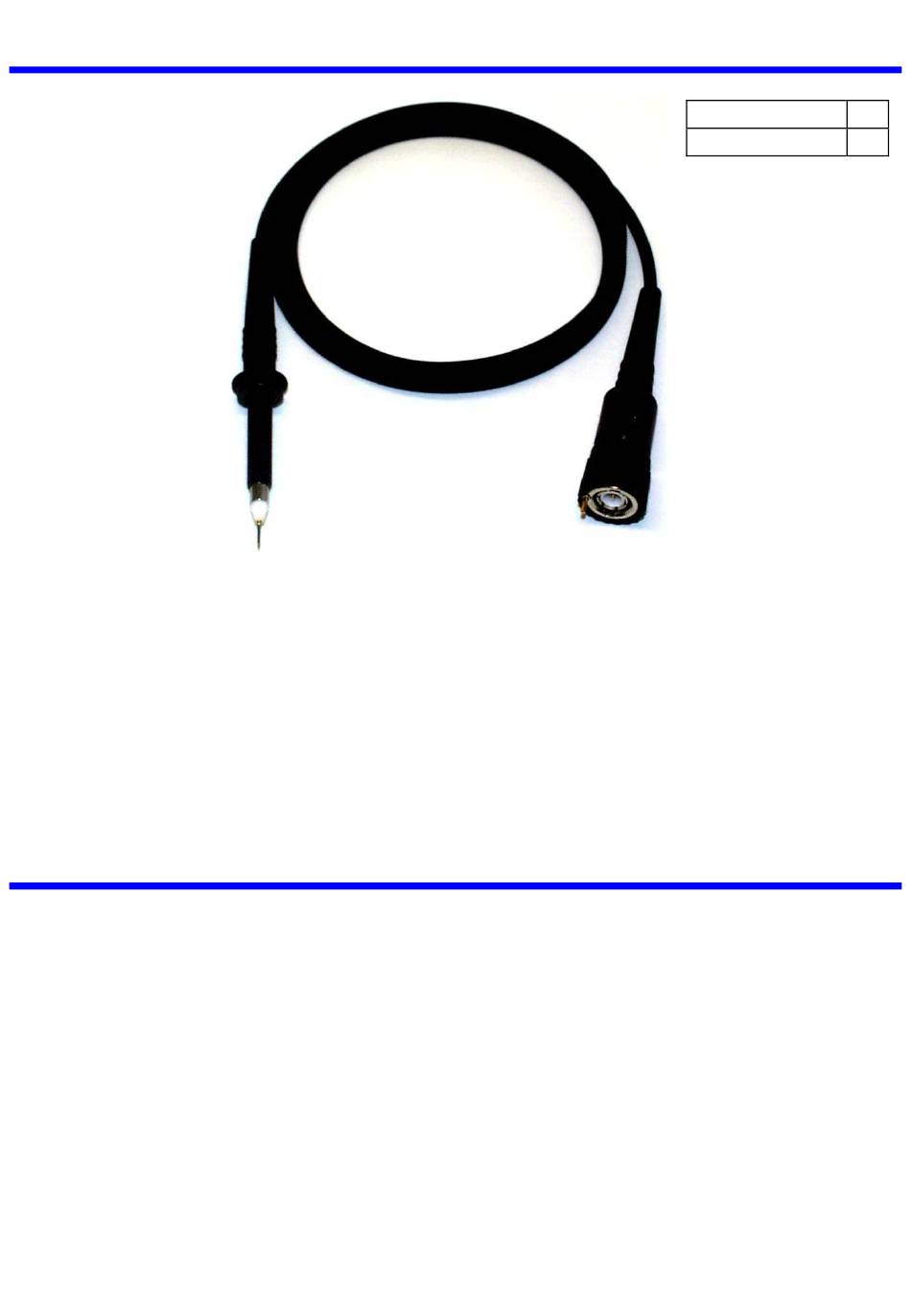

PP011-1 PP011-2 LeCroy PP011 Passive Probe Instruction Manual Revision A – October 2006... -
Page 2: Warranty
Spare parts, replacement parts and repairs are warranted for 90 days. In exercising its warranty, LeCroy, at its option, will either repair or replace any assembly returned within the warranty period to the Customer Service Department of an authorized service center. However, this will be done only if the product is determined by LeCroy’s examination to be defective because of workmanship or materials,... -
Page 3: Safety Information
Avoid physical injury. The probe tip is extremely sharp. Use care when handling to prevent injury, including accidental skin puncture. Use of the probe and/or the test instrument it is connected to in a manner not specified by the manufacturer may impair the protection mechanisms. PP011-OM-E Rev A... -
Page 4: Specifications
Introduction The PP011 is a miniature high impedance passive probe. Its high input resistance and low capacitance make it ideal for general purpose probing of signals with frequency content from DC through several hundred MHz. The PP011 has a large selection of connection accessories, supplied standard with the probe and available from LeCroy as optional accessories. -
Page 5: Measurement Category I
This probe is designed to conform to 73/23/EEC + amendment 93/68/EEC Low Voltage Directive (LVD) per the following standards: CEI/IEC 61010-031:2002-01 Safety requirements for electrical equipment for measurement control and laboratory use: Part 031: Safety requirements for hand-held probe assemblies for electrical measurement and test. PP011-OM-E Rev A... -
Page 6: Connectivity Accessories
Connectivity Accessories LeCroy provides 24 individual accessories for the PP011 probe, which enable reliable connections to any physical requirement. In addition to those provided with the standard probe, several optional varieties are available either individually, or grouped in sets related to specific application needs. -
Page 7: Optional Accessories
Ground Spring Input Adapters and Clips PK1-5MM-111 PK1-5MM-112 PK1-5MM-116 PK1-5MM-117 Single Lead Adapter Dual Lead Adapter Adapter, 2 mm plug Adapter, 4 mm plug PK1-5MM-113 PK1-5MM-114Y PK1-5MM-115Y Pico Hook™ PK1-5MM-114G PK1-5MM-115G Micro Clip, Long Micro Clip, Short PP011-OM-E Rev A... - Page 8 BNC Adapter (For low voltage use only ≤ 42 V AC + DC) Use of PCB Adapter The PCB adapter (LeCroy P/N PK1-5MM-107) is intended to be designed into and permanently installed i n circuit boards to provide a reliabl e, high frequency test point which eliminates the need to hand hold the probe.
-
Page 9: Ground Leads
Ground Lead with 8 mm socket Ground Lead with 2 mm plug PK1-5MM-122 PK1-5MM-123* Ground lead with 4 mm plug High Frequency Compensated Ground Lead *The PK1-5MM-123 High Frequency compensated ground lead allows operation with long ground lead with minimum signal distortion. PP011-OM-E Rev A... -
Page 10: Use And Maintenance
Probe Connectivity Kits The following kits containing an assortment of probe connection accessories can be ordered directly from LeCroy. Refer to the illustrations on pages 6-9 for identification. PKIT1-5MM-102 Basic Adapter Kit replaces the common standard accessories, with 1 each of PK1-5MM-110, PK1-5MM-104, PK1-5MM-103, PK1-5MM-108, PK1-5MM-117, PK1-5MM-101, PK1-5MM-102, PK1-5MM-118, PK1-5MM-123;... -
Page 11: Probe Compensation
The probe must be connected to a terminated probe tip to BNC adapter. Some overshoot and ring will be present at some settings of V/Div. Adjust the trimmer for the overall best response on all ranges. Typical optimum HF adjustment PP011-OM-E Rev A... - Page 12 Tip Selection and Exchange The PP011 probe is supplied with a rigid tip. The spring tips PK1-5MM-109 (0.8 mm) or PK1-5MM-124 (0.38 mm) combine sharp points with on-axis compliance and can be ordered directly from LeCroy as optional accessories. All three tip styles provide reliable connections under a wide range of physical interconnect situations.
