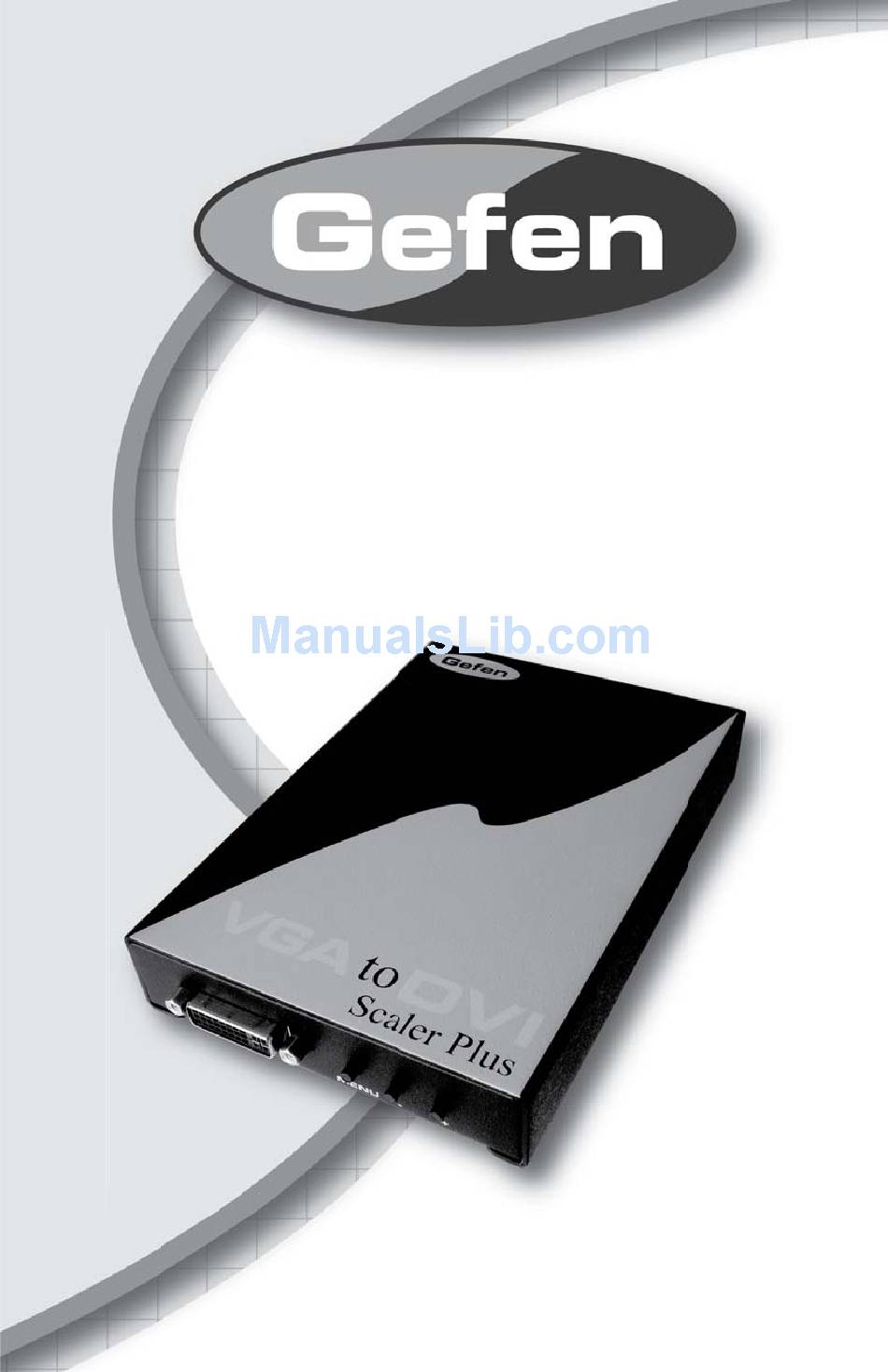

- Page 1 VGA To DVI Scaler PLUS U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. VGA To DVI Scaler Plus © 2008 Gefen Inc., All Rights Reserved...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the VGA to DVI Scaler Menu Functions Troubleshooting Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. Introduction The VGA to DVI Scaler PLUS connects traditional analog video graphic cards (VGA) to DVI compliant digital monitors. -
Page 5: Features
Features • The input is analog PC or HDTV signal in the format of either RGBHV, YPbPr or YCbCr. • The output is digital+analog PC or HDTV signal in the format of digital RGBHV bit stream plus analog RGBHV, known as DVI-I (Integrated digital and analog) •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS Front view VGA Input Power Supply Input Power Indicator Back view Level Adjustment Menu Button DVI Output Level Adjustment/ Auto Adjust... -
Page 7: Connecting And Operating The Vga To Dvi Scaler
CONNECTING AND OPERATING THE VGA TO DVI SCALER PLUS How to Connect the VGA to DVI Scaler Plus Connect your analog video card to the HD-15 female connector at the input side of the VGA to DVI Scaler Plus. (Note: The Menu button of the VGA to DVI Scaler Plus will not work without a source plugged in) Connect the DVI (M-M) cable between the DVI connector on the digital display and the DVI output of the VGA to DVI Scaler Plus. -
Page 8: Menu Functions
PC Menu Contrast: Adjusts the picture contrast Brightness: Adjusts the picture brightness H POS: Adjusts the picture's Horizontal Position V POS: Adjusts the picture's Vertical Position Clock: Clock adjustment for focus Phase: Phase adjustment for focus Scale: Aspect ratio control OSD (On Screen Display) Adjust Menu H POS: Adjusts the Horizontal Position... -
Page 9: Troubleshooting
No Picture appears on bootup: If no picture appears on bootup, fi rst reset the VGA to DVI Scaler Plus to the native mode of the display it is connected to. Monitors without an internal scaler (Any Apple Display as well as the Dell 30" monitor) require the VGA to DVI Scaler Plus to output the monitor's exact native resolution to display a picture. -
Page 10: Specifi Cations
SPECIFICATIONS DVI Video Amplifi er Bandwidth...165 MHz VGA Amplifi er Bandwidth...350 Mhz Input Video Signal RGBHV...0.7 Vp-p 75 ohm H/V...3 to 5 Vp-p TTL Y...1 Vp-p 75 ohm Pb/Cb, Pr/Cr...0.7 Vp-p 75 ohm Input DDC Signal...5 Volts p-p (TTL) DVI Connector...DVI-I (29 pin) female VGA Connector...HD-15 male Power Consumption...10 Watts (max) Power Supply...5V DC...
