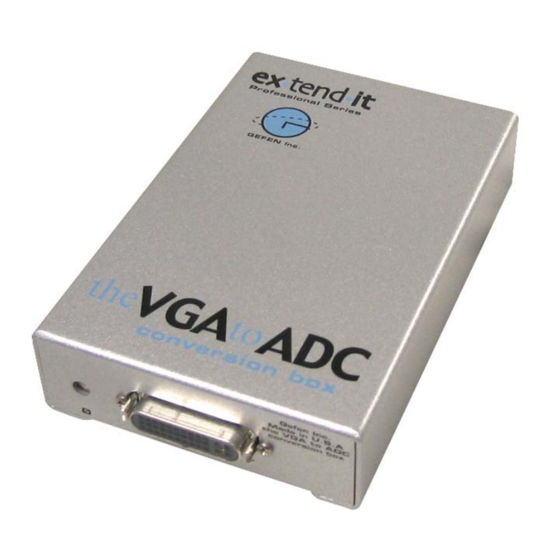

- Page 1 VGA to ADC Conversion Box U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. VGA to ADC Conversion Box is a trademark of Gefen Inc.
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the VGA to ADC Conversion Box Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of free support from a team of outstanding engineers. Introduction The ex•tend•it VGA to ADC Conversion Box connects traditional analog video graphic... -
Page 5: Features
FEATURES Features • Connects computers with HD-15 analog video graphics output to ADC compatible monitors. • Maintains up to 1920 x 1200 x 60 resolution • Supports Many ADC LCD displays • Supports DDWG standard for ADC compliant monitors • Installs in seconds Includes: (1) VGA to ADC Conversion Box (1) 6’... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The Vga To Adc Conversion Box
Connecting and Operating the VGA to ADC Conversion Box How to Connect the VGA to ADC Conversion Box 1- Connect your analog video card to the HD-15 female connector at the input side of the VGA to ADC Conversion Box. 2- Connect your USB from your computer to the USB connector at the input side of the VGA to ADC Conversion Box. -
Page 8: Specifi Cations
SPECIFICATIONS ADC Bandwidth ... 1.6 GHz VGA Bandwidth ... 350 MHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Maximum Single Link Range ... 1920 x 1200 ADC Connector Type ... 35 pin female VGA Connector Type ...HD-15 Power Consumption ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
