Avonic CM61-IP User Manual

Full hd video ip camera with poe
Hide thumbs Also See for CM61-IP:
Table of Contents

Advertisement

Quick Links

Download this manual

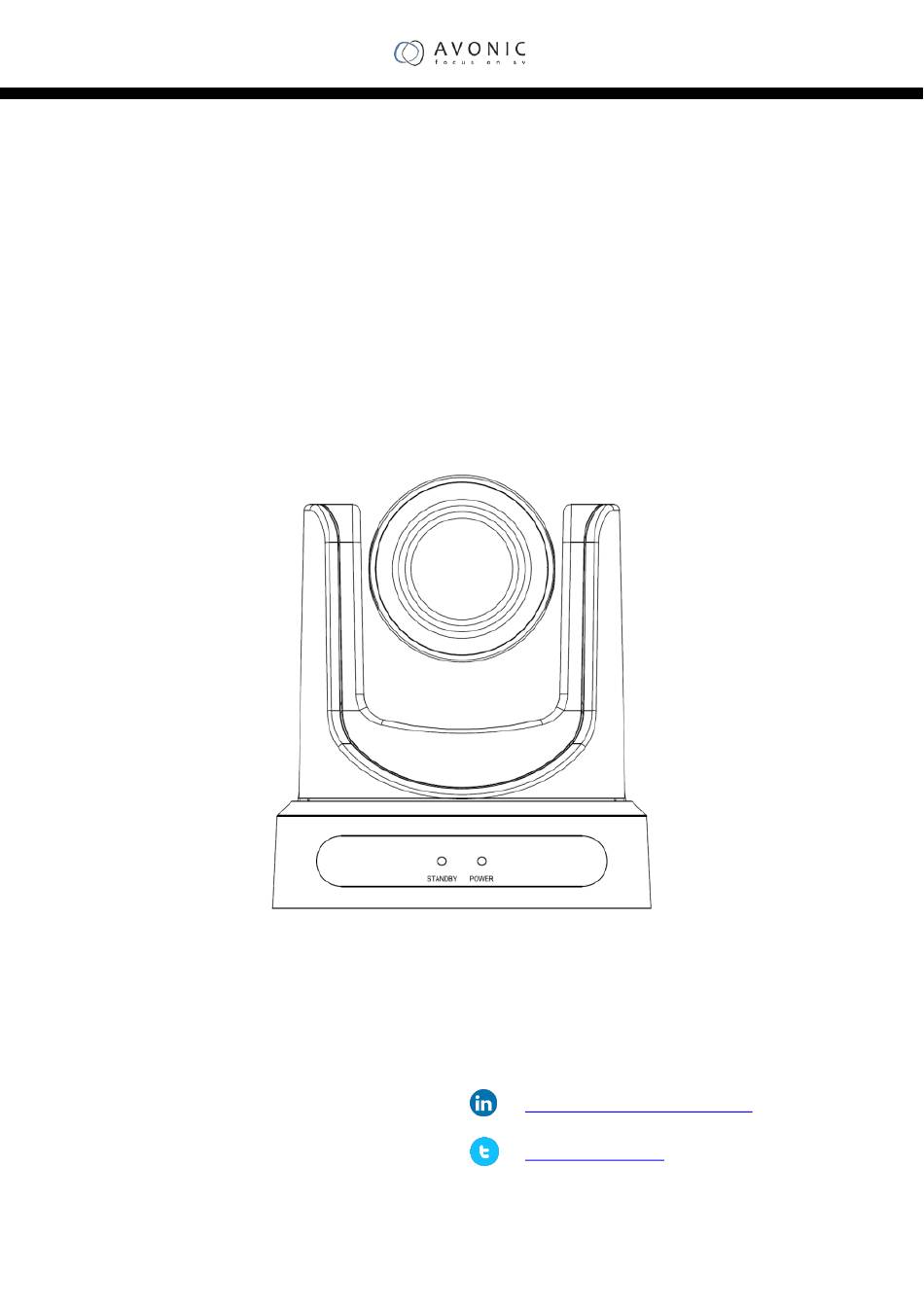

User Manual
Version 2.5
Update notes:
• RC settings
Avonic
CM61-IP
Full HD Video IP Camera with PoE
Join Avonic
linkedin.com/company/avonic
twitter.com/avonic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM61-IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avonic CM61-IP

Summary of Contents for Avonic CM61-IP

  • Page 1 Avonic CM61-IP Full HD Video IP Camera with PoE User Manual Version 2.5 Join Avonic Update notes: linkedin.com/company/avonic • RC settings twitter.com/avonic...

  • Page 2: Table Of Contents

    • SDI definition facebook.com/avonic Contents Contents ................2 Introduction ................6 Congratulations ........................... 6 Safety Notes ............................6 Package contents ..............7 Accessories ................7 Product Overview ..............9 Features ............................... 9 Main Unit ............................10 Input and Output Description ....................10 IR Remote Controller ........................
  • Page 3 7. SETUP ..........................30 8. COMMUNICATION SETUP ....................31 9. RESTORE DEFAULT ....................... 32 Serial Communication Control ......................32 COM port settings ......................... 32 Command List ........................... 33 Network Function ..........................34 Operating Environment ......................34 Equipment Installation ......................34 www.avonic.eu...
  • Page 4 RTSP stream media player ....................48 IP Port parameters ........................ 48 Device Information ......................... 48 Maintenance ................ 50 Camera Maintenance ........................50 Unqualified Application ........................50 Troubleshooting ..............50 Image ..............................50 Control ............................... 52 Contact ................52 Appendix A ................. 53 www.avonic.eu...
  • Page 5 VISCA Camera Control Command List ..................56 VISCA Query Command List ......................60 Pelco-D Protocol Command List ....................68 Pelco-P Protocol Command List ..................... 69 VISCA over IP commands ......................70 Appendix B Quick Start ............. 79 Appendix C Dimensions ............. 80 www.avonic.eu...

  • Page 6: Introduction

    Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, • do not use strong or abrasive detergent to clean that will damage the device. If you wish to dispose this product, please contact Avonic to obtain info about the take- • back procedure.

  • Page 7: Package Contents

    1 pc Power Supply 12V/A CM-PSU 1 pc Remote Control CM-RC 1 pc RS232 9-pin female to 8-pin male CM-RS232 Accessories Wall mount in White and Black Avonic SKU : CM-WMW : CM-WMB Ceiling mount in White and Black www.avonic.eu...
  • Page 8 Avonic SKU : CM-CMW : CM-CMB www.avonic.eu...

  • Page 9: Product Overview

    The cameras are equipped with a Panasonic CMOS sensor combined with a glass high-quality glass lens with 12x optical zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ controller or any third party controller that supports VISCA, Pelco-P/D protocols.

  • Page 10: Main Unit

    Remote Control with IP on TCP or UDP port. Freeze Image while switching presets. • Main Unit Input and Output Description 1. Audio LINE IN Interface 2. CVBS Interface 3. System select switch 4. RS485 interface 5. RS232 IN interface www.avonic.eu...
  • Page 11 6. RS232 OUT interface 7. Network Interface 8. HDMI Interface 9. 3G-SDI Interface (SMPTE 424M) 10. USB2.0 (update only) 11. DC 12V jack 12. Power switch www.avonic.eu...

  • Page 12: Ir Remote Controller

    Setting a corresponding numeric key preset position 5. Pan-Tilt control Buttons Pressing the Pan-Tilt back to the middle position 6. Back buttons Press the OSD menu return to the superior. 7. Zoom Buttons Slow Zoom: Zoom In [+] or Zoom Out [-] slowly www.avonic.eu...
  • Page 13 [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. 13. Clear Preset Buttons www.avonic.eu...

  • Page 14: Remote Control Shortcuts

    ON / OFF button. To cancel this function, press the backlight ON / OFF button. 17. Pan/Tilt reset Preset Pan/Tilt self-test. Remote Control Shortcuts [*]+[＃]+[1]: OSD menu default in English [*]+[＃]+[4]: Show IP address and network settings [*]+[＃]+[5]: Save OSD [*]+[＃]+[6]: Quickly recover the default [*]+[＃]+[8]: Show the camera version www.avonic.eu...

  • Page 15: Remote Control Ir Channel Settings

    Remote Control IR channel Settings [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. www.avonic.eu...

  • Page 16: Installation

    Installation Connection Diagram System Select Switch Setting of the system select switch. The option of video format: VIDEO SYSTEM 1080p60 720p30 www.avonic.eu...

  • Page 17: Power Adapter

    After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Power adapter This equipment is equipped with a 12V/2A DC power supply. Insert the power supply according to the requirements, turn on the power switch. www.avonic.eu...

  • Page 18: Rs232 Interface

    RS232-IN of the first camera in the serial circuit. The RS232-OUT of the first camera is connected to the RS232-IN of the second camera and so on. In the OSD menu under Communication Setup, the Protocol is Auto / VISCA, and Net mode is set to Serial. www.avonic.eu...

  • Page 19: Rs485 Network Connection Diagram

    The maximum length of the bus is 1200m. The maximum distance from the bus to the camera or controller is 5 meters. The cameras are connected with the 2-pin Phoenix connector. In the OSD menu under Communication Setup, Net mode is set to Paral. www.avonic.eu...
  • Page 20 www.avonic.eu...

  • Page 21: Operation

    Operation OSD Menu The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. In the following pages, the navigating is described for using the IR Remote Control. Menu Tree www.avonic.eu...
  • Page 22 www.avonic.eu...

  • Page 23: Menu

    Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu. MENU Exposure Color Image P/T/Z Noise Reduction Setup Communication Setup Restore Default [Home] Enter [Menu] Exit www.avonic.eu...

  • Page 24: Exposure

    Set the backlight compensation, Change Value Optional items: On, Off (Effective only in Auto mode ) [Menu] Back Gain Limit Maximum gain limit. Optional items: 0 ~ 15 (Effective only in Auto, AAE ,Bright mode) Meter Optional Items: Average, Center, Smart, Top www.avonic.eu...
  • Page 25 F8.0, F9.6, F11.0, Close（Effective only in Manual, AAE mode） Shutter Shutter value. Optional items: 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (Effective only in Manual, SAE mode) Gain Optional items: 0 ~ 7 (Effective only in Manual) www.avonic.eu...

  • Page 26: Color

    Optional items: 0~255（Effective only in Manual mode） RG Tuning Red gain fine-tuning Optional items: -10 ~ +10（Effective only in Auto, One Push, VAR Mode） BG Tuning Blue gain fine-tuning Optional items: -10 ~ +10（Effective only in Auto, One Push, VAR Mode） www.avonic.eu...

  • Page 27: Image

    Sharpness Flip-H Flip-V B&W-Mode Gamma Default Luminance Brightness adjustment. Style Norm Optional items: 0 ~ 14 Contrast Contrast adjustment Optional items: 0 ~ 14 Select Item Sharpness Sharpness adjustment. Change Value Optional items: Auto, 0 ~ 15 [Menu] Back www.avonic.eu...

  • Page 28: P/T/Z

    Optional items: On, Off. 1080p60 / 1080p50 not support the lens distortion. 5. P/T/Z P/T/Z SpeedByZoom AF-Zone Center AF-Sense High L/R Set Display info Image Freeze Digital Zoom SpeedByZoom The depth of field scale switch, Call Preset Speed Optional items: On, Off Fast Zoom www.avonic.eu Select Item...

  • Page 29: Noise Reduction

    Optional items: On, Off 6. NOISE REDUCTION NOISE REDUCTION NR2D-Level NR3D-Level D-HotPixel NR2D-Level 2D noise reduction. Optional items: Off, Auto, 1 ~ 5 Select Item NR3D-Level 3D noise reduction. Change Value Optional items: Off, 1 ~ 8 [Menu] Back www.avonic.eu...

  • Page 30: Setup

    DVI Mode Lens Type1 Auto scan shoot Off Language menu language, Select Item Optional items: EN, Chinese, Russian Change Value DVI Mode Optional items: DVI, HDMI [Menu] Back Lens Optional Items: Type1, Type2 Auto Scan Shoot Optional Items: On, Off www.avonic.eu...

  • Page 31: Communication Setup

    Serial, for RS232 daisy chaining wiring (VISCA only) Paral, for RS485 parallel wiring P_D_Address PELCO-D protocol Optional items: 0 ~ 254 P_P_Address PELCO-P protocol Optional items: 0 ~ 31 Baudrate Serial port baud rate. Optional items: 2400, 4800, 9600, 38400 www.avonic.eu...

  • Page 32: Restore Default

    RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600/38400 bit/s. • Start bit: 1 bit. • Data bit: 8 bits. • Stop bit: 1bit. • Parity bit: none. • www.avonic.eu...

  • Page 33: Command List

    (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Then the users can control the camera with commands in the command list. Command List See Appendix A www.avonic.eu...

  • Page 34: Network Function

    3. The orange light of ethernet port lit on, green light flashing, and the physical connection finished. Connection ways between IP camera and computer, as picture 1.1 and picture 1.2 shown: Picture 1.1 connect by ethernet cable www.avonic.eu...

  • Page 35: Lan Access And Control

    To find the camera’s IP settings, press * and # and 4 on remote controller one by one. The IP address will be shown on the screen. Change IP address: On web control page, find "Network"--->Change IP---->Click "Apply"----> Restart camera Visit/Access IP Camera Input http://192.168.100.88 to web browser, a login window pop up, input www.avonic.eu...

  • Page 36: Tcp/Udp Control

    A window like the following will appear: TCP/UDP Control The Avonic IP camera is implemented with a TCP server inside. The default TCP port number is 5678. This number can be changed in the WebGUI in the Network Menu. Once the connection between client and server is set up, the client will be able to send VISCA PTZ commands to the server.

  • Page 37: Webgui Homepage

    The Avonic IP Camera has also implemented an UDP server inside. The UDP port number is 1259. This number cannot be changed. Once the connection between client and server is set up, the client will be able to send VISCA PTZ commands to the server. The server then parses and executes the VISCA PTZ command.
  • Page 38 www.avonic.eu...
  • Page 39 : focusing on distant objects or Focusing on close objects. Set/Call : When PTZ turn to expected position, can set up a number of preset that user want. click "Set" button, when PTZ turn to other position, click "Call" button, PTZ turn back to preset position. Language selection www.avonic.eu...

  • Page 40: Video

    : Chinese/English/Russian Video Video Format : 50HZ(PAL) 60HZ(NTSC) Dial priority Encode Level : baseline, mainprofile, highprofile and 2 stream: Resolution : First stream support 1920x1080, 1280x720,1024x576, Second stream support 640x360,720x576, 320x180 Bit Rate : User can assign bit flow/stream, www.avonic.eu...
  • Page 41 Frame rate is smaller, the more sense of beating. the bigger the I-key interval is, the response will be lower from viewing window. www.avonic.eu...

  • Page 42: Image Setup

    Contrast : Contrast 0~14, slider control, Default 6. Sharpness : Sharpness 0~15, slider control, Default 1. : Hue 0~14, slider control, Default 7. Flip & Mirror : Tick Flip; image upside down, tick mirror; image mirrored. Default not tick. www.avonic.eu...

  • Page 43: Audio Setup

    : 44.1K 48K Bit rate : 96k, 128k, 256k Input Type : line in only Input Vol. L : The volume of the left channel Input Vol. R : The volume of the right channel ADTS Options : On, Off www.avonic.eu...

  • Page 44: System Setting

    Reboot : Click the "Reboot" button, system restart. User and password : The user can modify the password (letters and numbers only) Guest and password : The user can modify the password for a guest (letters and numbers only) www.avonic.eu...

  • Page 45: Network Setting

    Network Setting www.avonic.eu...
  • Page 46 When port mapping, need to be consistent with the port number(default port: 80) RTSP Port : IP camera support RTSP protocol, use the VLC tools broadcast. PTZ Port : Support PTZ protocol, default port: 5678. www.avonic.eu...
  • Page 47 Setting IP camera RTSP protocol of "On", "Off". ONVIF Settings Setting the ONVIF protocol and ONVIF authorization "On", "Off". Multicast Settings Setting multicast "On", "Off", and multicast address (default address 224.1.2.3) and port (default 6688) SDK Settings For System Developers only www.avonic.eu...

  • Page 48: Rtsp Stream Media Player

    HTTP Port range : 80; 1024-65535 (default 80) RTSP Port range : 554; 1024-65535 (default 554) PTZ Port range : 1024-65535 (default 5678) Multicast Port range : 1024-65535 (default 6688) Device Information Show the current device information, as shown below. www.avonic.eu...
  • Page 49 If you need the camera upgrade program, please contact Avonic. www.avonic.eu...

  • Page 50: Maintenance

    No operating in unstable lighting conditions, otherwise image will be flickering. ⚫ No operating close to powerful electromagnetic radiation, such as TV or radio ⚫ transmitters, etc. Troubleshooting Image No image ⚫ 1. Check whether the power cord is connected, voltage is OK, POWER lamp is light. www.avonic.eu...
  • Page 51 5. Web port is occupied by other devices. When modify IP address in an incorrect way cause the wrong IP address or forget ⚫ web passwords, press the IR remote controller "[*]+[＃]+[Manual]" to restore the default value (Default IP: 192.168.100.88 Default username: admin Default password: admin) www.avonic.eu...

  • Page 52: Control

    2. Check control cable is connected correctly. Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the recent manual or datasheet, look at the Avonic website.

  • Page 53: Visca Camera Return Command List

    8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF p = 0(low) - 7(high) Direct 8x 01 04 47 0p 0q pqrs: Zoom Position www.avonic.eu...
  • Page 54 Command Buffer z0 60 03 FF Indicates that two sockets Full are already being used(executing two commands) and the command could not be accepted when received. www.avonic.eu...
  • Page 55 Command Not z0 6y 41 FF Returned when a command Executable (y: Execution command cannot be executed due to Socket current conditions. For No. Inquiry command: example, when commands controlling the focus manually are received during auto focus. www.avonic.eu...

  • Page 56: Visca Camera Control Command List

    0q FF CAM_Bgain Reset 8x 01 04 04 00 FF Manual Control of B Gain 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p pq: B Gain www.avonic.eu...
  • Page 57 Manual 8x 01 04 50 03 FF CAM_NR(2D)Level 8x 01 04 53 0p FF p: NR Setting (0: Off, level 1 to 5) CAM_NR(3D)Level 8x 01 04 54 0p FF p: NR Setting (0: Off, level 1 to 8) www.avonic.eu...
  • Page 58 YYYY: Pan Position 01 01 FF Upright 8x 01 06 01 VV WW ZZZZ: Tilt Position 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF www.avonic.eu...
  • Page 59 AF Zone weight select Center 8x 01 04 AA 01 FF Bottom 8x 01 04 AA 02 FF CAM_ColorHue Direct 8x 01 04 4F 00 00 00 p: Color Hue setting 0h 0p FF (− 14 dgrees) to Eh www.avonic.eu...

  • Page 60: Visca Query Command List

    50 0p 0q 0r 0s FF pqrs: Focus Position CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode y0 50 03 FF OnePush mode www.avonic.eu...
  • Page 61 50 03 FF Manual Noise 3D CAM_Nosise2DLevel 8x 09 04 53 FF y0 50 0p FF Noise Reduction (2D) p: 0 to 5 CAM_Noise3DLevel 8x 09 04 54 FF y0 50 0p FF Noise Reduction (3D) p: 0 to 8 www.avonic.eu...
  • Page 62 8x 09 04 24 mm FF y0 50 0p 0p ff mm: Register No. (00 to FF) pp: Register Value (00 to FF) CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain setting 0h (60%) to Eh www.avonic.eu...
  • Page 63 NTSC y0 50 05 FF NTSC y0 50 06 FF NTSC y0 50 07 FF 1920x1080p60 y0 50 08 FF 1920x1080i50 y0 50 09 FF 1920x1080p25 y0 50 0A FF 1280x720p50 y0 50 0C FF y0 50 0D FF www.avonic.eu...
  • Page 64 50 00 FF Mode0 y0 50 02 FF Mode2 CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit CAM_DHotPixelInq 8x 09 04 56 FF y0 50 0q FF p: Dynamic Hot Pixel Setting (0: 0ff, level 1 www.avonic.eu...
  • Page 65 50 00 FF High yInq y0 50 01 FF Normal y0 50 02 FF CAM_LensBlockInq 8x 09 7E 7E 00 FF y0 50 0u 0u 0u 0u 00 uuuu: Zoom Position 00 0v 0v 0v 0v 00 0w vvvv: Focus Position www.avonic.eu...
  • Page 66 Picture Effect Mode CAM_EnlargementBl 8x 09 7E 7E 03 FF y0 50 00 00 00 00 00 p: AF sensitivity ockInq 00 00 0p 0q rr 0s 0t q: Picture flip 1:On, 0u FF 0:Off rr.6~3: Color Gain www.avonic.eu...
  • Page 67 (0(60%) to E(200%)) s: Flip 0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV t: 2~0: NR2D level u: Gain limit www.avonic.eu...

  • Page 68: Pelco-D Protocol Command List

    Value High Value Low Response Byte Byte Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Query Tilt Position 0xFF Address 0x00 0x5B Value High Value Low Response Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 www.avonic.eu...

  • Page 69: Pelco-P Protocol Command List

    0xAF Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Auto Focus 0xA0 Address 0x00 0x2B 0x00 0x01 0xAF Manual Focus 0xA0 Address 0x00 0x2B 0x00 0x02 0xAF www.avonic.eu...

  • Page 70: Visca Over Ip Commands

    Byte VISCA over IP commands The Avonic CM61-IP camera is implemented with a TCP server. The TCP port number is 5678 by default and can be altered in the WebGUI. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server. The server then parses and executes the PTZ command.
  • Page 71 IP do not necessarily have to be unique. Default settings: TCP port 5678 UDP port 1259 VISCA address The commands are as follow: 1. Camera return commands x= Camera Address y= Socket Number z = Camera Address + 8 All parameter values are in HEX www.avonic.eu...
  • Page 72 Socket No. Inquiry command: For example, when commands controlling the focus manually are received during auto focus. 2. Camera control commands x= Camera Address y= Socket Number z = Camera Address + 8 All parameter values are in HEX www.avonic.eu...
  • Page 73 Bright 81 01 04 39 0D FF Bright Mode(Manual control) CAM_Iris Reset 81 01 04 0B 00 FF Iris Setting (CAM_AE is set to Iris Priority) 81 01 04 0B 02 FF Down 81 01 04 0B 03 FF www.avonic.eu...
  • Page 74 81 01 04 3F 02 pp FF CAM_LR_Reverse 81 01 04 61 02 FF Image Flip Horizontal On/Off 81 01 04 61 03 FF CAM_PictureFlip 81 01 04 66 02 FF Image Flip Vertical On/Off 81 01 04 66 03 FF www.avonic.eu...
  • Page 75 81 01 04 A4 00 FF Single Command For Video Flip Flip-H 81 01 04 A4 01 FF Flip-V 81 01 04 A4 02 FF Flip-HV 81 01 04 A4 03 FF CAM_SettingSave Save 81 01 04 A5 10 FF Save Current Setting www.avonic.eu...
  • Page 76 Full Auto 90 50 03 FF Manual 90 50 0A FF Shutter priority 90 50 0B FF Iris priority 90 50 0D FF Bright CAM_ShutterPosIn 81 09 04 4A FF 90 50 00 00 0p 0q FF pq: Shutter Position www.avonic.eu...
  • Page 77 90 50 02 FF 1280x720p60 90 50 04 FF NTSC 90 50 05 FF NTSC 90 50 06 FF NTSC 90 50 07 FF 1920x1080p60 90 50 08 FF 1920x1080i50 90 50 09 FF 1920x1080p25 90 50 0A FF 1280x720p50 www.avonic.eu...
  • Page 78 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensitivi 81 09 04 A9 FF 90 50 00 FF High tyInq 90 50 01 FF Normal 90 50 02 FF www.avonic.eu...

  • Page 79: Appendix B Quick Start

    Step4. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) www.avonic.eu...

  • Page 80: Appendix C Dimensions

    Appendix C Dimensions All sizes are in mm Weight: 2.4 kg www.avonic.eu...
