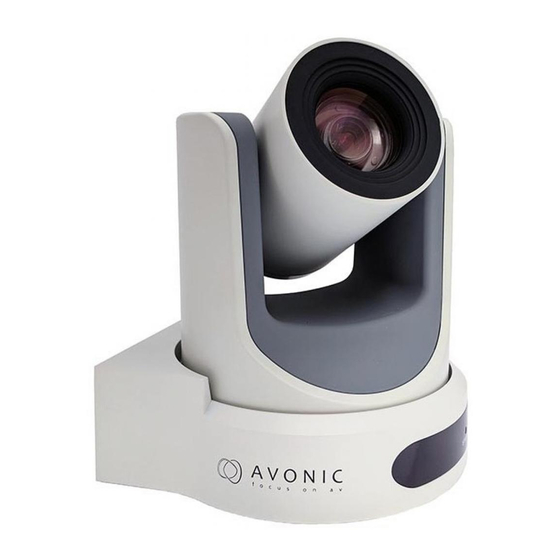

Avonic
CM60-IPU
Full HD Video USB 3.0 IP Camera
User Manual
Version 2.4
Join Avonic
Update notes:
linkedin.com/company/avonic
Special color settings for VC application

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM60-IPU and is the answer not in the manual?

Questions and answers

Related Manuals for Avonic CM60-IPU

Summary of Contents for Avonic CM60-IPU

  • Page 1 Avonic CM60-IPU Full HD Video USB 3.0 IP Camera User Manual Version 2.4 Join Avonic Update notes: linkedin.com/company/avonic Special color settings for VC application...

  • Page 2: Table Of Contents

    RC settings twitter.com/avonic facebook.com/avonic Contents Introduction ................6 Congratulations ........................... 6 Safety Notes ............................6 Package contents ..............7 Accessories ................7 Product Overview ..............9 Features ............................... 9 Main Unit ............................10 Input and Output Description ....................10 IR Remote Controller ........................12 Remote Control Shortcuts ............
  • Page 3 7. SETUP ..........................30 8. COMMUNICATION SETUP ....................31 9. RESTORE DEFAULT ....................... 32 Serial Communication Control ......................32 COM port settings ......................... 32 Command List ........................... 33 Network Function ..........................34 Operating Environment ......................34 Equipment Installation ......................34 www.avonic.eu...
  • Page 4 RTSP stream media player ....................48 IP Port parameters ........................ 48 Device Information ......................... 48 USB 3.0 ................49 Support OS ............................49 General software ..........................49 Maintenance ................ 51 Camera Maintenance ........................51 Unqualified Application ........................51 Troubleshooting ..............51 Image ..............................51 www.avonic.eu...
  • Page 5 VISCA Camera Control Command List ..................56 VISCA Query Command List ......................64 Pelco-D Protocol Command List ....................72 Pelco-P Protocol Command List ..................... 73 VISCA over IP commands ......................74 Appendix B Quick Start ............. 83 Appendix C Dimensions ............. 84 www.avonic.eu...

  • Page 6: Introduction

    Introduction Congratulations Thank you for purchasing the Avonic CM60-IPU USB3.0 HD PTZ Camera. Before beginning to operate this device, please read the manual in order to make sure the best performance is obtained. Save this manual for future reference. Safety Notes Installation and servicing should only be done by Qualified Service Personnel and •...

  • Page 7: Package Contents

    CM60-IP 1 pc Power Supply 12V/A CM-PSU 1 pc Remote Control CM-RC 1 pc RS232 9-pin female to 8-pin male CM-RS232 1 pc USB 3.0 CM-USB3 Accessories Wall mount in White and Black Avonic SKU : CM-WMW : CM-WMB www.avonic.eu...
  • Page 8 Ceiling mount in White and Black Avonic SKU : CM-CMW : CM-CMB www.avonic.eu...

  • Page 9: Product Overview

    The cameras are equipped with a Panasonic CMOS sensor combined with a glass high-quality glass lens with 20x optical zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ controller or any third party controller that supports VISCA, Pelco-P/D protocols.

  • Page 10: Main Unit

    "Freeze During Preset" function, can masked image when calling the preset. • Unique Color Settings Optimized for video conferencing. • Main Unit Input and Output Description 1. Audio LINE IN Interface (for audio embedding in IP stream only) 2. CVBS Interface 3. System select switch www.avonic.eu...
  • Page 11 4. RS485 interface 5. RS232 IN interface 6. RS232 OUT interface 7. Network Interface 8. HDMI Interface 9. USB 3.0 video capture device output 10. USB2.0 (update only) 11. DC 12V jack 12. Power switch www.avonic.eu...

  • Page 12: Ir Remote Controller

    Setting a corresponding numeric key preset position 5. Pan-Tilt control Buttons Pressing the Pan-Tilt back to the middle position 6. Back buttons Press the OSD menu return to the superior. 7. Zoom Buttons Slow Zoom: Zoom In [+] or Zoom Out [-] slowly www.avonic.eu...
  • Page 13 12. Set Camera IR Address Buttons [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. www.avonic.eu...

  • Page 14: Remote Control Shortcuts

    ON / OFF button. To cancel this function, press the backlight ON / OFF button. 17. Pan/Tilt reset Preset Pan/Tilt self-test. Remote Control Shortcuts [*]+[＃]+[1]: OSD menu default in English [*]+[＃]+[4]: Show IP address and network settings [*]+[＃]+[6]: recover the defaults www.avonic.eu...

  • Page 15: Remote Control Ir Channel Settings

    Remote Control IR channel Settings [*]+[＃]+[F1]: The camera is set to IR channel 1. [*]+[＃]+[F2]: The camera is set to IR channel 2. [*]+[＃]+[F3]: The camera is set to IR channel 3. [*]+[＃]+[F4]: The camera is set to IR channel 4. www.avonic.eu...

  • Page 16: Installation

    Installation Connection Diagram System Select Switch Setting of the system select switch. The option of video format: VIDEO SYSTEM 1080p60 720p30 1080p50 720p25 www.avonic.eu...

  • Page 17: Power Adapter

    After changing the switch, you need to restart the camera to take effect. b. 720 p30 and 720 p25 only under the HDMI output. Power adapter This equipment is equipped with a 12V/2A DC power supply. Insert the power supply according to the requirements, turn on the power switch. www.avonic.eu...

  • Page 18: Rs232 Interface

    RS232-IN of the first camera in the serial circuit. The RS232-OUT of the first camera is connected to the RS232-IN of the second camera and so on. In the OSD menu under Communication Setup, the Protocol is Auto / VISCA, and Net mode is set to Serial. www.avonic.eu...

  • Page 19: Rs485 Network Connection Diagram

    120 Ω impedance resistor. The maximum length of the bus is 1200m. The maximum distance from the bus to the camera or controller is 5 meters. The cameras are connected with the 2-pin Phoenix connector. In the OSD menu under Communication Setup, Net mode is set to Paral. www.avonic.eu...
  • Page 20 www.avonic.eu...

  • Page 21: Operation

    Operation OSD Menu 9. The OSD menu can be accessed by the Remote Control or an Avonic PTZ controller. In the following pages, the navigating is described for using the IR Remote Control. Menu Tree www.avonic.eu...
  • Page 22 www.avonic.eu...

  • Page 23: Menu

    Press [MENU] button to display the main menu on the normal screen, using arrow button to move the cursor to the item to be set. Press the [HOME] button to enter the corresponding sub-menu. MENU Exposure Color Image P/T/Z Noise Reduction Setup Communication Setup Restore Default [Home] Enter [Menu] Exit www.avonic.eu...

  • Page 24: Exposure

    Set the backlight compensation, Change Value Optional items: On, Off (Effective only in Auto mode ) [Menu] Back Gain Limit Maximum gain limit. Optional items: 0 ~ 15 (Effective only in Auto, AAE ,Bright mode) Meter Optional Items: Average, Center, Smart, Top www.avonic.eu...
  • Page 25 F8.0, F9.6, F11.0, Close（Effective only in Manual, AAE mode） Shutter Shutter value. Optional items: 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 (Effective only in Manual, SAE mode) Gain Optional items: 0 ~ 7 (Effective only in Manual) www.avonic.eu...

  • Page 26: Color

    Optional items: 0~255（Effective only in Manual mode） [Menu] Back Blue gain Optional items: 0~255（Effective only in Manual mode） RG Tuning Red gain fine-tuning Optional items: -10 ~ +10（Effective only in Auto, One Push, VAR Mode） BG Tuning Blue gain fine-tuning www.avonic.eu...

  • Page 27: Image

    Optional items: Normal, High, Low. (Effective only in Auto Mode) 4. IMAGE IMAGE Luminance Contrast Sharpness Flip-H Flip-V B&W-Mode Gamma Default Luminance Brightness adjustment. Style Norm Optional items: 0 ~ 14 Contrast Contrast adjustment Optional items: 0 ~ 14 Select Item Change Value www.avonic.eu [Menu] Back...
  • Page 28 Optional items: On, Off Gamma Optional items: Default, 0.45, 0.5, 0.56, 0.63 Style Optional items: Norm, Clarity (LED), Clarity, Bright, Soft, 5S, Q-Style LDC: Lens Distortion Correction Optional items: On, Off. 1080p60 / 1080p50 not support the lens distortion. www.avonic.eu...

  • Page 29: P/T/Z

    Optional items: Low, Normal, High [Menu] Back L/R Set Optional items: STD, REV Display info On, Off Image Freeze Optional items: On, Off Digital Zoom On, Off Call Preset Speed 1 ~ 24 Fast Zoom Optional items: On, Off www.avonic.eu...

  • Page 30: Noise Reduction

    Dynamic bad points, Optional items: Off, 1 ~ 5, (Removed in newer firmware versions) 7. SETUP SETUP Language DVI Mode Lens Type1 Auto scan shoot Off Language menu language, Select Item Optional items: EN, Chinese, Russian Change Value www.avonic.eu [Menu] Back...

  • Page 31: Communication Setup

    Optional items: 1 ~ 7 Change Value V_AddrFix default set to 1. [Menu] Back Net Mode Optional Items: Serial, for RS232 daisy chaining wiring (VISCA only) Paral, for RS485 parallel wiring P_D_Address PELCO-D protocol Optional items: 0 ~ 254 www.avonic.eu...

  • Page 32: Restore Default

    In default working mode, the camera is able to connect to a VISCA controller with RS232C serial interface. RS232 Communication Control: The camera can be controlled via RS232 ,the parameters of RS232C are as follows: Baud rate: 2400/4800/9600 bit/s. • Start bit: 1 bit. • www.avonic.eu...

  • Page 33: Command List

    (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) Then the users can control the camera with commands in the command list. Command List See Appendix A www.avonic.eu...

  • Page 34: Network Function

    2. The orange light of ethernet port lit on, green light flashing, and the physical connection finished. Connection ways between IP camera and computer, as picture 1.1 and picture 1.2 shown: Picture 1.1 connect by ethernet cable Picture 1.2 Connect by router /interchanger www.avonic.eu...

  • Page 35: Lan Access And Control

    To find camera IP, press * and # and 4 on remote controller one by one, IP address will be shown on screen. Change IP address: On web control page, find "Network"--->Change IP---->Click "Apply"----> Restart camera Visit/Access IP Camera Input http://192.168.100.88 to web browser, a login window pop up, input login name: admin password: admin www.avonic.eu...
  • Page 36 A window like the following will appear: www.avonic.eu...

  • Page 37: Tcp/Udp Control

    TCP/UDP Control The Avonic IP camera is implemented with a TCP server inside. The default TCP port number is 5678. This number can be changed in the WebGUI in the Network Menu. Once the connection between client and server is set up, the client will be able to send VISCA PTZ commands to the server.
  • Page 38 3) Full screen switch button. PTZ Setup PTZ direction control box: Up, down, left, right, home oblique button as above Rate: Vertical speed can be chosen as 1 ~ 24, horizontal direction at the rate of 1 ~ 20. www.avonic.eu...
  • Page 39 Set/Call: When PTZ turn to expected position, can set up a number of preset that user want. click "Set" button, when PTZ turn to other position, click "Call" button, PTZ turn back to preset position. Language selection Available options are: Chinese/English/Russian www.avonic.eu...

  • Page 40: Video

    : First stream support 1920x1080, 1280x720,1024x576, Second stream support 640x360,720x576, 320x180 Bit Rate : User can assign bit flow/stream, Frame rate : User can specify the size of the frame rate I key frame interval : Set interval between 2 I frames www.avonic.eu...
  • Page 41 I key frame interval: Set interval between 2 I frame, the bigger interval is, the response will be lower from viewing window. Bit Rate control : Constant bit rate Variable bit rate Fluctuate level Restrain the fluctuation magnitude of variable rate, grade 1 ~ 6 www.avonic.eu...

  • Page 42: Image Setup

    Saturation 0~14, slider control, on the right shows the corresponding numerical. Default 3. Contrast Contrast0~14, slider control, on the right shows the corresponding numerical. Default 6. Sharpness Sharpness0~15, slider control, on the right shows the corresponding numerical. Default 1. www.avonic.eu...

  • Page 43: Audio Setup

    Button Adjusting the parameters, press "apply" button to save, press "cancel" button to cancel the adjustment of the parameters, press "default" button obtain the default value. Audio Setup Audio Switch (on off) Audio Type (AAC) Sample rate (44.1K 48K) www.avonic.eu...

  • Page 44: System Setting

    Work Mode RTSP Reboot Click the "Reboot" button, system restart. User and password The user can modify the password (letters and numbers only) Apply / Cancel Modify password and click the "apply" button to the login page, press "cancel" button to www.avonic.eu...
  • Page 45 www.avonic.eu...

  • Page 46: Network Setting

    Network Setting Lan Settings www.avonic.eu...
  • Page 47 Setting the camera stream, can set up two stream, in the two stream selection control code stream of "On", "Off", "Video", "Audio", etc. RTSP Setting Setting IP camera RTST protocol of "On", "Off". ONVIF Setting Setting the ONVIF protocol and ONVIF authorization "On", "Off". Multicast Setting www.avonic.eu...

  • Page 48: Rtsp Stream Media Player

    HTTP Port range : 80; 1024-65535 (default 80) RTSP Port range : 554; 1024-65535 (default 554) PTZ Port range : 1024-65535 (default 5678) Multicast Port range : 1024-65535 (default 6688) Device Information Show the current device information, as shown below. www.avonic.eu...

  • Page 49: Usb 3.0

    Support OS Windows XP/2003/VISTA/7/8 and another system, Linux, Mac OS General software Windows: AMCAP, VLC, Debut Video Capture, etc. Linux: V412 software driver and VLC media player, etc. Mac OS: FaceTime. iChat, Photo Booth and Debut Video Capture, etc. www.avonic.eu...
  • Page 50 www.avonic.eu...

  • Page 51: Maintenance

    No operating in unstable lighting conditions, otherwise image will be flickering. ⚫ No operating close to powerful electromagnetic radiation, such as TV or radio ⚫ transmitters, etc. Troubleshooting Image No image ⚫ 1. Check whether the power cord is connected, voltage is OK, POWER lamp is light. www.avonic.eu...
  • Page 52 5. Web port is occupied by other devices. When modify IP address in an incorrect way cause the wrong IP address or forget ⚫ web passwords, press the IR remote controller "[*]+[＃]+[Manual]" to restore the default value (Default IP: 192.168.100.88 Default username: admin Default password: admin) www.avonic.eu...

  • Page 53: Control

    2. Check control cable is connected correctly. Contact For any questions or suggestions, contact the reseller or the local distributor of Avonic. Find the local distributor on the website of Avonic. For the recent manual or datasheet, look at the Avonic website.

  • Page 54: Visca Camera Return Command List

    8x 01 04 07 03 FF Tele(Variable) 8x 01 04 07 2p FF p = 0(low) - 7(high) Wide(Variable) 8x 01 04 07 3p FF Direct 8x 01 04 47 0p 0q pqrs: Zoom Position 0r 0s FF Command Function Command Package Note www.avonic.eu...
  • Page 55 Command Canceled z0 6y 04 FF Returned when a command (y: Socket No.) which is being executed in a socket specified by the cancel command is canceled. www.avonic.eu...

  • Page 56: Visca Camera Control Command List

    No. Inquiry command: example, when commands controlling the focus manually are received during auto focus. VISCA Camera Control Command List Command Function Command Package Notes CAM_Focus Stop 8x 01 04 08 00 FF Far(Standard) 8x 01 04 08 02 FF www.avonic.eu...
  • Page 57 One Push WB Trigger CAM_RGain Reset 8x 01 04 03 00 FF Manual Control of R Gain 8x 01 04 03 02 FF Down 8x 01 04 03 03 FF Direct 8x 01 04 43 00 00 pq: R Gain www.avonic.eu...
  • Page 58 8x 01 04 2A 0p 00 CAM_Iris Reset 8x 01 04 0B 00 FF Iris Setting 8x 01 04 0B 02 FF Down 8x 01 04 0B 03 FF Direct 8x 01 04 4B 00 00 pq: Iris Position www.avonic.eu...
  • Page 59 8x 01 04 4E 00 00 pq: ExpComp 0p 0q FF Position CAM_BackLight 8x 01 04 33 02 FF Back Light 8x 01 04 33 03 FF Compensation On/Off CAM_NR(2D)Mode Auto 8x 01 04 50 02 FF ND2D Auto/Manual www.avonic.eu...
  • Page 60 8x 01 04 42 00 00 pq: Aperture Gain 0p 0q FF CAM_PictureEffect 8x 01 04 63 00 FF Picture Effect Setting B&W 8x 01 04 63 04 FF CAM_Memory Reset 8x 01 04 3F 00 pp pp: Memory Number(=0 to 127) www.avonic.eu...
  • Page 61 VV: Pan speed 0x01 03 01 FF (low speed) to 0x18 Down 8x 01 06 01 VV WW (high speed) 03 02 FF Left 8x 01 06 01 VV WW WW: Tilt speed 0x01 01 03 FF (low speed) to 0x14 www.avonic.eu...
  • Page 62 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF Home 8x 01 06 04 FF Reset 8x 01 06 05 FF Pan_tiltLimitSet LimitSet 8x 01 06 07 00 0W W: 1 UpRight 0: 0Y 0Y 0Y 0Y 0Z 0Z DownLeft YYYY: Pan www.avonic.eu...
  • Page 63 8x 01 04 A5 10 FF Save Current Setting CAM_Iridix Direct 8x 01 04 A7 00 00 pq: Iridix Position 0p 0q FF CAM_AWBSensitivit y High 8x 01 04 A9 00 FF High Normal 8x 01 04 A9 01 FF Normal www.avonic.eu...

  • Page 64: Visca Query Command List

    CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF Auto y0 50 01 FF Indoor mode y0 50 02 FF Outdoor mode www.avonic.eu...
  • Page 65 Auto Noise 2D y0 50 03 FF Manual Noise 3D CAM_Nosise2DLevel 8x 09 04 53 FF y0 50 0p FF Noise Reduction (2D) p: 0 to 5 CAM_Noise3DLevel 8x 09 04 54 FF y0 50 0p FF Noise Reduction (3D) www.avonic.eu...
  • Page 66 8x 09 04 24 mm FF y0 50 0p 0p ff mm: Register No. (00 to FF) pp: Register Value (00 to FF) CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain setting www.avonic.eu...
  • Page 67 50 04 FF NTSC y0 50 05 FF NTSC y0 50 06 FF NTSC y0 50 07 FF 1920x1080p60 y0 50 08 FF 1920x1080i50 y0 50 09 FF 1920x1080p25 y0 50 0A FF 1280x720p50 y0 50 0C FF www.avonic.eu...
  • Page 68 50 02 FF Mode2 CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit CAM_DHotPixelInq 8x 09 04 56 FF y0 50 0q FF p: Dynamic Hot Pixel Setting (0: 0ff, level 1 to 6) www.avonic.eu...
  • Page 69 Color Hue setting 0h (− 14 dgrees) to Eh ( +14 degrees CAM_AWBSensitivit 8x 09 04 A9 FF y0 50 00 FF High yInq y0 50 01 FF Normal y0 50 02 FF Command Command Package Return Package Note www.avonic.eu...
  • Page 70 Exp Comp. Position CAM_OtherBlockInq 8x 09 7E 7E 02 FF y0 50 0p 0q 00 0r 00 p.bit0: Power 1:On, 00 00 00 0:Off 00 00 00 00 00 FF q.bit2: LR Reverse 1:On, 0:Off r.bit3~0: Picture Effect Mode www.avonic.eu...
  • Page 71 0q rr 0s 0t 0u FF flip(1:On, 0:Off) rr.bit6~3: Color Gain (0h(60%) to Eh(200%)) s: Flip(0: Off, 1:Flip-H, 2:Flip-V, 3:Flip-HV) t: bit2~0: NR2D level u: Gain limit Remark： 1.[x] in the above list refer to the camera address, [y] = [x + 8] www.avonic.eu...

  • Page 72: Pelco-D Protocol Command List

    Value High Value Low Response Byte Byte Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 Query Tilt Position 0xFF Address 0x00 0x5B Value High Value Low Response Byte Byte Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 www.avonic.eu...

  • Page 73: Pelco-P Protocol Command List

    0xAF Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Auto Focus 0xA0 Address 0x00 0x2B 0x00 0x01 0xAF Manual Focus 0xA0 Address 0x00 0x2B 0x00 0x02 0xAF www.avonic.eu...

  • Page 74: Visca Over Ip Commands

    PTZ command. The Avonic IP Camera has also implemented a UDP server. The UDP port number is fixed on 1259. Once the connection between client and server is set up, the client will be able to send PTZ commands to the server.
  • Page 75 IP do not necessarily have to be unique. Default settings: TCP port 5678 UDP port 1259 VISCA address The commands are as follow: 1. Camera return commands x= Camera Address y= Socket Number z = Camera Address + 8 All parameter values are in HEX www.avonic.eu...
  • Page 76 Socket No. Inquiry command: For example, when commands controlling the focus manually are received during auto focus. 2. Camera control commands x= Camera Address y= Socket Number z = Camera Address + 8 All parameter values are in HEX www.avonic.eu...
  • Page 77 Bright 81 01 04 39 0D FF Bright Mode(Manual control) CAM_Iris Reset 81 01 04 0B 00 FF Iris Setting (CAM_AE is set to Iris Priority) 81 01 04 0B 02 FF Down 81 01 04 0B 03 FF www.avonic.eu...
  • Page 78 81 01 04 3F 02 pp FF CAM_LR_Reverse 81 01 04 61 02 FF Image Flip Horizontal On/Off 81 01 04 61 03 FF CAM_PictureFlip 81 01 04 66 02 FF Image Flip Vertical On/Off 81 01 04 66 03 FF www.avonic.eu...
  • Page 79 81 01 04 A4 00 FF Single Command For Video Flip Flip-H 81 01 04 A4 01 FF Flip-V 81 01 04 A4 02 FF Flip-HV 81 01 04 A4 03 FF CAM_SettingSave Save 81 01 04 A5 10 FF Save Current Setting www.avonic.eu...
  • Page 80 Full Auto 90 50 03 FF Manual 90 50 0A FF Shutter priority 90 50 0B FF Iris priority 90 50 0D FF Bright CAM_ShutterPosIn 81 09 04 4A FF 90 50 00 00 0p 0q FF pq: Shutter Position www.avonic.eu...
  • Page 81 90 50 02 FF 1280x720p60 90 50 04 FF NTSC 90 50 05 FF NTSC 90 50 06 FF NTSC 90 50 07 FF 1920x1080p60 90 50 08 FF 1920x1080i50 90 50 09 FF 1920x1080p25 90 50 0A FF 1280x720p50 www.avonic.eu...
  • Page 82 90 50 00 00 00 0p FF p: Color Hue setting 0h (− 14 degrees) to Eh ( +14 degrees) CAM_AWBSensitivi 81 09 04 A9 FF 90 50 00 FF High tyInq 90 50 01 FF Normal 90 50 02 FF www.avonic.eu...

  • Page 83: Appendix B Quick Start

    Step4. Pan-Tilt will rotate to the maximum position of top right after the camera started, then it return to the center, the process of initialization is finished. (Note: If the position preset 0 has been stored, the position preset 0 will be called up after initialization) www.avonic.eu...

  • Page 84: Appendix C Dimensions

    Appendix C Dimensions All sizes are in mm Weight: 2.4 kg www.avonic.eu...
