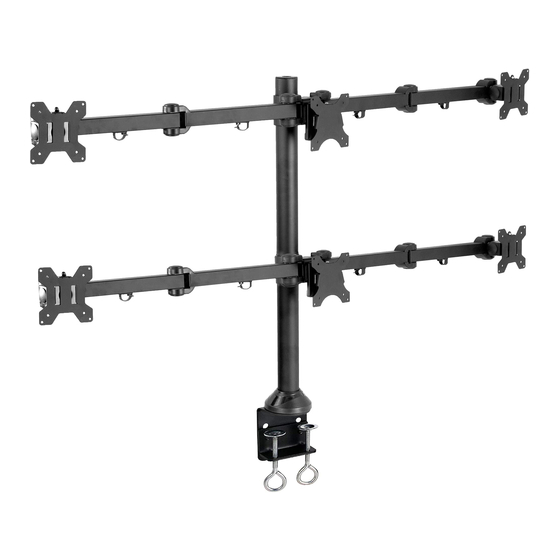

Hex Monitor Desk Mount
Instruction Manual
SKU: STAND-V006
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v006
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
309-278-5303
Chat live with an agent!
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V006
Summary of Contents for Vivo STAND-V006
- Page 1 Hex Monitor Desk Mount Instruction Manual SKU: STAND-V006 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v006 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (10kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Weighted Base Installation Attach clamp brace (b2) to pole (a) with clamp brace bolts (h). Attach clamp (b1) to clamp brace at desired height using M10x15 bolts (i) with Allen wrench (t).
- Page 4 STEP 1 (Continued) OPTION C: Self-Drilled Grommet Base Installation Drill a 3/8” (10mm) diameter hole at desired location. Apply foam pad (o) to base of pole (a). Mount pole to grommet hole in desk using M10 bolt (k), spring washer (n), M10 washer (m) and support plate (l).
- Page 5 STEP 3 Install wire clips (x) on arms (d1,d2). Install arms on pole (a) at desired height using M8x10 bolts (j) with Allen wrench (t), making sure wire clips are facing down. d1,d2 STEP 4 4A: Side VESA Plates For monitors with flat back attach VESA plates (v1) with thumb screws (p). For monitors with curved back attach VESA plates (v1) with screws (q) and spacers (r).
- Page 6 STEP 5 5A: Side VESA Plates Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with nut (w1). d1,d2 5B: Center VESA Plates Slide monitor onto the head of arm (d2) as shown in the diagram. Secure with screw (w2). Slide top monitor onto mount in same fashion.
- Page 7 STEP 7 Adjust the height of Center Monitors: Turn the bolt counter-clockwise to lower the center monitors. Turn the bolt clockwise to raise the center monitors. Use allen wrench (t). Adjust the height of the Side Monitors: Remove nut (w1) and turn the bolt counter-clockwise to raise the monitor. Use allen wrench (t).
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
