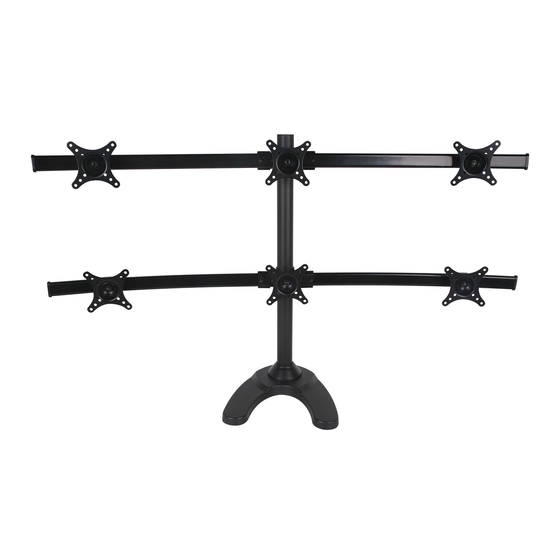

Hex Monitor Desk Stand
Instruction Manual
SKU: STAND-V006F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v006f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V006F
Summary of Contents for Vivo STAND-V006F
- Page 1 Hex Monitor Desk Stand Instruction Manual SKU: STAND-V006F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v006f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install the pole (A) to the weighted base (B) using M6x29 bolts (J). Tighten with a Phillips screwdriver and install decorative cover (K).
- Page 4 STEP 2 Assemble the curved arms (D) and arm connect brackets (E) to pole mount brackets (F) using M6x25 bolts (G) and M6 washers (H). Tighten with the medium Allen wrench (L). Carefully slide assembled monitor arms down onto the pole, making sure center monitor hooks on arm connect brackets are facing up, and secure with M8x10 bolts (Q) using the medium Allen wrench (L).
- Page 5 STEP 3 OPTION A: Flat Back Monitor Attach the VESA brackets (C1, C2) to the monitors using M4x12 thumb bolts (N) with M4 washers (M). NOTE: Hand tighten screws to avoid stripping the plastic screw heads. OPTION B: Curved Back Monitor Attach the VESA brackets (C1, C2) to the monitors using M4 spacers (P) and M4x30 bolts (O) with M4 washers (M).
- Page 6 STEP 4 Hang the center monitors onto the hooks of arm connect brackets. Secure with the M4x16 bolts with washers (S) and tighten with a Phillips screwdriver. Slide the side monitors onto the curved arms and tighten knobs. Press arm caps (I) onto ends of curved arms. Plasti c Knob Tighten the grub screw on the back of each monitor joint using the small Allen wrench (L) to fix tilt angle of monitors.
- Page 7 STEP 5 To adjust monitor height, slightly loosen the M4x16 bolts on the sides of each bracket and turn the screw on top using a Phillips screwdriver. Tighten the M4x16 bolts after adjustment. Bolt Manage cables using the wire clips. Remove the split cap from the pole and feed cables through, pulling ends out from the opening in back.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
