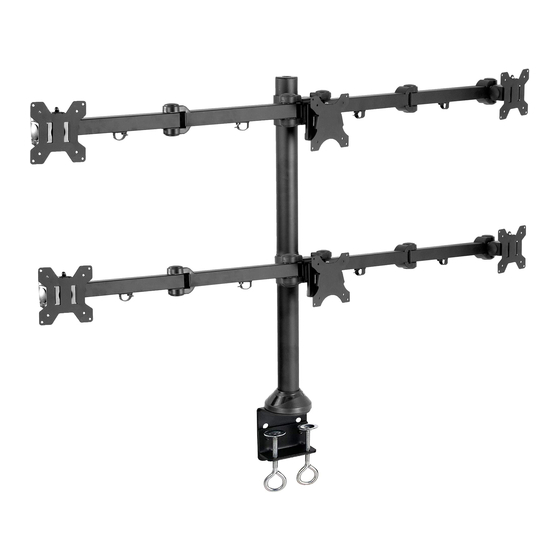

Hex Monitor Desk Mount
Instruction Manual
SKU: STAND-V006
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v006
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V006
Summary of Contents for Vivo STAND-V006
- Page 1 Hex Monitor Desk Mount Instruction Manual SKU: STAND-V006 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v006 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (10kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Base Installation Attach Clamp Brace (B2) to Pole (A) with Clamp Brace Bolts (S-A). Attach Clamp (B1) to clamp brace at desired height using M10x15 Bolts (S-B) with Allen Wrench (T-A).
- Page 4 STEP 2 Install Wire Clips (J) on Arms (D). Install Arms (D) on Pole (A) at desired height using M8x10 Bolts (S-C) with Allen Wrench (T-A), making sure Wire Clips (J) are facing down. STEP 3 3A: Side VESA Plates For monitors with flat back attach VESA Plates (G) with Thumb Screws (S-G).
- Page 5 STEP 4 4A: Side VESA Plates Slide monitor onto the head of Arms (D) as shown in the diagram. Secure with Nut (I). 4B: Center VESA Plates Slide monitor onto the head of Arms (D) as shown in the diagram. Secure with M4x6 Screw (S-K). Slide top monitors onto mount in same fashion.
- Page 6 STEP 5 Remove plastic cover and use Wrench (T-B) to tighten the nut if the tilt angle cannot be fixed. Fasten the set screws on the center monitors to fix the tilt angle using Allen Wrench (T-A). Fix the tilt angle Set Screw STEP 6 Adjust the height of Center Monitors: Turn the bolt counter-clockwise to lower the center monitors.
- Page 7 STEP 7 To adjust arm joint tension, remove the monitor arm cover and turn the screw underneath with the Allen Wrench (T-A). STEP 8 Use Wire Clips (J) to help manage wires.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
