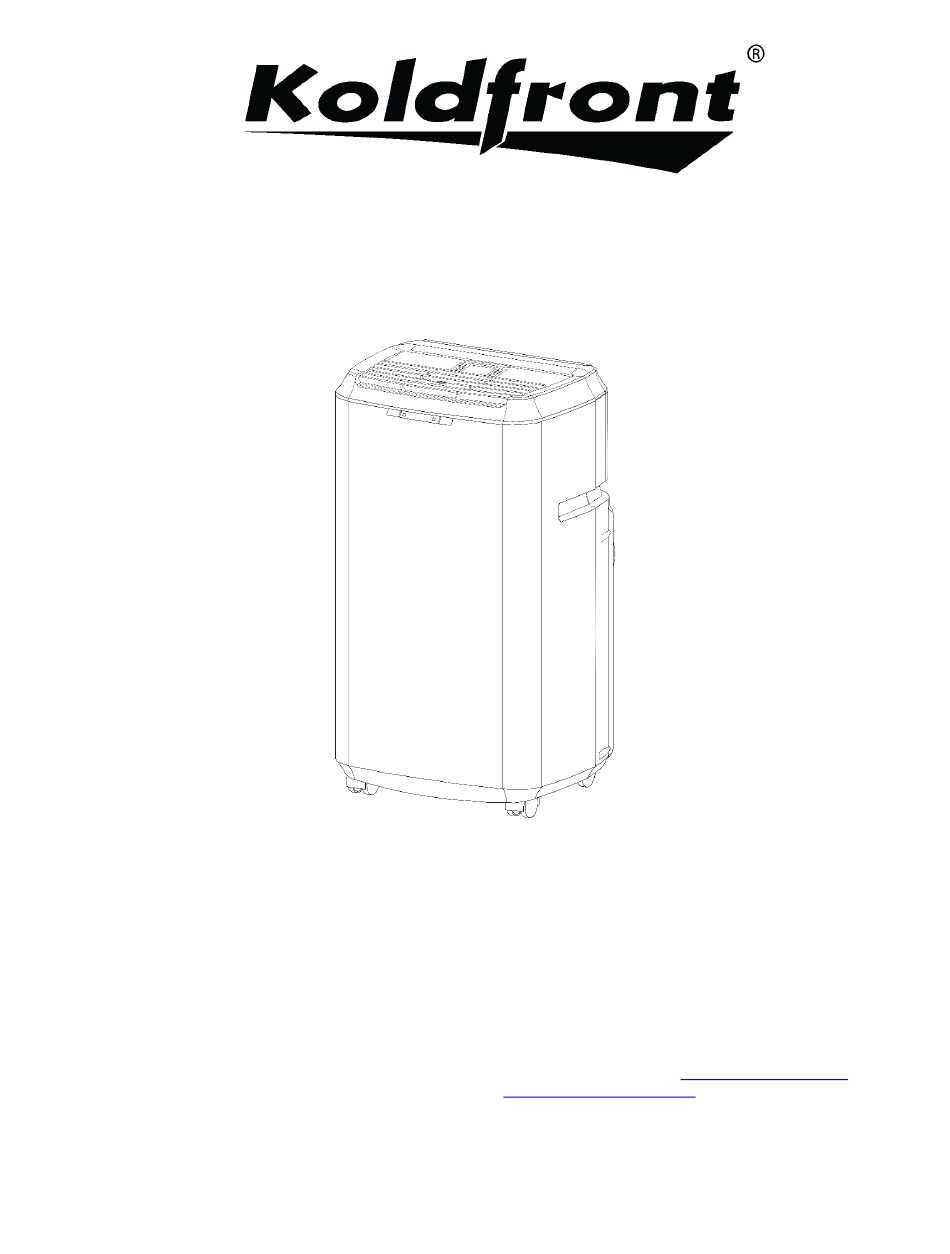

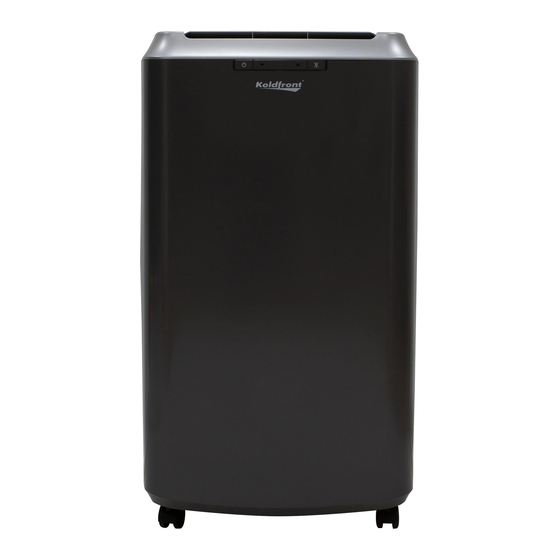

- Page 1 Portable Air Conditioner PACI14020CGY Owner’s Manual For more information on other great Koldfront or EdgeStar products on the web, go to http://www.edgestar.com To use the self-diagnostic tool, go to https://support.edgestar.com V2.2-07262019...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the Koldfront Portable Air Conditioner and / or injury to the user. This portable air conditioner is not intended for use by children. Children should be supervised to ensure that they do not play with this product. -
Page 3: Operation Of Safety Plug
Operation of Safety Plug Note: Electrical products should not be disposed of with household waste. Please contact your local recycling center for more information about how to recycle electronic waste. Your portable air conditioner is supplied with a Leakage-Current Detection and Interruption (LCDI) safety plug. -
Page 4: Table Of Contents
Table of Contents Important Safety Information ....................ii Operation of Safety Plug ......................iii Introduction ..........................1 Parts Identification ........................2 Front View ..........................2 Back View ..........................2 Window Kit Installation Instructions ..................3 Preparations for Installing the Window Kit ................3 Window Kit Parts List ...................... - Page 5 First Time Operating Instructions: Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you need to move or ship the appliance in the future. Allow the unit to stand for at least 24 hours before you use it;...
-
Page 6: Introduction
Introduction Thank you for purchasing this Koldfront by EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 7: Parts Identification
Parts Identification Note: The LCD display on top of this model is the remote control and is removable. Front View Back View Caution: Make sure the drain plug is firmly installed before using the unit to prevent leaking. -
Page 8: Window Kit Installation Instructions
Window Kit Installation Instructions Preparations for Installing the Window Kit You must vent your portable air conditioner when running it in cooling mode or heat mode (certain models). Your unit includes a window exhaust kit that can be used to vent the unit out of a window. Before you begin, make sure you have all the parts necessary for installation. -
Page 9: Installation Location
Installation Location If you have multiple windows, choose one that is near an electrical outlet that will be able to provide sufficient power to your unit. See the power requirements listed on the product label printed on the side, or on the back of your portable air conditioner. Your window kit can be installed on a horizontal or vertical sliding window as shown in the following pictures: Note: Exhaust Covers may be attached to the Grated Adapters. -
Page 10: Installing The Window Plates
2. Secure the grated adapters by fastening the screws from the flat side of the window kit plate to the holes on the grated adapter. Installing the Window Plates 3. Open your window and place the window kit on the window sill with the grooved side facing outward. -
Page 11: Attaching The Duct Connectors To The Exhaust Hose
Attaching the Duct Connectors to the Exhaust Hose 5. Attach the connectors to the hose. A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops. 6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. Connecting the Duct Connector to the Unit 7. -
Page 12: Connecting The Duct Connector To The Grated Adapter
Connecting the Duct Connector to the Grated Adapter 8. Align the slots on the duct connector to the tabs on the grated adapter and snap the duct connector into place. After you have installed the exhaust hose and window kit, you can plug in your portable air conditioner and start using it. -
Page 13: Draining The Unit
The WATER indicator will light up on the Control Panel. Drainage Options Your Koldfront portable air conditioner comes with several different options for draining the water accumulated during operation. The most common will be the self-evaporative mode. The unit will do this automatically. - Page 14 Misting Drain Your unit also includes the unique misting drain option. If a drain is not present this option will allow the unit to remove the excess moisture out of the exhaust hose through a mist nozzle. The mist nozzle MUST be setup in the exhaust hose and NOT the intake hose. In order to run the misting drain option you will need to do the following: 1.
- Page 15 4. Attach the mist nozzle to the grated adapter. Make sure the mist nozzle is directed to mist outside of the window and not back into the exhaust hose. The unit will now automatically mist any excess water to the outside. Installing the mist system in the exhaust hose ensures all of the moisture is pushed completely away from the window.
-
Page 16: Operation
Operation Remote Control Overview Button Function This button powers the unit on or off. Power This button sets the fan speed. The Automatic, High, Medium, or Low Fan Speed indicator will appear depending on the mode you set. This button sets the mode. The Automatic, Cool, Dehumidify, or... -
Page 17: Installing The Batteries
Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the correct direction. 3. Slide the cover back on. Caution: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month or longer. -
Page 18: Operating The Remote Control
Operating the Remote Control Power Use the Power button to turn the portable air conditioner on and off. By default when you first use the power button, the unit will begin to operate in cooling mode and the front panel will be illuminated in blue. The unit will remember the last used mode / settings if you shut down and restart. - Page 19 Fan Only Mode Fan Only mode is used to circulate the air in your room. No temperature setting is needed. The front panel lights will be green. To operate the unit in Fan Only mode: 1. Make sure the power cord is plugged into a power outlet. 2.
- Page 20 Clock Clock button is used to set the Clock. To set the Clock: 1. Press and hold the Clock button until the Clock indicator starts blinking. 2. Set the time by using the Up and Down buttons. Holding down the buttons longer than 1 second will change the time in fast mode.
-
Page 21: Front Panel Lights And Controls
Front Panel Lights and Controls Front Panel Lights Your portable air conditioner has a front panel that lights up different colors depending on the mode it is running in. Cooling mode will display a blue light. Dehumidify mode will display a yellow light. Fan mode will display a green light. -
Page 22: Cleaning The Pre-Filter
Cleaning the Pre-Filter To clean the pre-filter, follow the steps below: 1. Power off the unit and remove the pre-filter. 2. Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt, then rinse thoroughly under lukewarm running water (below 104°F). You may use a mild soap and water solution if needed. -
Page 23: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. ISSUE POSSIBLE CAUSE SOLUTION My air conditioner is not The unit is not receiving power. Make sure the unit is plugged in. functioning at all. The LCDI power cord is tripped. Press the Reset button on the LCDI cord. - Page 24 ISSUE POSSIBLE CAUSE SOLUTION My air conditioner is not cooling The unit is not operating in Set the unit to be in cooling mode, at all. cooling mode. and lower the set temperature. The compressor is not on. The compressor may take up to 3 minutes to turn on, or longer if it is too warm.
-
Page 25: Specifications
Specifications DESCRIPTION OF PRODUCT Portable Air Conditioner MODEL PACI14020CGY VOLTAGE / FREQUENCY AC 115 V / 60 Hz INPUT POWER 1250 W CURRENT 10.8 A COOLING CAPACITY (SACC) 8500 BTU COOLING CAPACITY (ASHRAE) 14000 BTU COLOR Silver and Grey COOLANT... -
Page 26: New Portable Air Conditioner Btu's
New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix CC. -
Page 27: Edgestar Limited Warranty
EdgeStar Limited Warranty One (1) Year Parts & Ninety (90) Days Labor This product is warranted by EdgeStar to be free from defective workmanship and materials, subject to any conditions set forth as follows: WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility.
