Summary of Contents for Koldfront PACI14020HGY
Page 1

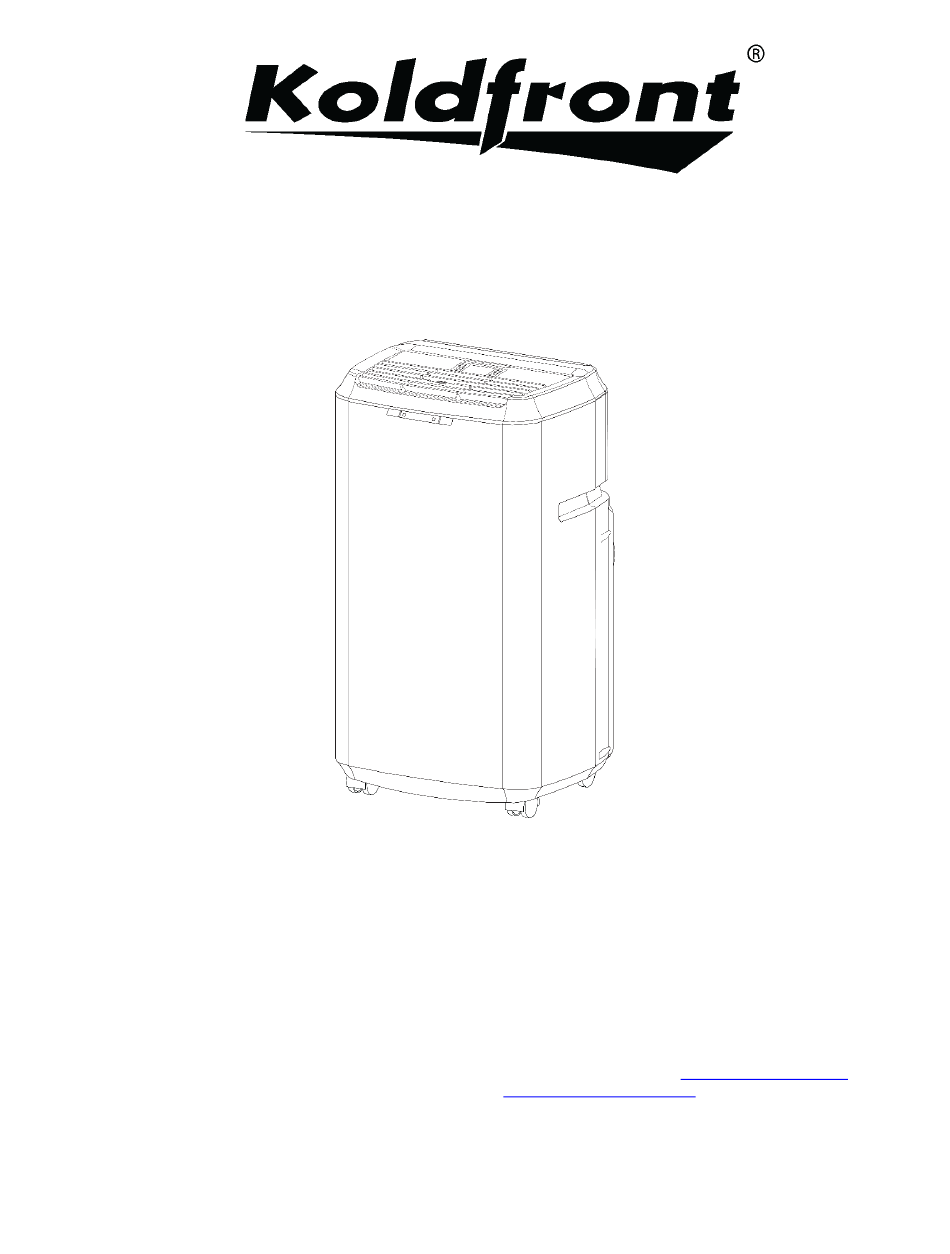

Portable Air Conditioner PACI14020HGY Owner’s Manual For more information on other great Koldfront or EdgeStar products on the web, go to http://www.edgestar.com To use the self-diagnostic tool, go to https://support.edgestar.com V2.0 - 12182018...
Important Safety Information Improper handling can cause serious damage to the Koldfront Portable Air Conditioner and / or injury to the user. This portable air conditioner is not intended for use by children. Children should be supervised to ensure that they do not play with this product.
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact Koldfront support.
Table of Contents Important Safety Information ........................... ii Operation of Safety Plug ..........................iii Introduction ............................... 1 Parts Identification ............................2 Front View ..............................2 Back View ............................... 2 Window Kit Installation Instructions ......................... 3 Preparations for Installing the Window Kit ....................3 Window Kit Parts List .............................
Page 5
First Time Operating Instructions: Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you need to move or ship the appliance in the future. This owner’s manual is provided for reference use only.
Introduction Thank you for purchasing this Koldfront by EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.
Parts Identification Note: The LCD display on top of this model is the remote control and is removable. Front View Back View Caution: Make sure the drain plug is firmly installed before using the unit to prevent leaking.
Window Kit Installation Instructions Preparations for Installing the Window Kit You must vent your portable air conditioner when running it in cooling mode or heat mode (certain models). Your unit includes a window exhaust kit that can be used to vent the unit out of a window. Before you begin, make sure you have all the parts necessary for installation.
Installation Location If you have multiple windows, choose one that is near an electrical outlet that will be able to provide sufficient power to your unit. See the power requirements listed on the product label printed on the side, or on the back of your portable air conditioner.
2. Secure the grated adapters by fastening the screws from the flat side of the window kit plate to the holes on the grated adapter. Installing the Window Plates 3. Open your window and place the window kit on the window sill with the grooved side facing outward. Then, slide the window kit plate to fit the width of the window.
Attaching the Duct Connectors to the Exhaust Hose 5. Attach the connectors to the hose. A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops. 6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. Connecting the Duct Connector to the Unit 7.
Connecting the Duct Connector to the Grated Adapter 8. Align the slots on the duct connector to the tabs on the grated adapter and snap the duct connector into place. After you have installed the exhaust hose and window kit, you can plug in your portable air conditioner and start using it.
The WATER indicator will light up on the Control Panel. Drainage Options Your Koldfront portable air conditioner comes with several different options for draining the water accumulated during operation. The most common will be the self-evaporative mode. The unit will do this automatically.
Page 14
Misting Drain Your unit also includes the unique Misting Drain option. If a drain is not present this option will allow the unit to remove the excess moisture out of the exhaust hose through a mist nozzle. The mist nozzle MUST be setup in the exhaust hose and NOT the intake hose.
Page 15
4. Attach the mist nozzle to the grated adapter. Make sure the mist nozzle is directed to mist outside of the window and not back into the exhaust hose. The unit will now automatically mist any excess water to the outside. Installing the mist system in the exhaust hose ensures all of the moisture is pushed completely away from the window.
Operation Remote Control Overview Button Function This button powers the unit on or off. Power This button sets the fan speed. The Automatic, High, Medium, or Low Fan Speed indicator will appear depending on the mode you set. This button sets the mode. The Automatic, Cool, Dehumidify,...
Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the correct direction. 3. Slide the cover back on. Caution: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month or longer.
Operating the Remote Control Power Use the Power button to turn the portable air conditioner on and off. By default when you first use the power button, the unit will begin to operate in cooling mode and the front panel will be illuminated in blue. The unit will remember the last used mode / settings if you shut down and restart.
Page 19
Heat Mode Only available on certain models This mode allows the unit to run as a heat pump. The unit must be vented for it to expel the cold air out of the exhaust. To operate the unit in heat mode: 1.
Page 20
Clock Clock button is used to set the Clock. To set the Clock: 1. Press and hold the Clock button until the Clock indicator starts blinking. 2. Set the time by using the Up and Down buttons. Holding down the buttons longer than 1 second will change the time in fast mode.
Front Panel Lights and Controls Front Panel Lights Your portable air conditioner has a front panel that lights up different colors depending on the mode it is running in. Cooling mode will display a blue light. Dehumidify mode will display a yellow light. Fan mode will display a green light.
Cleaning the Pre-Filter To clean the pre-filter, follow the steps below: 1. Power off the unit and remove the pre-filter. 2. Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt, then rinse thoroughly under lukewarm running water (below 104°F).
Troubleshooting Follow the troubleshooting guide below to resolve common issues. ISSUE POSSIBLE CAUSE SOLUTION My air conditioner is not The unit is not receiving power. Make sure the unit is plugged in. functioning at all. The LCDI power cord is tripped. Press the Reset button on the LCDI cord.
Page 24
ISSUE POSSIBLE CAUSE SOLUTION My air conditioner is not cooling The unit is not operating in Set the unit to be in cooling mode, at all. cooling mode. and lower the set temperature (pg. 13). The compressor is not on. The compressor may take up to 3 minutes to turn on, or longer if it is too warm.
Specifications DESCRIPTION OF PRODUCT Portable Air Conditioner with Heater MODEL PACI14020HGY Cooling: 14,000 BTUs Heating: 10,000 VOLTAGE / FREQUENCY 115 V / 60 Hz INPUT POWER 1250 W CURRENT 10.8 A COOLING CAPACITY (SACC) 8300 BTU COOLING CAPACITY (ASHRAE) 14000 BTU...
New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix CC.
EdgeStar Limited Warranty One (1) Year Parts & Ninety (90) Days Labor This product is warranted by EdgeStar to be free from defective workmanship and materials, subject to any conditions set forth as follows: WHAT IS COVERED: LABOR: For a period of NINETY (90) DAYS from the date of original purchase, labor will be performed free of charge at an authorized EdgeStar repair facility.
