Technical Support:
Telephone
(818)772-9100
(800) 545-6900
Fax
(818)772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth CA 91311
www.gefen.com -- support@gefen.com
Gefen Inc. reserves the right to make changes in the hard ware, packaging and any
accompanying doc u men ta tion without prior written notice.
Mini DVI Switcher is a trademark of Gefen Inc.
ASKING FOR ASSISTANCE
Notice
© 2004 Gefen Inc., All Rights Reserved
Advertisement
Related Manuals for Gefen MINIDVI-241
Summary of Contents for Gefen MINIDVI-241
- Page 1 Chatsworth CA 91311 www.gefen.com -- support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. Mini DVI Switcher is a trademark of Gefen Inc.
-
Page 2: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the Mini DVI Switcher RMT2-IR Installation Specifi cations Warranty TABLE OF CONTENTS... -
Page 3: Introduction

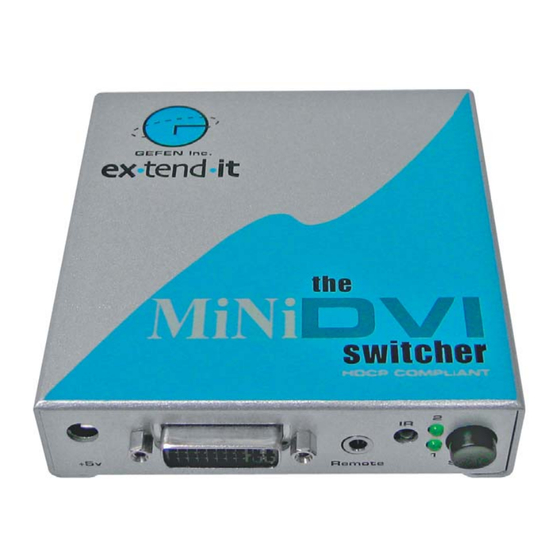

Our Commitment Gefen will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime of support from a team of outstanding engineers. The ex•tend•it Mini DVI Switcher allows two DVI devices to be switched easily in to one DVI compatible monitor or projector. -
Page 4: Features
• No loss of quality—the integrity of the signal is preserved throughout the transmissions using high caliber DVI cables that ensure the signal is maintained • Operational fl exibility—you can switch at the source, with the IR remote control or your own universal remote •... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Connects to 5VDC Connects to DVI Connects to IR Selects port 1 powersupply display extender or port 2 IR eye Indicates if port 1 or port 2 is selected... -
Page 6: Connecting And Operating The Mini Dvi Switcher
2 Connect the cable from your display (monitor or projector) into the DVI Out of the Mini DVI Switcher. How to Operate the Mini DVI Switcher 1 Use the front panel push button to switch between sources. 2 Alternatively, use the RMT2-IR remote control port to remotely toggle between sources. Operation Notes The Mini DVI Switcher can also be powered from input 1, as long as the device is on and supplying 5v to the DVI connector. -
Page 7: Rmt2-Ir Installation
1. Remove battery cover from the back of the RMT2-IR remote. 2. Verify that dip switches 1 & 2 are in the down (OFF) position. 3. Hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 GHz Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ... 1920 x 1200 DVI Input/Output Connector Type ... DVI-D Power Consumption ... 15 Watts (max.) Power Supply ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within one (1) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
