Method Two: Enter the PIN from my Router
Step 1: Get the Current PIN code of the Router from Self-PIN Number in Figure 4-22 (each
Router has its unique PIN code. Here takes the PIN code 12345670 of this Router for
example).

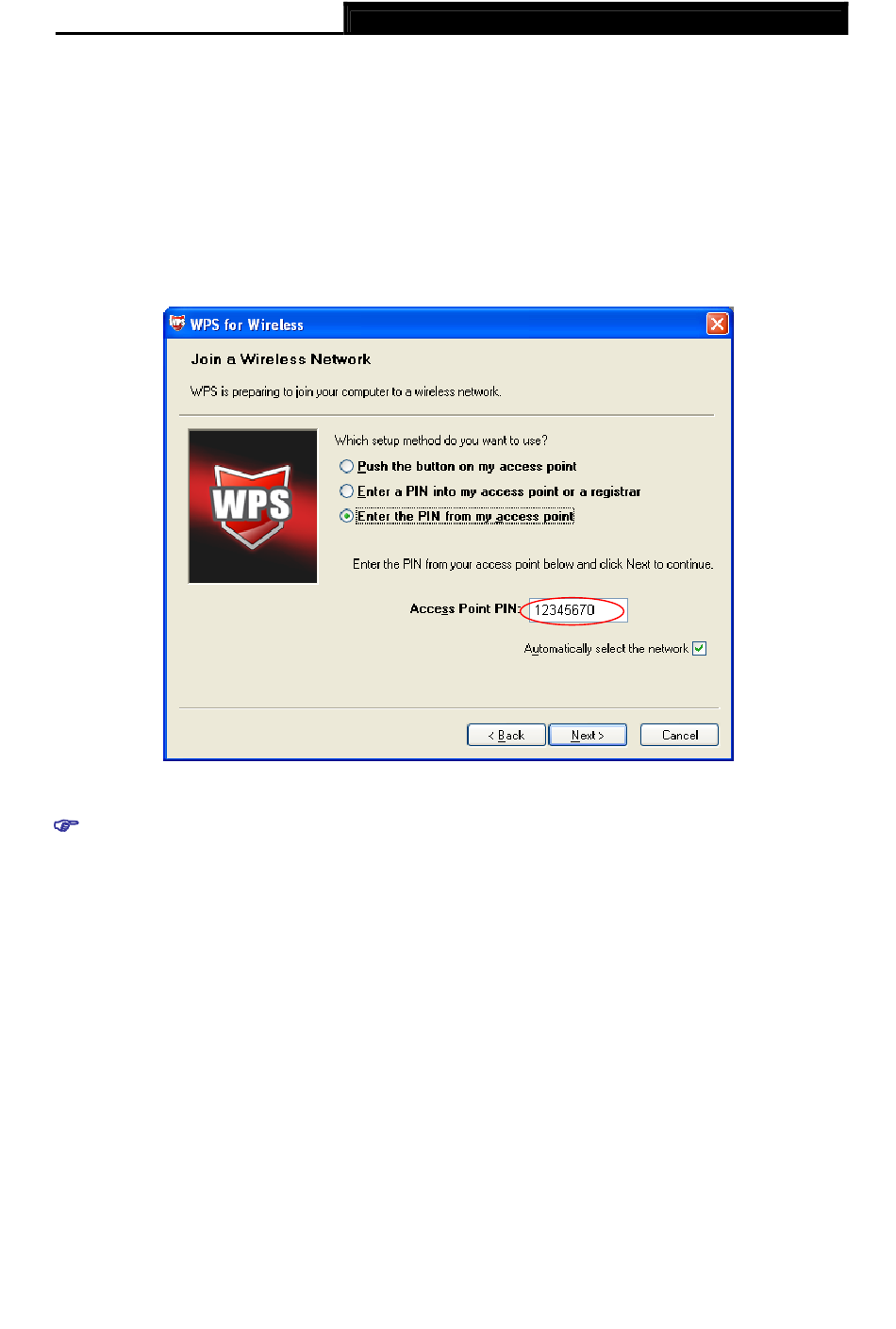

Step 2: For the configuration of the wireless adapter, please choose "Enter a PIN from my
access point" in the configuration utility of the WPS as below, and enter the PIN code of
the Router into the Access Point PIN field. Then click Next.
Note:
1. The default PIN code of the Router can be found in its label or the WPS configuration screen
as shown in Figure
2. After saving your configuration, you need to click the Save button on the left panel to make
your configuration take effect.
4.2.3.6 WDS
Choose "Setup→WLAN→WDS" menu, and you will see the WDS settings screen (shown in
Figure 4-23). WDS, short for Wireless Distribution System, uses wireless media to communicate
with other Access Points, like the Ethernet does. With this function enabled, the Router can
communicate with two or more WLANs.
To do this, you must set these Access Points in the same channel and add MAC addresses of
other Access Points to communicate with to the Current WDS AP List.
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide
The WPS Configuration Screen of Wireless Adapter
4-22.
