DHCP relay. In this mode, the DHCP requests from local PCs will be forwarded to the DHCP
server running on WAN side.
•
Relay Server: Enter the IP Address of the DHCP server running on WAN side.
3) DHCP Server: Select this mode, then the screen will be shown as in Figure 4-11. The Router
will work as a DHCP Server; it becomes the default gateway for DHCP client connected to it.
That device on your local network must be set as a DHCP client to obtain the IP address
automatically. By default, the DHCP Server is enabled.
•
IP Pool Range: Specify the start and end IP address for the DHCP server's IP
assignment. The default start and end IP Address are 192.168.1.100 and 192.168.1.200
separately. Please note that both addresses should be smaller than 192.168.1.254.
•
Default Gateway: The default gateway address.
TD851W 150Mbps Wireless N ADSL2+ Modem Router User Guide

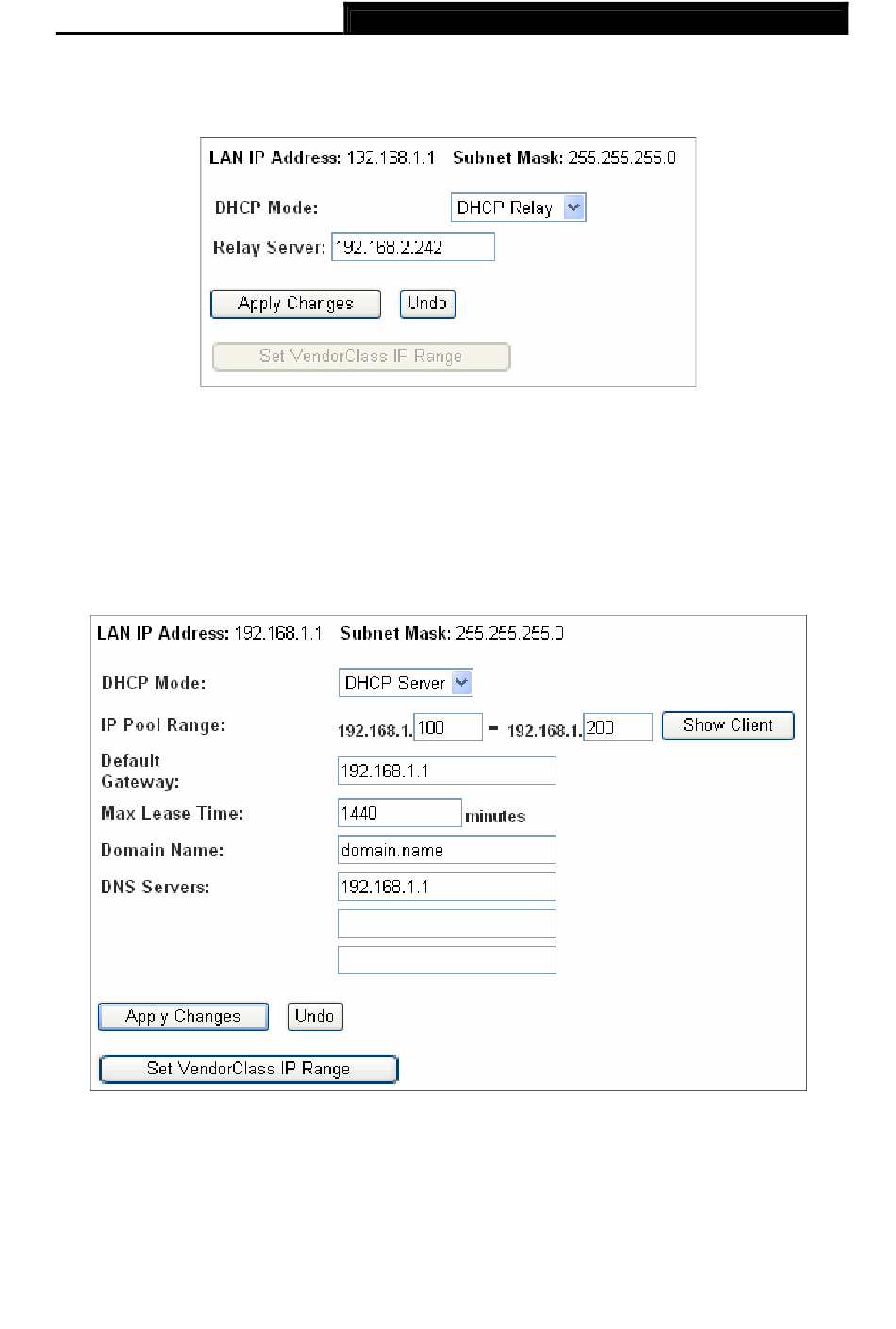

Figure 4-10
Figure 4-11
