Radial Plate to Mounting Pipe

Place the optional DXE-RADP-3 Radial Plate over the 3" OD (maximum) mounting pipe. Attach
the Radial Plate to the mounting pipe using one DXE-SSVC-3P stainless steel V-Clamp. Allow
approximately one inch clearance between the bottom of the Radial Plate and the ground to allow
access to the radial wire mounting hardware (see Figure 1). Connections to the antenna will be
made via the optional DXE-112-KIT chassis mount SO-239 connector. The DXE-RADP-3 Radial
Plate comes with 20 sets of stainless steel hardware for mounting the radial wires. It is suggested
that 32 radial each 65 feet long be used, therefore additional DXE-RADP-1HWK Radial Plate
Wire Attachment Hardware Kits will be required.

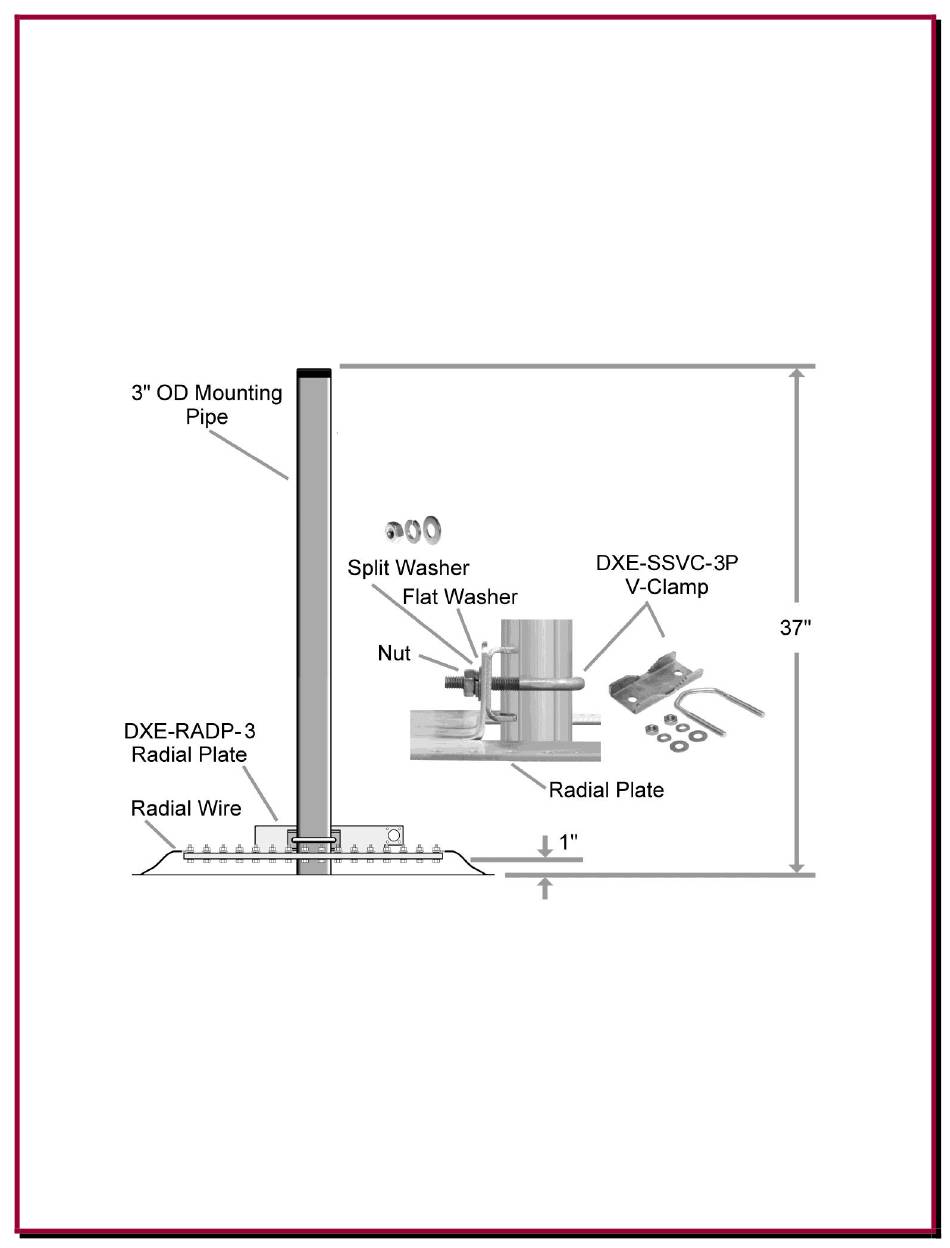

Figure 1 - Optional DXE-RADP-3 Radial Plate Mounted to a 3" OD Mounting Pipe
