Radial Plate To Mounting Pipe - DX Engineering DXE-MBVE-2 Manual

Note: The following assembly instructions are based on using a 2" OD Mounting
Pipe, with the following options: DXE-RADP-3 Radial Plate, DXE-UN-43
UNUN, DXE-UN-BRKT Mounting bracket for the UNUN, and DXE-TCB-
UNFK Feedpoint kit for the UNUN

Radial Plate to Mounting Pipe

Install the optional DXE-RADP-3 Radial Plate on the 2" OD mounting pipe using an optional
DXE-SSVC-2P stainless steel V-Clamps as shown in Figure 1. The standard 1-1/2" galvanized
water pipe (with its 1.9" OD) is just fine for this application and can usually be found at your local
home building supply store. Mount the Radial Plate so you have approximately 1" of space between
the bottom of the plate and the ground level. This will allow easy access to install the radial wire
hardware. The DXE-RADP-3 Radial Plate comes with 20 sets of stainless steel hardware for
mounting the radial wires. Mount the plate as shown in relation to how the Tilt Base and the
optional DXE- UN-43 UNUN are mounted. (For reference, Figure 15 shows the completed
installation).

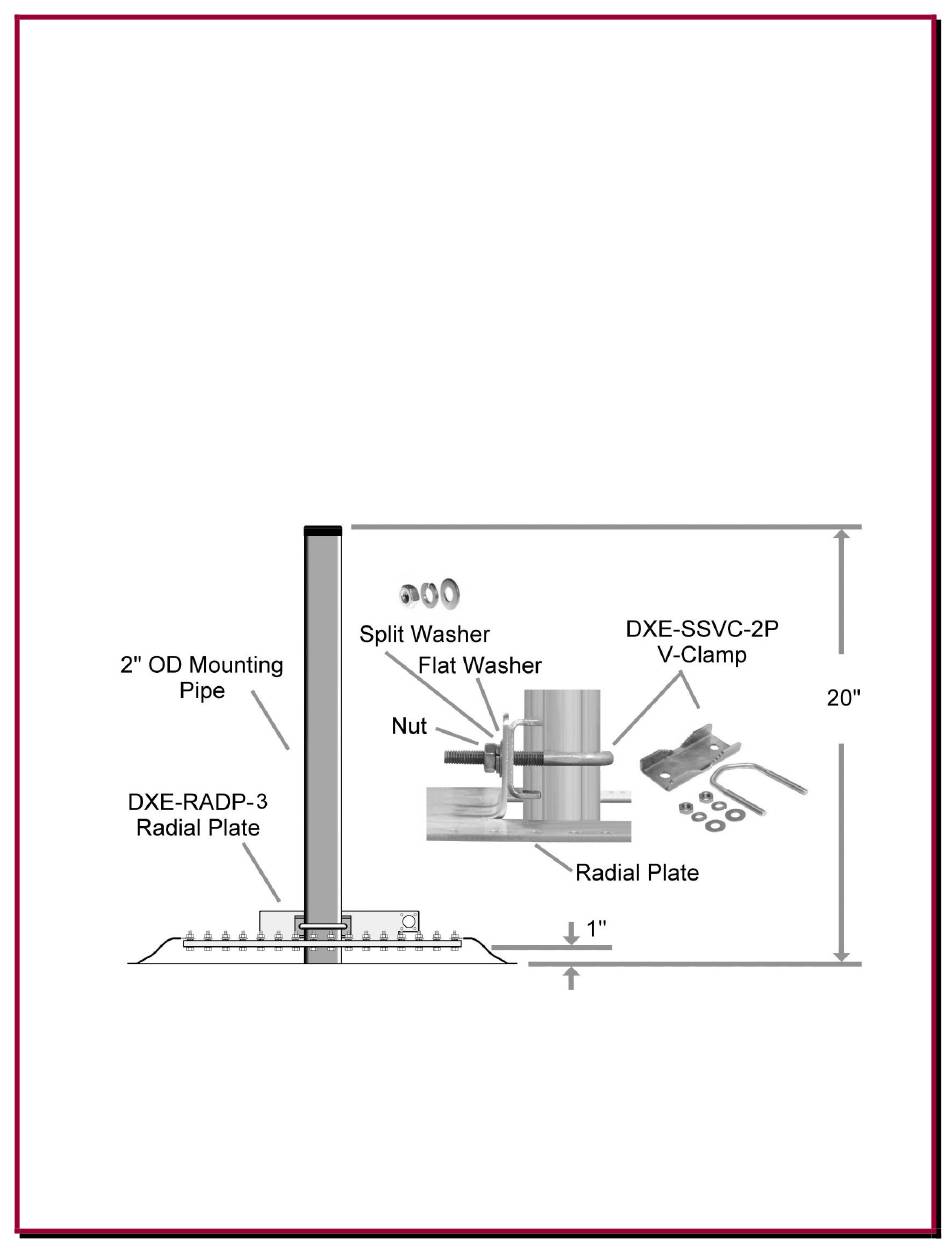

Figure 1 - Optional DXE-RADP-3
Radial Plate Installation
- 8 -
