15. Locate the 1/4"-20 x 1" long stainless steel hex bolt, three 1/4" stainless steel external tooth lock
washers, two 1/4" stainless steel flat washers and two stainless steel 1/4"-20 hex nuts. Install the
feedpoint hardware at the bottom of the 4" OD bottom element in the pre-drilled hole as shown
below.

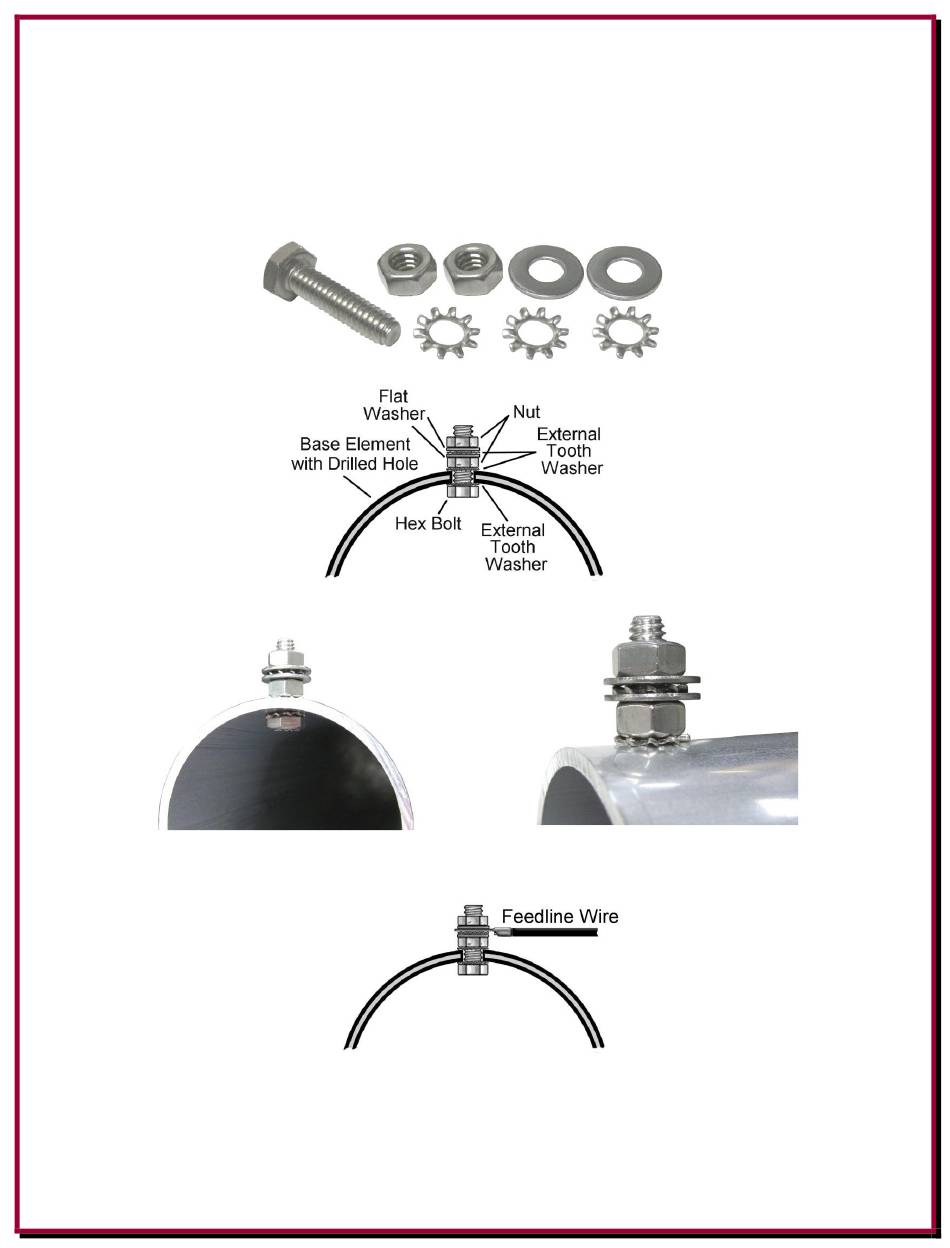

Views showing the Feedpoint hardware installed
- 17 -
