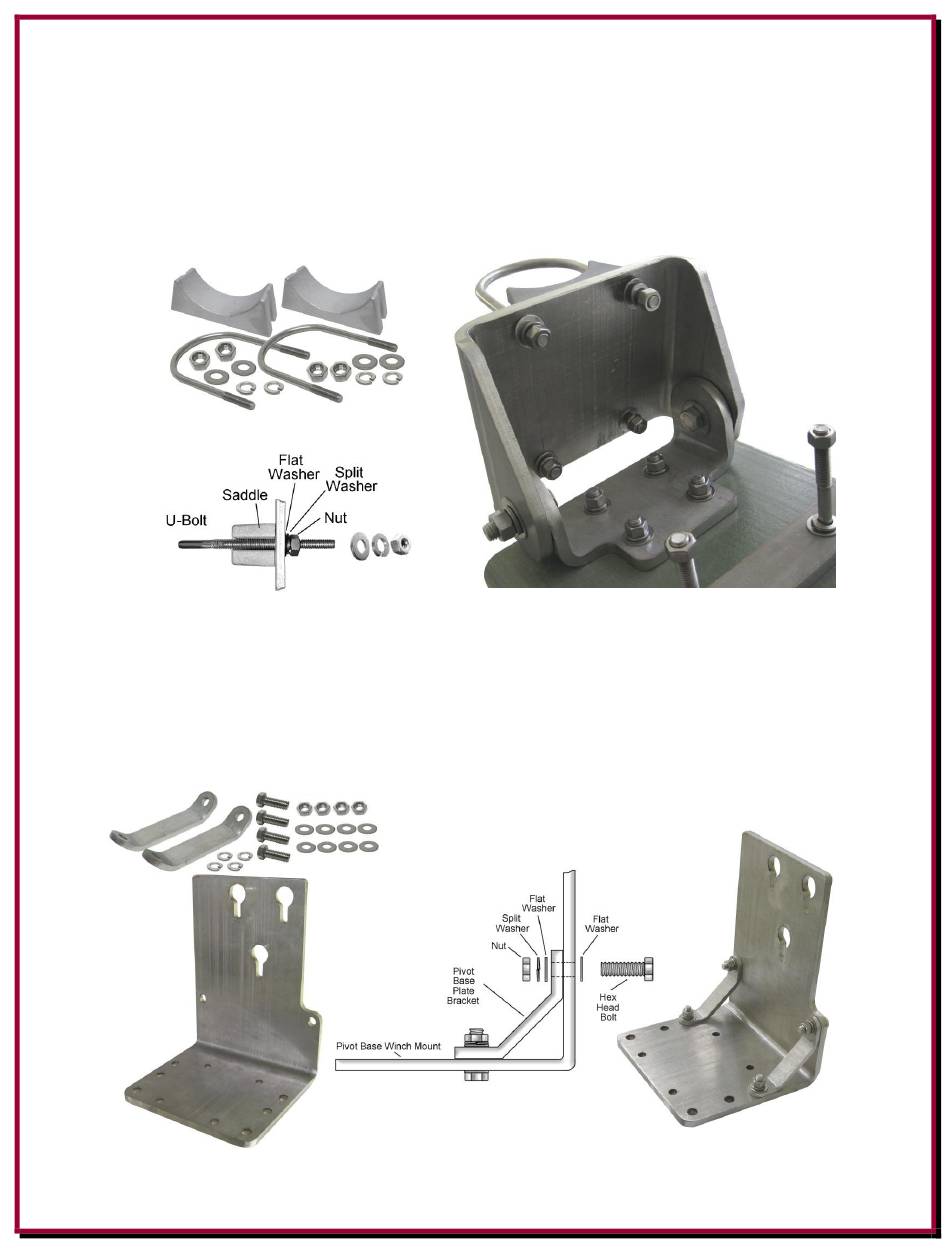

6. Locate two 3" cast saddle blocks, two stainless steel 3"x3/8"x5.25" U-Bolts, four stainless steel
3/8" flat washers, four stainless steel 3/8" split lock washers and four stainless steel 3/8"-16 hex
head nuts. (Note: The U-Bolts and their hardware may be packaged separately). Loosely
assemble (one or two threads beyond the end of the hex nuts) the two U-Bolts to the stainless
steel base side bottom hinge as shown below. The U-Bolts will be tightened in a later assembly
step.
7. Locate the stainless steel Pivot Base Winch Mount, two stainless steel Pivot Base Plate
Brackets, four 3/8"-16 x 1-3/8" long stainless steel hex bolts, eight stainless steel 3/8" flat
washers, four stainless steel 3/8" split lock washers and four stainless steel 3/8"-16 hex nuts.
Assemble the Pivot Base Plate Brackets to the Pivot Base Winch Mount as shown below.
