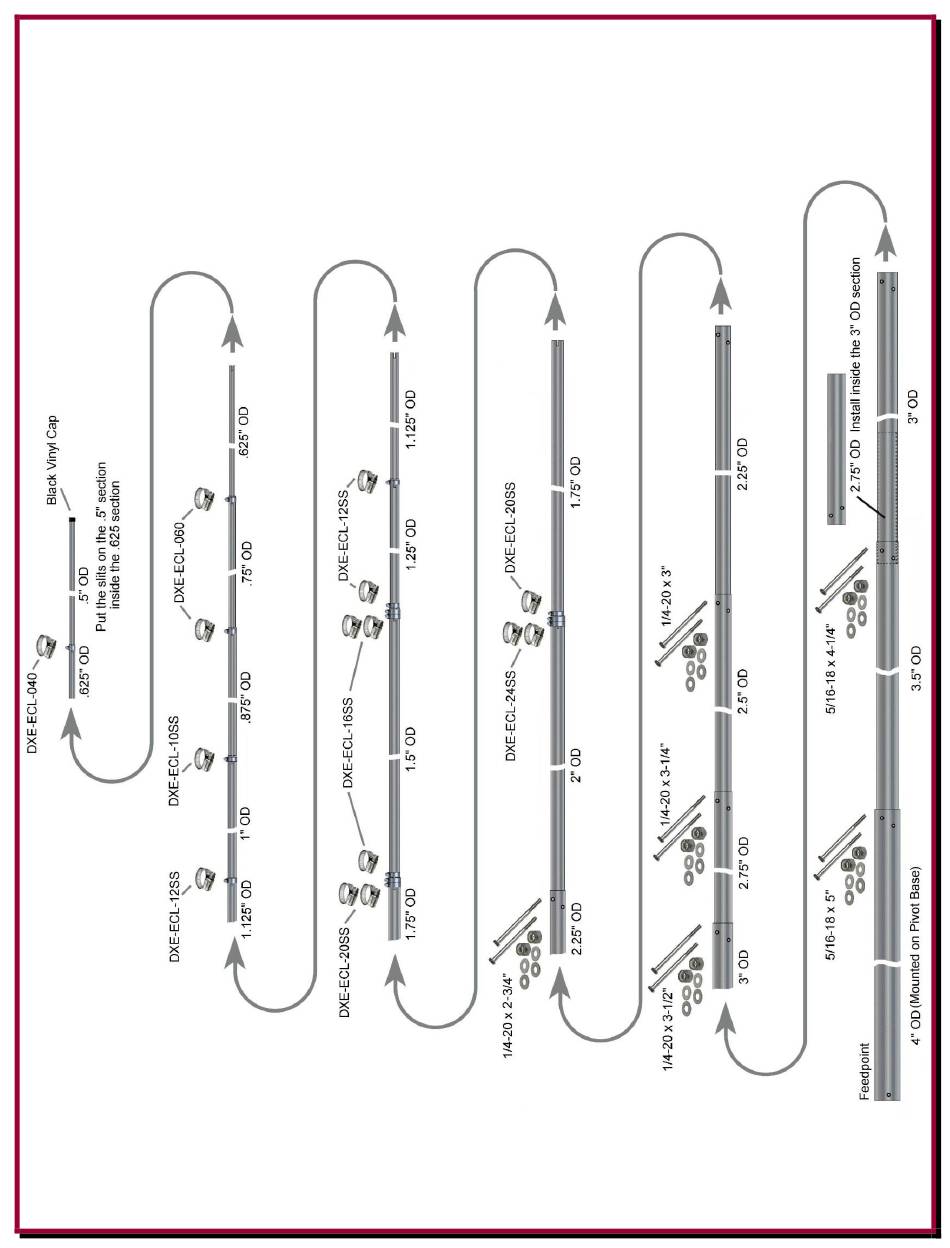

Figure A-1 below is an overall layout of all the vertical elements with hardware shown for
reference. The 4" OD element which is already mounted on the base pivot assembly is shown for
reference.
Figure A-1
- 24 -
