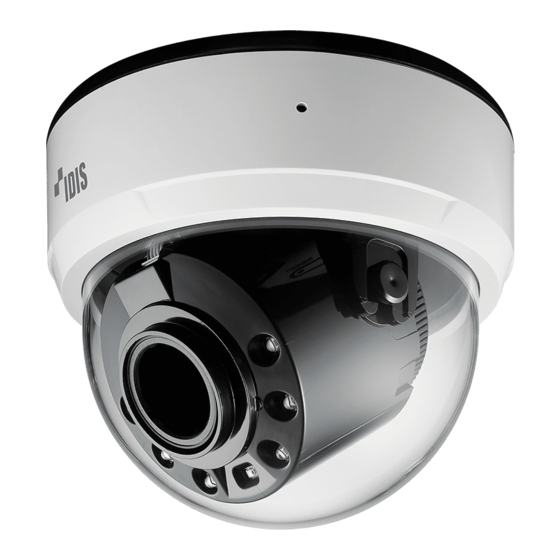

- Page 1 Network Camera Installation Manual DC-D4223RX / DC-D4223WRX / DC-D4233RX / DC-D4233WRX / DC-D4233HRX Powered by...
- Page 2 Before reading this manual This is a basic installation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this operation manual. Use or duplication of this operation manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this operation manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 – Introduction ......... 6 Product Features . -
Page 6: Part 1 - Introduction
Ethernet. • Video stream buffering to counter pre-/post-event You can use the IDIS Discovery program to change buffering and network delays for improved network network camera settings or the IDIS Solution Suite recording reliability Compact program to manage multiple network cameras. - Page 7 • Multiple event detection modes Remote monitoring and recording via multi streaming are available using the IDIS Solution Suite Compact program. For more information on using IDIS Solution Suite Compact, refer to its operation manual. There is a limit to the number of users allowed to...
-
Page 8: Accessories
Part 1 – Introduction Accessories Upon purchasing the product, check inside the box to make sure all the following accessories are included. DC-D4223WRX, DC-D4223RX, DC- DC-D4233WRX, DC- D4233RX Terminal Blocks (2 ea.) D4233HRX Network Camera Desiccant Allen Wrench Quick Guide Screws (3 ea.) -
Page 9: Overview
Part 1 – Introduction Overview Body DC-D4233RX Dome Cover DC-D4223RX, DC-D4233RX DC-D4223WRX, DC-D4233WRX, DC-D4233HRX... - Page 10 Part 1 – Introduction DC-D4223RX DC-D4233WRX, DC-D4233HRX...
- Page 11 For more information on network connection setup, IR LED refer to the IDIS Discovery operation manual. Lens The table below shows the network cable specifications.
- Page 12 Part 1 – Introduction • Audio • Do not remove the SD memory card while the - O (Out): Connect an amplifier to this port (line system is in operation. Removing the card while out). This device does not feature a built-in audio the system is in operation can cause the system amplifier unit and therefore requires the user to to malfunction and/or corrupt data stored on the...
-
Page 13: Factory Reset
It's also possible to do a factory reset by pressing and releasing the reset button while the camera is turned on or using the IDIS Discovery program from a remote location. A factory reset will reboot the system. For more... -
Page 14: Inserting A Sd Memory Card
Insert a SD memory card into the SD memory card slot with the 'micro SD' print facing upward. DC-D4233RX, DC-D4223RX DC-D4233WRX, DC-D4233HRX, DC-D4223WRX Push the SD memory card until it disengages from the slot, and then pull it out. -
Page 15: Installation
Cable rubber Protect Cable connector DC-D4233RX, DC-D4223RX Assemble the cable rubber to the bottom cover. Use the screws, anchor provided with the camera to secure the install bracket on a wall or a ceiling. Use the provided guide pattern to check the distance between the screws. -
Page 16: Closing The Dome Cover
Use the provided guide pattern to check the distance between the screws. DC-D4233RX, DC-D4223RX Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. -
Page 17: Angle Adjustment
Part 1 – Introduction Angle Adjustment Dimension The lens can be rotated along three axes. DC-D4233RX, DC-D4223RX Lens Rotation Horizontal Rotation Vertical Rotation • Lens Rotation Used to adjust the lens' rotation angle. Turn the lens rotator clockwise or counterclockwise direction. - Page 18 Part 1 – Introduction DC-D4233WRX, DC-D4233HRX, DC-D4223WRX Ø 155mm...
-
Page 19: Part 2 - Camera Connection
Part 2 - Camera Connection Use the camera by connecting to DirectIP™ NVR or non DirectIP™ NVR, VMS such as IDIS Solution Suite Compact. With DirectIP™ NVR-based Layout Audio In Audio Out Alarm Out Power Sensor In Network Camera Monitor Out... -
Page 20: With Non Directip™ Nvr-Based Layout
Ideal for using the camera over the network from a remote location. The contents in the camera operation manual are only for users using the camera with non DirectIP™ NVR connection or VMS connection such as IDIS Solution Suite Compact. -
Page 21: Part 3 - Appendix
ID and password as a safety precaution. camera. Unable to launch IDIS Web. If the IDIS Web login screen is not loading, check which version of Microsoft Internet Explorer you are using. IDIS Web may not launch properly on versions 8.0 or below. -
Page 22: Specifications
Max. Resolution 1920 x 1080 Scanning Mode Progressive Scan Lens type Motorized Vari-focal DC-D4233RX/WRX/HRX Variable focus auto iris DC-D4223RX/WRX Focal Length f=2.8 - 12mm Aperture F=1.4 ~ 2.8 Iris Control DC Iris Angular Field of View Wide : 98°(H), 51°(V), 116°(D) Tele : 33°(H), 19°(V), 38°(D) - Page 23 Part 3 - Appendix Network Video Compression H.265, H.264(MP), M-JPEG Bit rate Control CBR / VBR Max. Frame Rate 30fps : 1920 x 1080(WDR) Audio Compression G.726, ADPCM-16K, G.711u-Law, G.711a-Law Supported Resolution 1920x1080, 1280x720, 704x480, 640x360, 352x240 Multi-Video Streaming Quadruple Ethernet RJ45(10/100BASE-T) Edge Storage* (Optional)
- Page 24 Part 3 - Appendix General Operating DC-D4223RX, -10°C ~ +50°C (14°F ~ +122°F) Temperature DC-D4233RX DC-D4223WRX, -20°C ~ +55°C (-4°F ~ +131°F) DC-D4233WRX DC-D4233HRX -40°C ~ +55°C (-40°F ~ +131°F) Boot Up DC-D4223RX, 0°C ~ +50˚C (32°F ~ +122˚F) Temperature...
- Page 26 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
