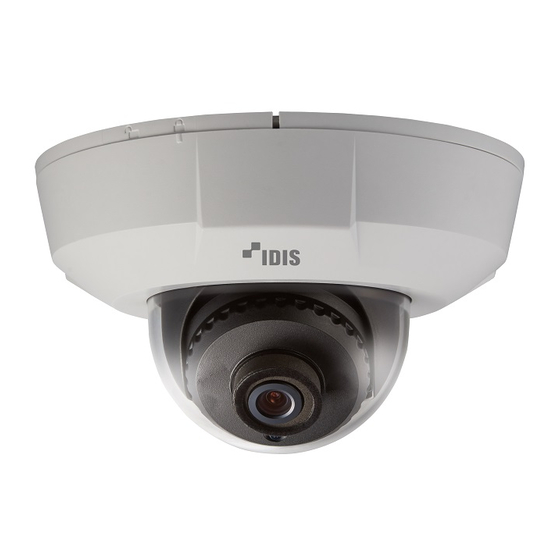

Idis DC-D3212X Operation Manual

Hide thumbs Also See for DC-D3212X:
Table of Contents

Advertisement

Quick Links

Download this manual
Network
Camera
Operation Manual
DC-D3212RX / DC-D3212X
Powered by

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-D3212X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Idis DC-D3212X

Summary of Contents for Idis DC-D3212X

  • Page 1 Network Camera Operation Manual DC-D3212RX / DC-D3212X Powered by...
  • Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
  • Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
  • Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.

  • Page 5: Table Of Contents

    Table of Contents Part 1 - Remote Setup ........7 Camera Protocol.
  • Page 6 Part 2 - IDIS Web ........

  • Page 7: Part 1 - Remote Setup

    - The DirectIP™ NVR also allows you to control all camera settings directly from the NVR, without the Launch the IDIS Discovery program and from the list, need for a computer. select a camera whose protocol you wish to change.

  • Page 8: Remote Setup

    Part 1 - Remote Setup Remote Setup Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. Select Remote Setup from the Setup menu to load the Remote Setup screen.

  • Page 9: Quick Setup

    There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery Change the camera’s system information, add users/ program.

  • Page 10: Date/Time

    Part 1 - Remote Setup • Setup Date/Time - Load Default Setup: Restores all settings other than Date/Time to their factory defaults. Select Include Network Setup to load default network settings as well. For more information on network setup, refer to the Network on page 12. - Import Setup: Open a setup file and apply its settings to the camera.

  • Page 11: User/Group

    Part 1 - Remote Setup User/Group • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups.

  • Page 12: Network

    Part 1 - Remote Setup Network • Type: Select the type of network you are using. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup. If you do not restart Remote Setup, the changes afterwards will not be applied.

  • Page 13: Fen

    IDIS Web program. The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure.

  • Page 14: Port/Qos

    Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Protocol) service to connect to the camera. When Click Apply to use the recommended port numbers.

  • Page 15: Bandwidth Control

    – Via Mobile Device: Launch the web browser and then enter http://IP Address:IDIS Web Port Number/ (If Use HTTPS has been enabled, enter https instead of http). Camera's IDIS Web port number and RTSP port number must be configured correctly in order to establish a connection this way.

  • Page 16: Security

    Part 1 - Remote Setup Security • SSL: Select this option to enable SSL (Secure Sockets Layer). Enabling this option applies SSL protocol protection on data transmitted out. However, programs and systems that do not support SSL will not be able to connect to the camera. If this option has been changed, click Save to apply the current settings, and then restart Remote Setup.

  • Page 17: Ieee 802.1X

    Part 1 - Remote Setup Video IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Certificates: Upload a certificate or a private key. You may be prompted to enter a password for the private key.

  • Page 18: Camera

    Part 1 - Remote Setup Camera • Pivot: Select a direction to rotate images 90 degrees clockwise or counterclockwise. If vertical resolution is less than 320, this function is not supported. If you enable this function, you can monitor more efficiently Image Sensor long and narrow space such as hallways, corridors, etc.
  • Page 19 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • AE Target Gain: Specify exposure compensation’s target gain. Exposure is compensated automatically - Auto: Allow the system to adjust the white based on the specified target gain.
  • Page 20 Part 1 - Remote Setup • Slow Shutter: Activate Slow Shutter. The electronic • Shutter Speed Control: Adjust Shutter Speed. This shutter’s speed will decrease to the specified level option is available only when Anti-Flicker and Slow Shutter are both set to Off. under low-lighting conditions to allow more light in and therefore produce brighter images.
  • Page 21 Part 1 - Remote Setup • IR Cut Filter: IR Cut Filter blocks out the infrared Day & Night spectrum. You can ensure clear images at all times by Configure Day & Night settings. blocking out the infrared spectrum in high-lighting conditions and allowing the infrared spectrum to pass through in low-lighting conditions.

  • Page 22: Streaming

    Part 1 - Remote Setup Streaming Miscellaneous Configure Miscellaneous settings. • Video Output: Select a video output signal format. • Primary/Secondary/Tertiary/Quaternary: • IR Strength: Set the brightness of the IR LED. The Multistreaming is supported (priority: Primary > DC-D3212RX higher the value is set, the brighter it is. Secondary >...
  • Page 23 Part 1 - Remote Setup • Compression: Choose the streaming compression • Multi-View Streaming: Designate a specific area of method. The H.265 compression does not support the screen and stream images from that area only. (not supported for the primary stream) Click Setup to ONVIF Protocol and RTSP.

  • Page 24: Webcasting

    Part 1 - Remote Setup - Resolution Limit: Indicates the maximum Webcasting resolution that can be set for the streaming area. - Resolution: Designate a streaming area. Use the webcasting service to view live images from the Designated area is marked in red on the screen. You camera on a web site.

  • Page 25: Mat

    Part 1 - Remote Setup • Frame Rate: Designate the frame rate to be used between the end of the Inactivity Period and the next motion detection. When the slow shutter mode is Select the MAT option to use the MAT (Motion Adaptive enabled under Video >...

  • Page 26: Privacy Masking

    Part 1 - Remote Setup Event Action Privacy Masking Select Privacy Masking to set up a privacy mask over Designate event detection alert actions. a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. •...

  • Page 27: Email

    Select Email to send out emails. Select Remote Callback to send callback messages to a remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 28: Ftp Upload

    Part 1 - Remote Setup FTP Upload Select FTP Upload to upload .jpg image of the event detected to an FTP server. - FTP Server: Enter the FTP server’s IP address (or domain name). - Upload Path: Designate the file upload path. - Port: Enter the FTP server’s port number.

  • Page 29: Record

    Part 1 - Remote Setup - Resolution/Quality: Choose the resolution and Record quality of the images to upload to the FTP server. Range of resolution settings you can use here can vary depe nding on the resolution setting applied Select Record to record video on the SD memory card. under Video >...
  • Page 30 • Recordings saved on the SD memory card can be resolution, quality, and frame rate settings can searched and played back from the IDIS Solution cause the recording to exceed the 60MB limit and Suite Compact program or remotely from the stop before the end of the specified recording remote program.

  • Page 31: Event

    Part 1 - Remote Setup Event Motion Detection Select Motion Detection to configure motion detection Configure event detection settings. event settings. With motion detection event enabled, motion detections within the designated area will be assumed as events. • Sensitivity: Select daytime and nighttime motion detection sensitivity levels.

  • Page 32: Trip-Zone

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 33: Tampering

    • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 34: System Event

    Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.

  • Page 35: Part 2 - Idis Web

    – Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https).
  • Page 36 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.

  • Page 37: Web Live Mode

    2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 38 Part 2 - IDIS Web Shows login information. Indicates the camera's number. This function is not supported. Used to adjust live video quality. Click to control the alarm out device connected to the camera. Event status window at the bottom of the screen displays a list of events detected at remote locales.

  • Page 39: Web Search Mode

    113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen.
  • Page 40 Part 2 - IDIS Web Click to switch over to Web Live mode. TYPE 1 Shows login information. Indicates the camera's number. Zoom in or out on the video. Adjust image brightness. Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images.
  • Page 41 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.

  • Page 42: Part 3 - Appendix

    Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Event Action Email Remote Callback FTP Upload Record Event...

  • Page 43: Index

    Part 3 - Appendix Index ONVIF Protocol Bitrate Control Quality Camera Name Remote Port Compression Resolution RTSP Port Date/Time DSCP FEN Name Time Sync FEN Server Frame Rate Use FEN Use HTTPS IDIS Web port User/Group IPFiltering Use UPnP Network Bandwidth Limit V1.1...
  • Page 45 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
