DC-D4511WERX, DC-D4531WERX
Configuration Guide for IDIS NVR
Version 1.0.0
(Sep. 8. 2021)
© IDIS Co., Ltd. All rights reserved. IDIS and identifying product names and numbers herein are registered trademarks of IDIS Co., Ltd.
All non-IDIS brands and product names are trademarks of their respective companies.
Product appearance, build status and/or specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-D4511WERX and is the answer not in the manual?

Questions and answers

Related Manuals for Idis DC-D4511WERX

Summary of Contents for Idis DC-D4511WERX

  • Page 1 Version 1.0.0 (Sep. 8. 2021) © IDIS Co., Ltd. All rights reserved. IDIS and identifying product names and numbers herein are registered trademarks of IDIS Co., Ltd. All non-IDIS brands and product names are trademarks of their respective companies. Product appearance, build status and/or specifications are subject to change without notice.

  • Page 2: Table Of Contents

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Table of Contents Introduction ............................3 Network Setup ............................3 Camera Basic Web Setup ........................4 Camera Password Setup ........................4 Camera IP Address Setup ........................5 Camera Stream Profile Setup ......................... 6 Camera Motion Event Setup ........................

  • Page 3: Introduction

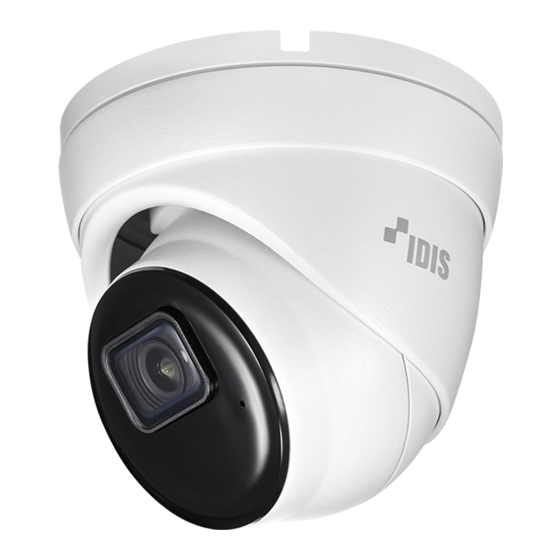

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Introduction This document will be explaining how to set up and register IDIS 5MP Turret Cameras DC-D4511WERX and DC-D4531WERX. Network Setup DC-D4511WERX and DC-D4531WERX require PC connections to set up cameras. IDIS NVR has separated 2 networks (Video-In network, Network client (WAN network).

  • Page 4: Camera Basic Web Setup

    Camera – NVR connection (PoE switch) Camera Basic Web Setup In this chapter, basic camera web setup for IDIS Products will be explained. Device Config Tool must be installed prior to this task. (Go to section 6.2 for more details about Device Config Tool.

  • Page 5: Camera Ip Address Setup

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Password Recovery menu is not used, click Cancel. 3.2 Camera IP Address Setup When the first time accessing camera webpage, it is recommended to set up an individual IP address for a camera. The default camera IP setting is static.

  • Page 6: Camera Stream Profile Setup

    3.3 Camera Stream Profile Setup Stream Profile settings are available on Record – Encode page. Note: The camera has 3 streams but IDIS NVR will use only MainStream and SubStream. For IDIS Products, audio recording is not supported via Onvif protocol.

  • Page 7: Camera Motion Event Setup

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR 3.4 Camera Motion Event Setup Motion settings are available on Event – Setup page. Version 1.0.0...

  • Page 8: Camera Registration

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Motion event should be enabled on NVR menu – Event – Video Analytics – Motion page. Camera Registration 4.1 Camera Registration Page This will guide camera registration to IDIS NVR. Note: NVR default Video-in IP address is set to Link-Local IP address(169.254.x.x) 1.

  • Page 9: Camera Is In Link-Local Ip Range

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR 2. Select Protocol as ‘Onvif Conformance’ 3. Enter Advanced Setup to setup IP address of NVR video-in network This Camera support both Link-local address IP range and static(DHCP) IP address, select desired IP address 4.2 Camera is in Link-local IP range...
  • Page 10 Cameras will appear on the list (Clicking Title header will change display mode from MAC address to IP address) c. Drag and drop a camera from device list and enter login detail. d. DC-D4511WERX, DC-D4531WERX are using Onvif protocol. Hence, the following notification will appear. Click OK. Version 1.0.0...

  • Page 11: Cameras In Dhcp Or Static Ip Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR e. Cameras are successfully registered (Video image is off in this manual). 4.3 Cameras in DHCP or Static IP settings a. When Manual(DHCP) is set from step 3. Click scan to discover devices...
  • Page 12 Cameras will appear on the list (Clicking Title header will change display mode from MAC address to IP address) c. Drag and drop a camera from device list and enter login detail. d. DC-D4511WERX, DC-D4531WERX are using Onvif protocol. Hence, the following notification will appear. Click OK. Version 1.0.0...

  • Page 13: Limitations

    Cameras are successfully registered (Video image is off in this manual). Limitations IDIS DC-D4511WERX and DC-D4531WERX have a couple of limitations as follows. 1. Camera needs to be registered via Onvif protocol. 2. Camera stream settings are not displayed on NVR – Camera – Stream menu. (It is displayed well in the NVR live pane) 3.
  • Page 14 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR DC-D4511WERX DC-D4531WERX Press the reset button for 10 seconds while a camera is plugged in. b. Device reset by Device Config Tool. Please refet to the section 6.2.5 - c c. Device reset by Camera webpage Please refet to the section 6.3.9 –...

  • Page 15: Device Config Tool

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR 6.2 Device Config Tool Device Config Tool is required to do the initial setup and discover devices in a network. Download Link: https://idisglobal-admin.s3-accelerate.amazonaws.com/support_download/Device+Config+Tool.exe Installation 1. Download Device Config Tool and run 2. After installation run Device Config Tool...
  • Page 16 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Network settings can be changed by clicking a camera from the list. Version 1.0.0...
  • Page 17 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Camera remote page can be accessed by clicking Hyperlink on the IP column When accessing the webpage for the first time, password setup is required. Password must be set for further configuration. Password Recovery menu is not used, click Cancel.

  • Page 18: Search Tab

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Search Tab IP configuration can be done on this tab. Simply click the camera and change IP setting by changing values in the bottom field. Manual and DHCP settings are available for this camera. By default, it is set to 192.168.1.168 when it is in static mode.
  • Page 19 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR 3. Status will be changed during the upgrade process. Login File transferring Upgrade complete Version 1.0.0...

  • Page 20: Config Tab

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Config Tab In this tab, device reboot, password change, and load default setting can be done. a. Device reboot First, input camera information click login, if the information is correct, Login successful message will be displayed on the bottom.
  • Page 21 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Login successful message will be displayed when the password is changed. c. Load default setting Click Default tab from the left menu. Select desired components from the list and click Set Set Parameter Succeed! Message will be displayed when the settings are changed successfully.

  • Page 22: Stream Config Tab

    The time correction button refreshes and synchronizes the time with NTP server. OSD Config Tab On-Screen Display feature is provided by default for DC-D4511WERX and DC-D4531WERX, and this tab present singular or multiple OSD setting changes. a. Changing OSD value: Select target cameras and set OSD info values and click Set...

  • Page 23: Change Password Tab

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR b. Copy and paste settings: Select a camera from the list that has desired OSD settings. Enter login detail and click Query to load OSD settings. c. Select cameras from the list that requires setting change and click Set to apply settings.

  • Page 24: Camera Webpage

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR a. Select target cameras. b. Enter the current password and new password and click Modify. Modified successfully message will be displayed when it is done successfully. 6.3 Camera Webpage Most camera settings need to be done on camera webpage. Details about camera settings will be explained in this chapter.

  • Page 25: Playback Tab

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR If the plugin is not installed, install the plugin to view live streaming. Playback Tab Browsing SD card recording is available on this tab. *Please note that this is not compatible with IDIS products* Version 1.0.0...

  • Page 26: Remote Setting Tab(Camera Configurations)

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Remote Setting Tab(Camera Configurations) Main settings for NVR recording are available on this tab. The following list of settings is available. Version 1.0.0...

  • Page 27: Channel Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Channel Settings Live, Image Control, and Video Cover options settings are available in this section. a. Live b. Image Control Version 1.0.0...

  • Page 28: Record Settings(Stream Profile Settings)

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR c. Video Cover(Masking option) Record Settings(Stream Profile settings) Encode(NVR recording), Record(SD card recording) settings are available in this section. a. Encode Version 1.0.0...

  • Page 29: Event Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR b. Record Recording Schedule Event Settings Motion event and Alarm(notification) are available in this section. a. Motion Version 1.0.0...

  • Page 30: Network Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR b. Alarm Network Settings General, Email, FTP, RTSP, DDNS, HTTPS, and IP filter settings are available in this section. a. General b. Email Version 1.0.0...
  • Page 31 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR c. FTP d. RTSP Version 1.0.0...
  • Page 32 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR e. DDNS HTTPS g. IP filter Version 1.0.0...

  • Page 33: Device Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Device Settings Disk, audio, and cloud settings are available in this section. a. Disk b. Audio c. Cloud Version 1.0.0...

  • Page 34: System Settings

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR System Settings General, Multi-User, Maintenance, and Information settings are available in this section. a. General Date and Time Daylight Saving Time b. Multi-User c. Maintenance Version 1.0.0...
  • Page 35 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Load Default Upgrade Parameter Management Auto Reboot Version 1.0.0...
  • Page 36 DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR d. Information [End of Document] Version 1.0.0...

  • Page 37: Version History

    DC-D4511WERX, DC-D4531WERX Configuration Guide for IDIS NVR Version History Version Writer Revision Date Remarks 1.0.0 Jungsoo Yoon Sep. 8. 2021 Initial Release Version 1.0.0...
