Lamona LAM1901 User Manual

Lamona LAM1901 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Hob
LAM1901
User Manual
www.howdens.com/appliance-registration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAM1901 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lamona LAM1901

Summary of Contents for Lamona LAM1901

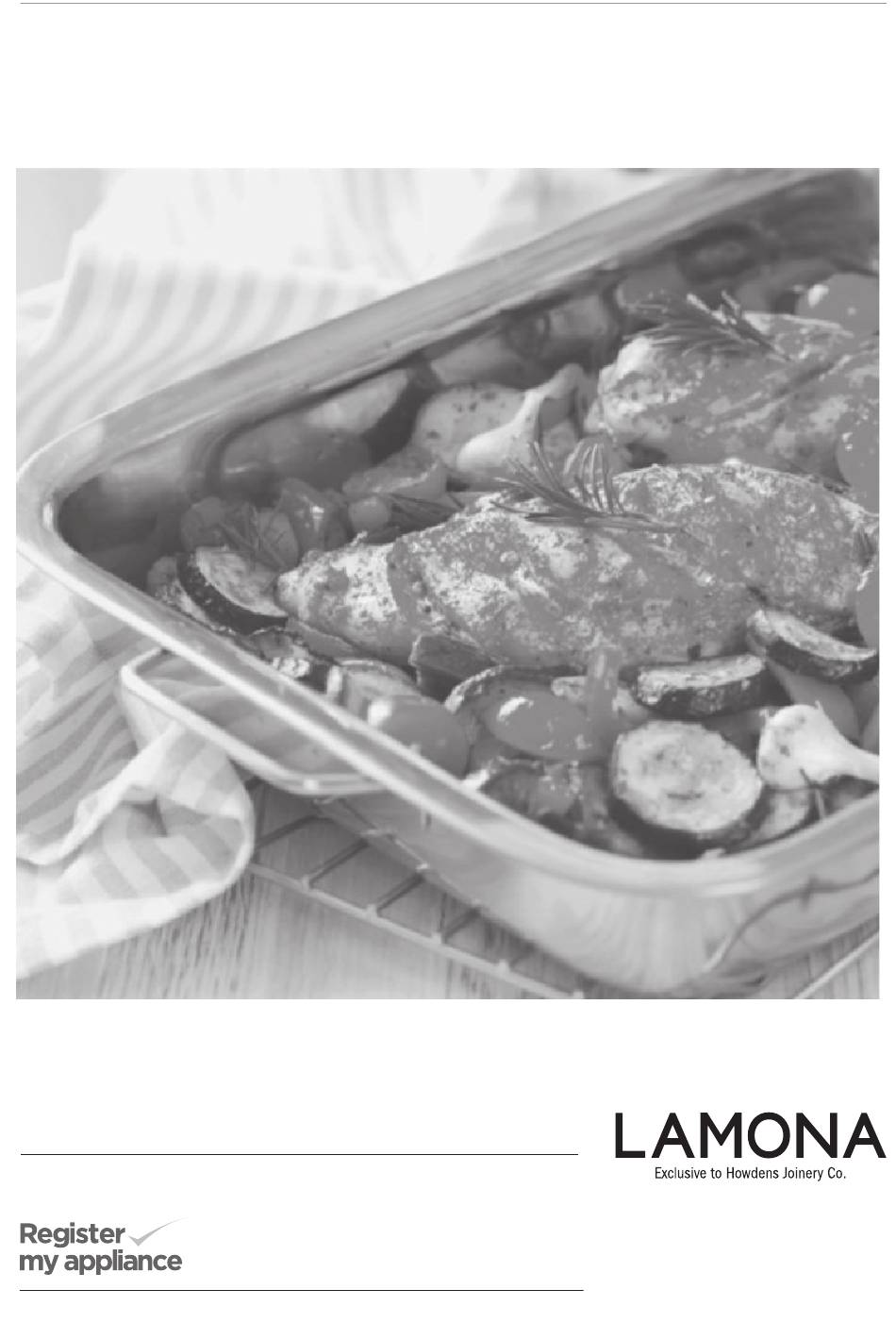

  • Page 1 LAM1901 User Manual www.howdens.com/appliance-registration...
  • Page 2 See back page for product serial number...

  • Page 3: Table Of Contents

    Contents Safety information Safety instructions Product description Daily use Hints and tips Care and cleaning Troubleshooting Installation Technical data Energy efficiency Your guarantee Subject to change without notice.

  • Page 4: Safety Information

    Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 5: Safety Instructions

    NEVER try to extinguish a fire with water, but switch off the • appliance and then cover flame e.g. with a lid or a fire blanket. CAUTION: The cooking process has to be supervised. A • short term cooking process has to be supervised continuously.
  • Page 6 • If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is sufficient for air circulation. • The bottom of the appliance can get hot. Make sure to install a non-combustible separation panel under the appliance to prevent access to the bottom.
  • Page 7 • Do not let the appliance stay unattended during operation. • Set the cooking zone to “off” after each use. • Do not rely on the pan detector. • Do not put cutlery or saucepan lids on the cooking zones. They can become hot. •...

  • Page 8: Product Description

    • Disconnect the appliance from the mains supply. • Cut off the mains electrical cable close to the appliance and dispose of it. Service • To repair the appliance contact an Authorised Service Centre. • Use original spare parts only. Product description Cooking surface layout Induction cooking zone...
  • Page 9 Sen- Function Comment field STOP+GO To activate and deactivate the function. Heat setting display To show the heat setting. Timer indicators of cooking To show for which zone you set the time. zones Timer display To show the time in minutes. Hob²Hood To activate and deactivate the manual mode of the function.

  • Page 10: Daily Use

    OptiHeat Control (3 step Residual heat indicator) WARNING! There is a risk of burns from residual heat. The indicator shows the level of the residual heat. The induction cooking zones make the heat necessary for cooking process directly in the bottom of the cookware.
  • Page 11 Automatic Heat Up Activate this function to get a desired heat setting in a shorter time. When it is on, the zone operates on the highest setting in the beginning and then continues to cook at the desired heating setting. To activate the function the cooking zone must be cold.
  • Page 12 When the time comes to an end, the sound operates and 00 flashes. The cooking zone deactivates. To stop the sound: touch CountUp Timer (The count up timer) You can use this function to monitor how long the cooking zone operates. To set the cooking zone: touch again and again until the indicator of a necessary cooking zone comes on.
  • Page 13 When you deactivate the hob, you also deactivate this function. The Child Safety Device This function prevents an accidental operation of the hob. To activate the function: activate the hob with . Do not set the heat setting. Touch for 4 seconds. comes on.
  • Page 14 Hob²Hood It is an advanced automatic function which connects the hob to a special hood. Both the hob and the hood have an infra — red signal communicator. Speed of the fan is defined automatically on basis of mode setting and temperature of the hottest cookware on the hob.

  • Page 15: Hints And Tips

    Changing the automatic mode 1. Deactivate the appliance. 2. Touch for 3 seconds. The display comes on and goes off 3. Touch for 3 seconds. 4. Touch a few times until comes on. 5. Touch of the Timer to select an automatic mode. To operate the hood directly on the hood panel deactivate the automatic mode of the function.
  • Page 16 • correct: cast iron, steel, enamelled steel, stainless steel, the bottom made of multi-layer (with correct mark from a manufacturer). • not correct: aluminium, copper, brass, glass, ceramic, porcelain. Cookware is correct for an induction hob if: • some water boils very quickly on a zone set to the highest heat setting. •...
  • Page 17 Heat setting Use to: Time Hints (min) Keep cooked food warm. Put a lid on the cookware. neces- sary 1 - 3 Hollandaise sauce, melt: butter, 5 - 25 Mix from time to time. chocolate, gelatine. 1 - 3 Solidify: fluffy omelettes, baked 10 - 40 Cook with a lid on.

  • Page 18: Care And Cleaning

    It may happen that other remote controlled appliances may block the signal. To avoid it do not operate the remote of the appliance and the hob at the same time. Cooker hoods with the Hob²Hood function To find the full range of cooker hoods which work with this function refer to our consumer website.

  • Page 19: Troubleshooting

    Troubleshooting WARNING! Refer to Safety chapters. What to do if... Problem Possible cause Remedy You cannot activate or oper- The hob is not connected to Check if the hob is correctly ate the hob. an electrical supply or it is connected to the electrical connected incorrectly.
  • Page 20 Problem Possible cause Remedy The heat setting changes be- Power management function Refer to "Daily use" chapter. tween two levels. operates. The sensor fields become The cookware is too large or Put large cookware on the hot. you put it too near to the con- rear zones if possible.

  • Page 21: Installation

    If you cannot find a solution... If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre. Give the data from the rating plate. Give also three digit letter code for the glass ceramic (it is in the corner of the glass surface) and an error message that comes on. Make sure, you operated the hob correctly.
  • Page 22 min. 2 mm min. 2 mm < 20 mm > 20 mm min. 500 mm min. 500 mm 30 mm 12 mm 57 mm 12 mm 57 mm 28 mm 41 mm 28 mm 41 mm 38 mm 31 mm 38 mm 31 mm min.

  • Page 23: Technical Data

    Please contact your local supplier. You can not use the protection box if you install the hob above an oven. Technical data Rating plate Model LAM1901 PNC 949 594 426 00 Typ 60 GBD CM AU 220 - 240 V 50 - 60 Hz Induction 7.4 kW...

  • Page 24: Energy Efficiency

    It changes with the material and dimensions of the cookware. For optimal cooking results use cookware not larger than the diameter in the table. Energy efficiency Product information according to EU 66/2014 Model identification LAM1901 Type of hob Built-In Hob Number of cooking zones Heating technology...

  • Page 25: Your Guarantee

    Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006. Product installed in a domestic or non-domestic kitchen where 8 or fewer people use the appliance.
  • Page 28 Product serial number (Place sticker here) V1 180417 ISSUE...
