PowerPAD is a trademark of Texas Instruments.
SLVU685 - February 2012
Submit Documentation Feedback
..................................................................................................................
................................................................................................................
............................................................................................................
................................................................................................................
...........................................................................................
...........................................................................................................
....................................................................................................
.......................................................................................................
........................................................................................................
...............................................................................................
...............................................................................................
....................................................................................................
........................................................................................................
..........................................................................................................
......................................................................................................
...............................................................................................
.....................................................................................
.........................................................................................
Copyright © 2012, Texas Instruments Incorporated
Contents
.............................................................................
List of Figures
List of Tables
User's Guide
SLVU685 - February 2012
TPS65300EVM
TPS65300EVM
2
2
2
6
6
7
9
9
10
2
3
3
4
4
4
7
8
8
9
2
10
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS65300EVM
Summary of Contents for Texas Instruments TPS65300EVM
-
Page 1: Table Of Contents
Bottom Layer Routing ....................TPS653000EVM Schematic List of Tables ..................Device and Package Configurations ..................TPS65300EVM Bill of Materials PowerPAD is a trademark of Texas Instruments. SLVU685 – February 2012 TPS65300EVM Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 2: Introduction

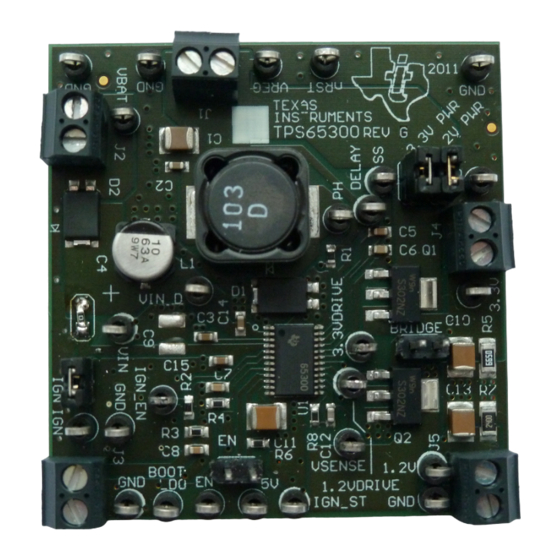

Introduction www.ti.com Introduction The Texas Instruments TPS65300EVM evaluation module (EVM) helps designers evaluate the operation and performance of the TPS65300 Switch Mode Power Supply – Multiple-output voltage regulator. The EVM contains one DC / DC converter (see Table Table 1. Device and Package Configurations... -
Page 3: Ign Jumper Settings
EN-pin is a logic-level-input, maximum input voltage should not exceed 5.25V. High, part remains Low, part disabled enabled after after ignition of ignition off (IGN = low) ( IGN = low) Figure 3. EN Jumper Settings SLVU685 – February 2012 TPS65300EVM Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 4: 3.3V Pwr Jumper Settings
(1.2V_PWR and BRIDGE) installed at the same time. BRIDGE BRIDGE Supplied by 3.3V rail . Disconnected Remove 1.2V_PWR- from 3.3V rail jumper before installation Figure 6. Bridge Jumper Settings TPS65300EVM SLVU685 – February 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... - Page 5 Ignition input indicator. Asserted high while ignition input is high. • 5V Output of the 5V linear regulator. Since no screw-terminal is provided for this output, use the test-point to attach a load. SLVU685 – February 2012 TPS65300EVM Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated...
-
Page 6: Setup
The input voltage range for the converter is 5.6 volts to 40 volts. Operation For proper operation of the TPS65300EVM, the jumpers should be properly configured. Set jumpers to this configuration: Open (device will power down if IGN is transitioning low. -
Page 7: Board Layout
Figure Figure 8 Figure 9 show the board layout for the TPS65300EVM PWB. The EVM offers jumpers to enable the device in various ways and to select supply rails for 3.3V and 1.2V linear regulators. Figure 10 shows the schematic. -
Page 8: Top Layer Routing
Board Layout www.ti.com Figure 8. Top Layer Routing Figure 9. Bottom Layer Routing TPS65300EVM SLVU685 – February 2012 Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 9: Schematic And Bill Of Materials
Schematic and Bill of Materials www.ti.com Schematic and Bill of Materials Schematic Figure 10. TPS653000EVM Schematic SLVU685 – February 2012 TPS65300EVM Submit Documentation Feedback Copyright © 2012, Texas Instruments Incorporated... -
Page 10: Bill Of Materials
Schematic and Bill of Materials www.ti.com Bill of Materials Table 2. TPS65300EVM Bill of Materials COUNT REF DES DESCRIPTION SIZE PART NUMBER Capacitor, ceramic, 10uF, 16V 1206 Panasonic EEV-FK1H221P C2, C3 Capacitor, ceramic, 0.1uF, 50V, 10% muRata GCM188R71H104KA57 Capacitor, ceramic, 10uF, 63V... - Page 11 Any exceptions to this is strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization.
- Page 12 REGULATORY COMPLIANCE INFORMATION (continued) FCC Interference Statement for Class B EVM devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 13 Japan with respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan. Texas Instruments Japan Limited (address) 24-1, Nishi-Shinjuku 6 chome, Shinjukku-ku, Tokyo, Japan http://www.tij.co.jp 【ご使用にあたっての注】...
- Page 14 FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate Assurance and Indemnity Agreement. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated...
- Page 15 Any exceptions to this are strictly prohibited and unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory authorities, which is responsibility of user including its acceptable authorization.
- Page 16 FCC Interference Statement for Class B EVM devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 17 Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan. Texas Instruments Japan Limited (address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan http://www.tij.co.jp...
- Page 18 FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate Assurance and Indemnity Agreement. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2012, Texas Instruments Incorporated...
- Page 19 IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue.
