soundsation MHL-10W-36-RGBW Product Instruction

soundsation MHL-10W-36-RGBW Product Instruction

36*10w four in one, fancy effect led moving head light

Advertisement

Quick Links

Product Instruction

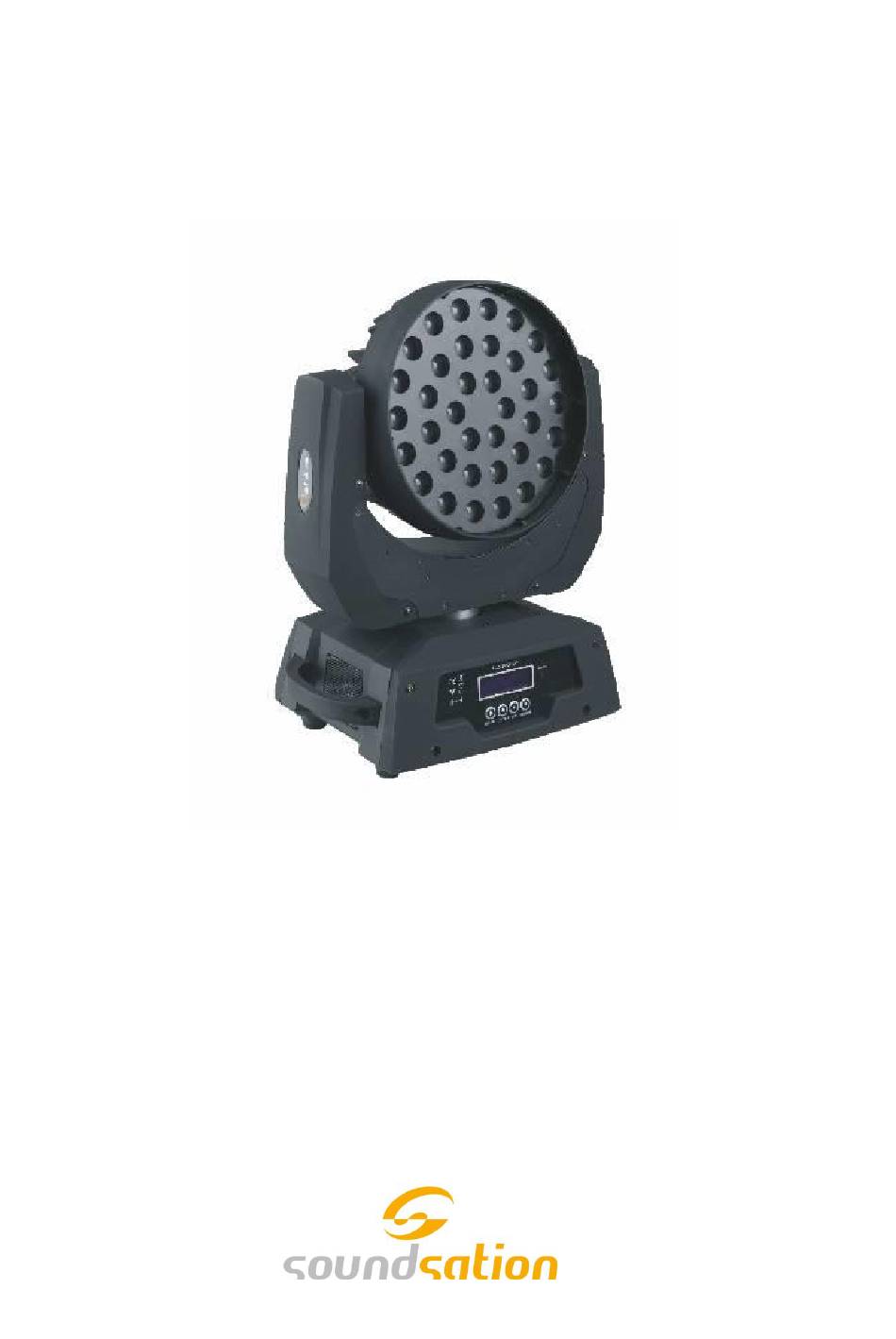

MHL-10W-36-RGBW
36*10W (four in one) (
fancy effect)
LED Moving Head Light

Advertisement

loading
Need help?

Need help?

Do you have a question about the MHL-10W-36-RGBW and is the answer not in the manual?

Questions and answers

Summary of Contents for soundsation MHL-10W-36-RGBW

  • Page 1 Product Instruction MHL-10W-36-RGBW 36*10W (four in one) ( fancy effect) LED Moving Head Light...
  • Page 2: Product Profile

    Product Profile: Power supply: 110-230V AC 50/60Hz Power consumption: 350W Light source: 36 pieces 10W LED DMX control channel: 27 DMX 512 connection: 3-pin XLR Flash-rate: 25Hz Maximum PAN-movement 630°: In 2.5s Maximum TILT-movement265°: In 1.5s Number of LED: 36 Beam angle: approx.
  • Page 3 CH16 White 2 0—255 White 0%-100% CH17 Red 3 0—255 Red 0%-100% CH18 Green 3 0—255 Green 0%-100% CH19 Blue 3 0—255 Blue 0%-100% CH20 White 3 0—255 White 0%-100% CH21 Pan/Tilt speed 0—255 Pan/Tilt speed CH22 Manual RGB mixing colors 0—255 Mixing colors CH23...
  • Page 4 3、Press, “ENTER” button to save and quit. Press “MENU” button to quit no saving. Five: Setting Balance: 1、Press “Menu” button to Set Balance,confirm by press “ENTER” button. 2、Show Adjust red Value: 255 correct by pressing “UP&DOWN” button. 3、Press, “ENTER” button to save and quit. Press “MENU” button to quit no saving. 4、Press”...
  • Page 5 1、Press “Menu” button to Run manual mode,Confirm by press “ENTER” button. 2、Show Run manual Adjust Red,Press “UP&DWON” button to choose the wanted channel, Red,Green,Blue,PAN,TILT,to enter by pressing “ENTER” Button. 3、Press “UP&DWON” button to correct, Press” ENTER” Button to save or quit the above menu.
