4K HDR 4:4:4 60Hz HDBaseT™ Receiver with Scaling, HDR
Conversion & 2ch/S/PDIF Audio Breakout & PoH (4K: 70m/230ft)
RXV-70-G2-SCL
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features before beginning the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document versions,
additional documentation, and configuration tools.
• Read through the
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
LAN Cat6a/7
Wireless Router
AC Mains
Power
Blu-ray Player
Copyright © 2020 WyreStorm Technologies |
RXV-70-G2-SCL Quickstart Guide | 200602
section for important wiring
Control System
CAB-IR-LINK (Sold Separately)
IR
Matrix Control Only
HDMI from source
wyrestorm.com
In the Box

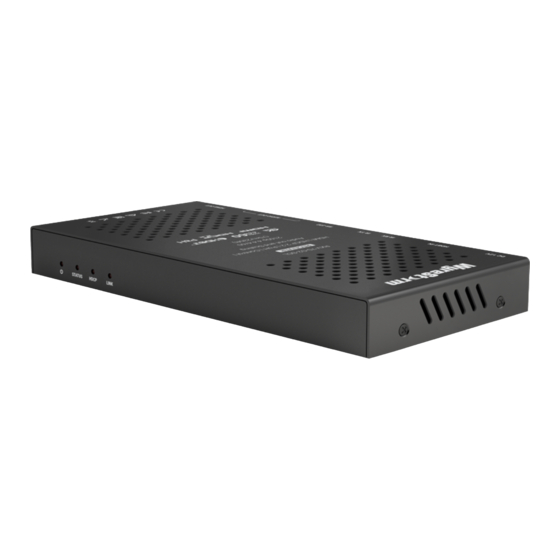

1x RXV-70-G2-SCL Receiver
2x Mounting Brackets
1x IR Emitter
1x IR Receiver
1x 3-pin Terminal Block
12V DC 1A Power Supply (US/UK/EU/AU)
1x Quickstart Guide (this document)
HDMI
IR RX
IR TX
RXV-70-G2-SCL
Analog Audio
Multiroom
Amplifier
Cat6a/7
1 of 4
Quickstart Guide
HDMI
IR RX
IR TX
RXV-70-G2-SCL
Digital Audio
Cat6a/7
AVR
KEY
HDMI
HDBaseT / Ethernet
MXV-0808-H2A-70 (Matrix)
Control
Power
Analog Audio
Digital Audio
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email:
support@wyrestorm.com
Surround
Sound System
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Wyrestorm RXV-70-G2-SCL
Summary of Contents for Wyrestorm RXV-70-G2-SCL
- Page 1 4K HDR 4:4:4 60Hz HDBaseT™ Receiver with Scaling, HDR Conversion & 2ch/S/PDIF Audio Breakout & PoH (4K: 70m/230ft) Quickstart Guide RXV-70-G2-SCL WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the installation process. In the Box IMPORTANT! Installation Requirements 1x RXV-70-G2-SCL Receiver •...
- Page 2 Outputs audio signal from source device 19-pin type A HDMI female HDMI Out Supports HDMI and DVI/D with adapter Copyright © 2020 WyreStorm Technologies | wyrestorm.com UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973) 2 of 4 RXV-70-G2-SCL Quickstart Guide | 200602 Email: support@wyrestorm.com...
- Page 3 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 4 Safety and Emission CE | FCC | RoHS | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information This product is covered by a 5-year limited parts and labor warranty. During this period there will be no charge for unit repair, component replacement or complete product replacement in the event of malfunction.
