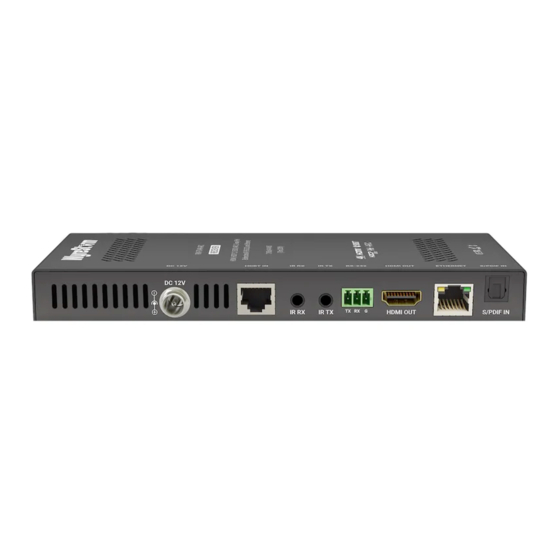

4K HDR HDMI-Over-HDBaseT Receiver
with ARC & Audio Return
RXV-70-4K-ARC
WyreStorm recommends reading through this document in its entirety to become familiar with the product's features prior to starting the
installation process.
IMPORTANT! Installation Requirements
• Visit the product page to download the latest firmware, document version,
additional documentation, and configuration tools.
• Read through the
Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
Basic Wiring Diagram
4K HLG Source
4K HDR Source
MX-1616-H2XC
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-H2 v2 Quickstart Guide | 190319
section for important wiring
AV Receiver
HDMI
HDMI
Digital Audio
In the Box
1x RXV-70-4K-ARC Receiver
1x IR Emitter
1x IR Receiver
1x 3-pin Terminal Block
2x Mounting Brackets
1x Quickstart Guide (this document)
4K HDR HDMI Display
HDBaseT Cat6/6a/7
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
1 of 4
Quickstart Guide
Note: HDMI or S/PDIF I/O
available for audio return
Audio
Return
Channel
Digital
HDMI
Audio
RXV-70-4K-ARC Receiver
KEY
HDMI
HDBaseT / Ethernet
Digital Audio
support@wyrestorm.com
Advertisement
Related Manuals for Wyrestorm RXV-70-4K-ARC
Summary of Contents for Wyrestorm RXV-70-4K-ARC
- Page 1 4K HDR HDMI-Over-HDBaseT Receiver with ARC & Audio Return Quickstart Guide RXV-70-4K-ARC WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the installation process. In the Box IMPORTANT! Installation Requirements 1x RXV-70-4K-ARC Receiver •...
- Page 2 Wiring and Connections WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
- Page 3 • Verify that the RS-232/Ethernet cables are properly terminated. • Verify that the HDBaseT cable is properly terminated following EIA568B • Verify that emitters/receivers are compatible with WyreStorm IR. standard. • If using an IR control system, verify that it is connected using the CAB-IR- •...
- Page 4 Safety and Emission CE | FCC | RoHS | RCM Note: WyreStorm reserves the right to change product specification, appearance or dimensions of this product at any time without prior notice. Warranty Information WyreStorm Technologies LLC warrants that its products to be free from defects in material and workmanship under normal use for a period of five (5) years from the date of purchase.
