QUICK START GUIDE

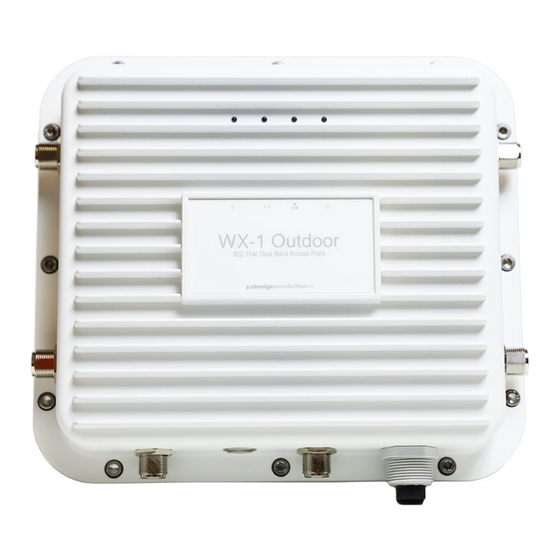

WX-1-O Access Point
802.11ac dual band
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the WX-1-O and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pakedge WX-1-O

  • Page 1 QUICK START GUIDE WX-1-O Access Point 802.11ac dual band Version 1.0...
  • Page 2: Table Of Contents

    Contents Package Contents Package Contents Please refer to the installation manual of your product. WX-1-O Mounting Options Powering Up the Access Point WX-1-O Configuring the Access Point • 802.11ac Dual Band Access Point Step 1: Login • 3x3 external outdoor antennas...
  • Page 3: Wx-1-O Mounting Options

    WX-1-O Mounting Options Pipe Mounting Figure Wall Mounting Figure NOTE: Please refer to the user manual for more detailed information regarding the installation and configuration of the access point.
  • Page 4: Powering Up The Access Point

    The Wireless Access Point should now be up and running under its default settings. It does not need to be configured to be functional. To make changes to the SSID and security settings, you need to access the WX-1-O using a web browser.
  • Page 5: Configuring The Access Point

    Connect a computer to the WX-1-O through an Ethernet cable. Enter 192.168.1.250 into the address bar of your web browser. You should see a login page. In the username box, type pakedge. In the password box, type pakedgea and click Login.
  • Page 6 Second Option You can also use the Where’s My WAP (WMW) software to change your IP addresses. You can download Where’s My WAP for free from the Dealer Portal section of the Pakedge website.
  • Page 7 This application will automatically scan the network for any Pakedge access point. Once the appli- Once you are logged in to the AP, hover over Network and click on LAN. cation finds the access points, you will have the option to change their IP addresses by clicking on the pencil icon.
  • Page 8: Step 2: Radio

    The first tab under Wireless is Radio. By default, the WX-1-O operates in Access Point Mode. The mode can be set for either the 2.4 or the 5 GHz band. The available modes for the WX-1-O are: In Access Point Mode, the WX-1-O broadcasts both 2.4 GHz and 5 GHz signals to stations that Access Point, WDS Root Access Point, WDS Repeater and WDS Bridge.
  • Page 9 Ethernet your wireless network coverage. A separate WX-1-O must be in WDS Root Access Point mode for port, to the client. A separate WX-1-O must be in WDS Root Access Point mode for this setting to this setting to operate.
  • Page 10: Step 3: Security Profiles

    Step 3: Security Profiles The most secure and common mode is WPA2-PSK. The next tab over is the Security Settings. You can change the SSID and security settings for 2.4 GHz and 5 GHz. This security is known to be the most secure and is compatible with all the latest devices. This setting is known to be the most secure and is compatible with all the latest devices.
  • Page 11: Step 4: Configuration

    Step 4: Configuration In this section, you can change the SSID name by applying the security profile that was set up in step 4. By default, the SSID is Pakedge2.4-1 and Pakedge5-1. You will have the option to change the name and add security profiles by selecting the options from the drop-down menu.
  • Page 12 Guest Network This will allow you to set up a guest network. Please see manual for further details. pakedgedevice&software 3847 Breakwater Avenue, Hayward, CA 94545-3606 Main: 650-385-8700 Fax: 650.685.5520 www.pakedge.com sales@Pakedge.com...
