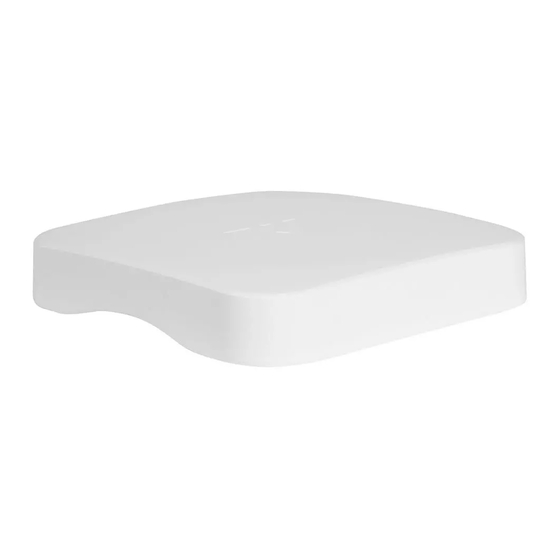

Pakedge WA-2200 Quick Start Manual
802.11ac 2x2 wave 2 access point
Hide thumbs
Also See for WA-2200:
- Quick start manual (12 pages) ,
- Solution manual (7 pages) ,
- User manual (16 pages)
Related Manuals for Pakedge WA-2200
Summary of Contents for Pakedge WA-2200
- Page 1 WA-2200, WA-2200-1 802.11ac 2x2 Wave 2 Access Point OvrC Enabled QUICK START GUIDE...
- Page 2 WA-2200 features • 802.11ac dual-band 2×2 wireless technology • Advanced Wave 2 wireless technology with MU-MIMO and beamforming • Powered by PoE (or optional 12VDC 1A power adapter, sold separately) • Single- to multi-AP cloud configuration with built-in OvrC • 1 Gigabit Ethernet port •...
-
Page 3: Mounting On A Ceiling
Planning the wireless network For tips on planning your network and positioning the access points, see: pkdge.co/wirelessdesign • Wireless Design Guide at pkdge.co/ap-bp • Best Practices for Access Point Placement Guide at Wireless Design Placement Guide Guide Mounting on a ceiling 1 Tape the included template against the desired mounting location, then mark the places to drill mounting holes and install the appropriate mounting hardware. - Page 4 2 Slide the tabs in the AP into the slots on the bracket, then slide until it’s locked. Removing the AP from the bracket To remove the AP from the bracket: 1 While pressing the AP against the bracket, slide the AP up slightly, then pull it away from the bracket.
- Page 5 Powering up The AP can be powered by either PoE or the optional AC power adapter (sold separately). To power up the access point: 1 Connect power using a POE injector or POE switch, or with the optional AC power adapter (sold separately). The access point should now be up and running with its default settings.
-
Page 6: Logging In To The Access Point
To log in to the access point: 1 Connect the access point to your PoE switch with an Ethernet cable. 2 Log in to your Pakedge router to find the IP address assigned to the access point under the DHCP Client Table. - Page 7 5 Enter and verify a new username and password (required) before continuing, then click Apply to complete the setup. Caution: For international models, you must change the Country Code (a drop-down list defaulting to GB - United Kingdom), to the specific country of operation. Note: pkdge.co/wa2200-ug Refer to the user guide (...
- Page 8 Registering your device with OvrC OvrC gives you remote device management, real-time notifications, and intuitive customer management, right from your computer or mobile device. Setup is plug-and- play, with no port forwarding or DDNS address required. To add this device to your OvrC account: Mobile Access Point Apps...
-
Page 10: Technical Support
Technical Support For technical help: www.pakedge.com/portal support@pakedge.com (650) 385-8703 Find details of this product’s 3-Year Limited Warranty at snapav.com/warranty or request a paper copy from Customer Service at (866) 424-4489. Find other legal resources, such as regulatory notices and patent information, at snapav.com/legal...
