Charger Assembly and Mounting

The CR7018 chargers are designed to charge the B718 batteries. Customers can purchase
5 or 10-bay chargers. Two 5-bay chargers are mechanically interlinked to create the 10-bay
charger. 5 and 10-bay chargers use the same power supply (CRA-P71), but have different
cables: the 5-bay charger has a single, linear cable where the 10-bay charger requires a
two-way splitter cable. Charging stations can be mounted on a vertical mount accessory or to
the wall, which can be seen in the sections below.
Note: Use only cables supplied by Code to ensure proper communication and adequate
charge rates. Only Code cables are guaranteed to work. Damage caused using third-party
cables will not be covered under warranty.
5-Bay Charger Installation
The 5-bay charging station will hold and charge 5 batteries from zero to full charge within 3
hours. The CRA-A172 charger kit comes with a 5-bay charger, cable and power supply.

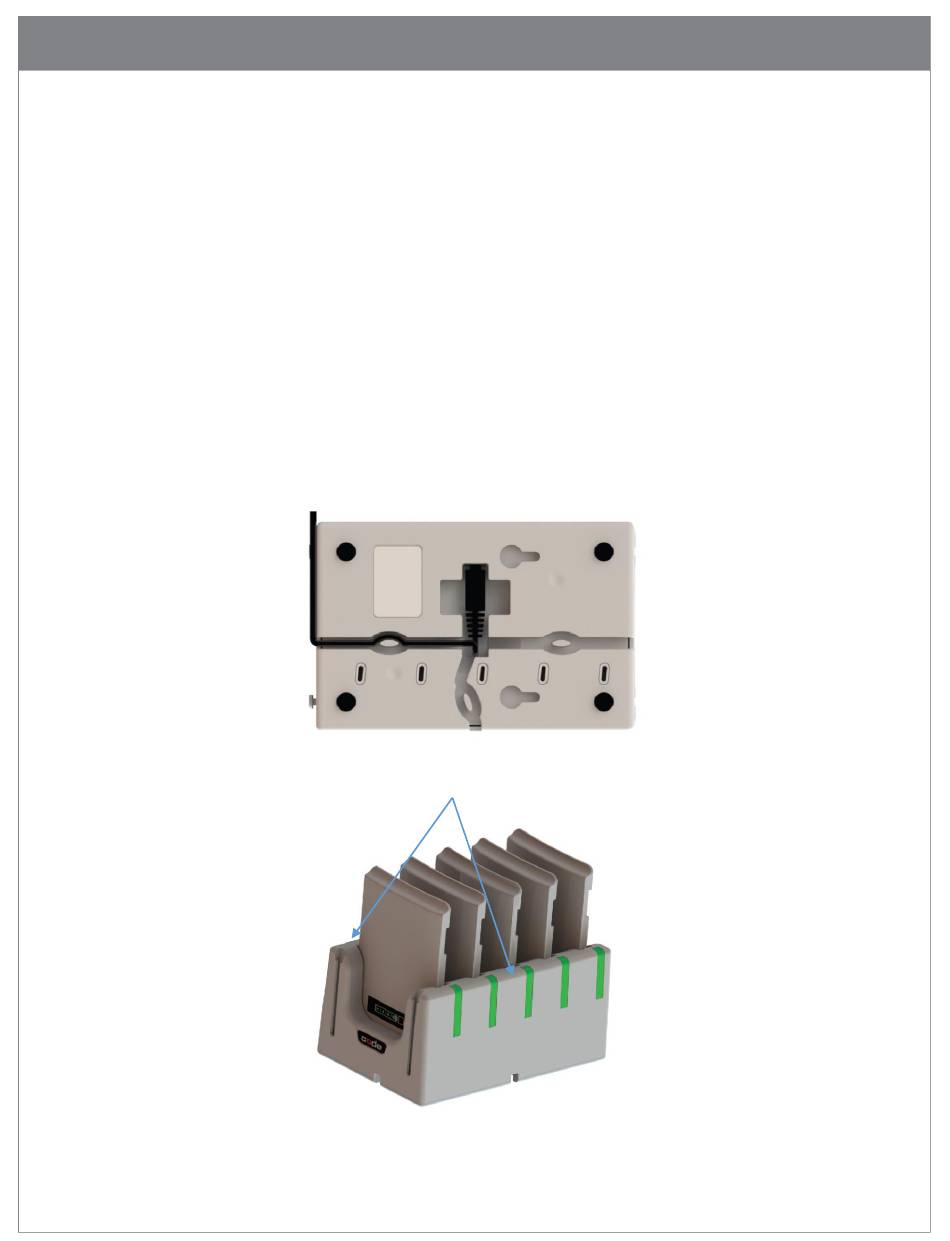

Insert the cable into the female port on the bottom-side of the charger. Route the cable
through the grooves and connect it to the power supply.
LED charge indicators reside on both sides of each battery bay to quickly check the charge
status from any angle.
