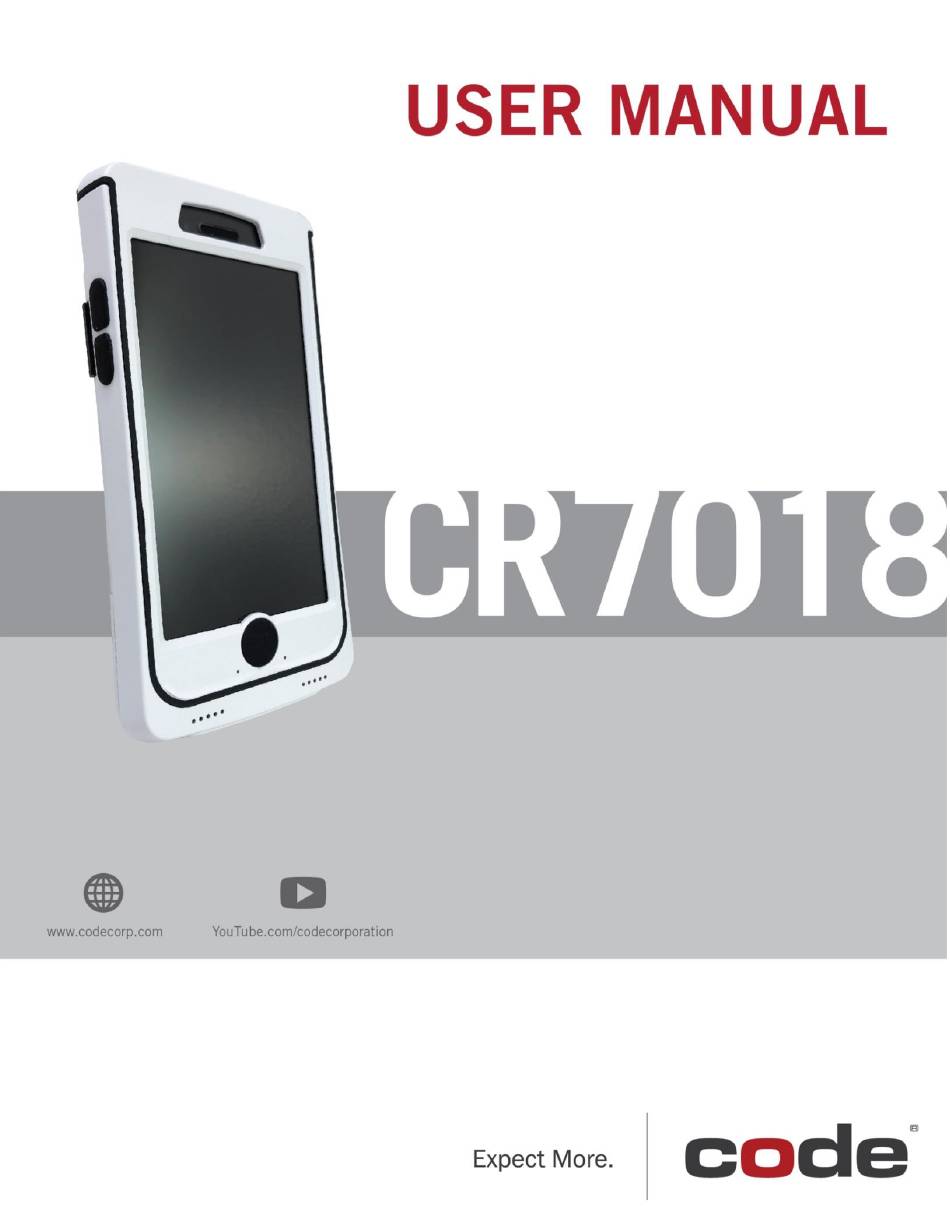

- Page 1 MANUAL VERSION 01 RELEASE DATE: MARCH 2019 ® iPhone is a registered trademark of Apple Inc. Dragontrail™ is a trademark of Asahi Glass, Limited. D032263 CR7018 User Manual...
- Page 2 Note from the Code Team Thank you for purchasing the CR7018! Healthcare’s first purpose-built battery backup case is here. ® Approved by infection control specialists, the CR7018 is fully enclosed and built with CodeShield plastics, known to withstand the harshest chemicals used in the industry. Made to protect and extend the battery life of Apple’s iPhone...
-
Page 3: Table Of Contents
Battery Charging and Best Practices ........................11 Maintenance and Troubleshooting ..................12 Approved Disinfectants ........................ 12 Routine Cleaning and Disinfection ....................12 Troubleshooting ........................... 12 Contact Code for Support ......................12 Warranty..........................13 Legal Disclaimer ........................13 Statement of Agency Compliance ..................14... -
Page 4: Case And Accessories
Case and Accessories The following tables summarize the parts included within the CR7018 product line. More product Code’s website. details can be found on Product Kits Part Number Description iPhone 7 CR7018-PKXXX-7 CR7018 (iPhone 7 Case, Light Gray, Palm), Battery CR7018-PKXXU-7 CR7018 (iPhone 7 Case, Light Gray, Palm), Battery, 3-ft. -
Page 5: Product Assembly
Read the following information before unpacking or assembling the CR7018 and its accessories. Inserting iPhone The CR7018 houses Apple’s iPhone 7 and 8 models. Please note that the top plate will vary depending on the iPhone model. iPhone 8 top plate... - Page 6 Pull the top plate toward you, away from the bottom carriage. Do NOT try to slide it all the way up. Before inserting the iPhone, thoroughly clean the iPhone screen and both sides of the glass screen protector. Screen responsiveness will be hindered if the screens are dirty. Insert the iPhone into the top plate;...
- Page 7 Do NOT try to slide it down from the top. Your CR7018 case will come with two screws and a 1.3 mm hex key. For larger deployments, it is recommended to procure a specialized tool for quick assembly.
-
Page 8: Inserting/Removing Batteries
Inserting/Removing Batteries Only Code’s CRA-B718 batteries are compatible with the CR7018 case. Insert a B718 battery into the cavity; it will click into place. The fuel gauge LEDs will light up, indicating the battery’s state of charge. If the LEDs do not light up, fully charge the battery before using. - Page 9 Charging stations can be mounted on a vertical mount accessory or to the wall, which can be seen in the sections below. Note: Use only cables supplied by Code to ensure proper communication and adequate charge rates. Only Code cables are guaranteed to work. Damage caused using third-party cables will not be covered under warranty.
- Page 10 10-Bay Charger Installation The 10-bay charging station will hold and charge 10 batteries from zero to full within five hours. The CRA-A175 charger kit will come with two 5-bay chargers, a splitter cable adapter and power supply. Interlink the two, 5-bay chargers by sliding one into the other. The split cable adapter will have one longer end.
- Page 11 #6 or M3 screw with a head diameter less than 9 mm and head height less than 2.5 mm. Code does not provide these tools. The following URLs will direct you to options suitable for mounting the 5 and 10-bay chargers to the wall.
-
Page 12: Battery Charging And Best Practices
The battery can also be charged within the CR7018 case via Code’s micro-USB cable (CRA-C34). The case will charge faster if the USB cable is plugged into Code’s USB wall adapter (CRA-P4). Ensure the USB adapter is securely fit into an electrical outlet. It will take approximately 3 hours to fully charge using this method. -
Page 13: Maintenance And Troubleshooting
The battery must charge up to 30 minutes before the fuel gauge will reestablish communication. Battery Best Practices To efficiently use the CR7018 case and battery, the iPhone should be kept at or near full charge. The B718 battery should be used for power draw and swapped when nearly depleted. -
Page 14: Warranty
Code Corporation does not assume any product liability arising out of or in connection with the application or use of any product or application described herein. -
Page 15: Statement Of Agency Compliance
Statement of Agency Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
