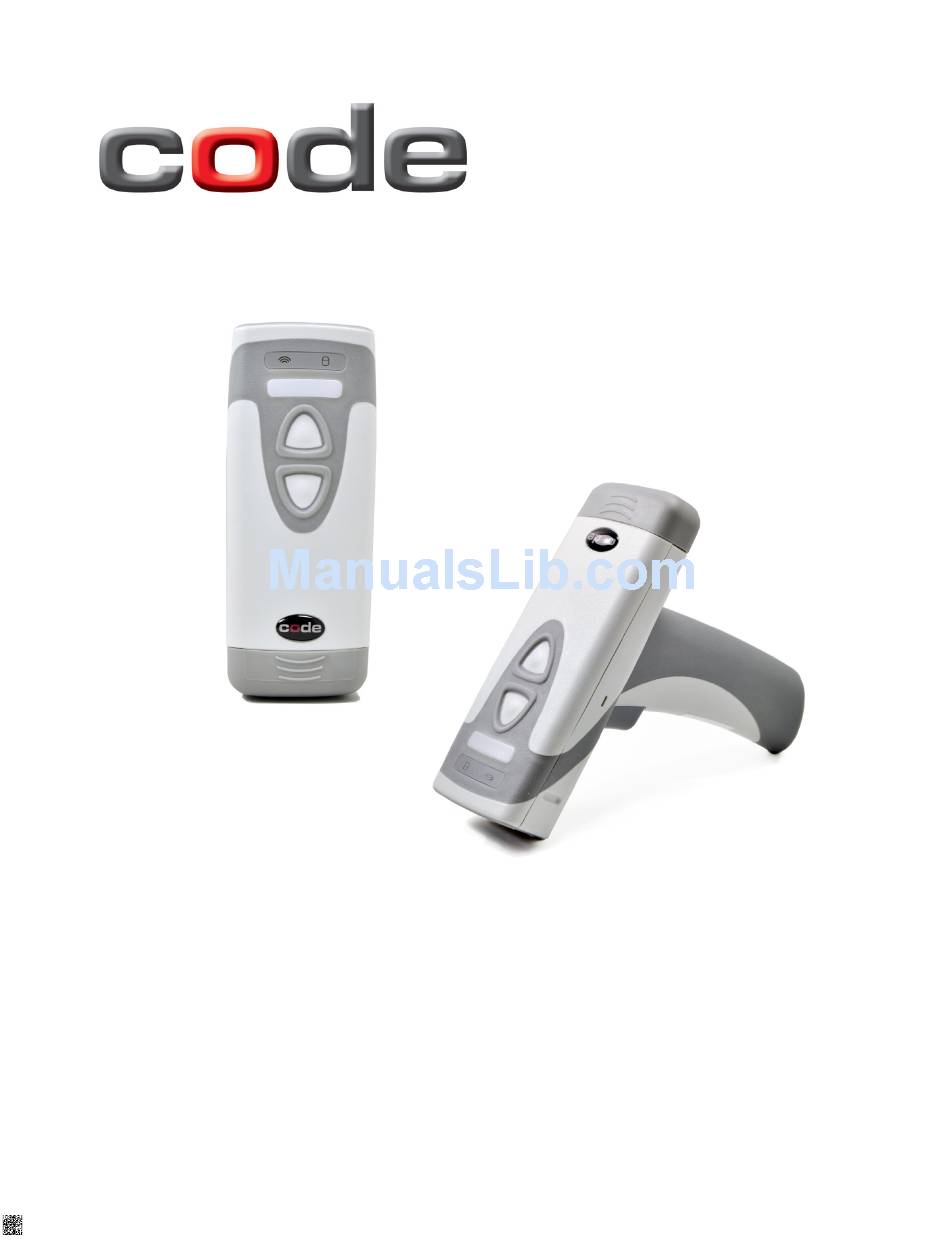

- Page 1 User Manual Code Reader™ 2600 Manual Version 01 Release Date: July 2012 C007964_01_CR2600_User_Manual C007964_01_CR2600_UserManual...
-
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The Code Reader™ 2600 (CR2600) has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co- located or operate in conjunction with any other antenna or transmitter. - Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes have been made.
-
Page 4: Table Of Contents
Table of Contents 1.0 - Unpacking................................1 2.0 - Battery Installation and Removal ..........................1 3.0 - Charging the CR2600 ............................... 1 4.0 - Fuel Gauge Status Indicator ............................ 3 5.0 - Powering On/Off the Reader ........................... 3 6.0 - Establishing a Bluetooth® Connection ........................4 7.0 - Communicating in USB Mode .......................... -
Page 5: Unpacking
1.0 - Unpacking Remove the CR2600 from its packing and inspect it for damage. If the reader was damaged during shipping, please call Code at (801) 495-2200. Based on the kit purchased, a combination of the following components will be included with the CR2600:... - Page 6 3.0 - Charging the CR2600 Cont. 2. Plug the USB cable into the computer’s USB port or the power adapter into the wall outlet. 3. Remove the plastic ‘Remove Before Use’ cap, and place the reader into the Charging Station. Note: Batteries ships with approximately 50% battery life and should be completely charged before initial use.
-
Page 7: Fuel Gauge Status Indicator
4.0 - Fuel Gauge Battery Status Indicators Check the Battery Life Press the fuel gauge button to determine remaining battery life. If the battery has less then 10% capacity, the first LED will flash rapidly. For 25% or greater capacity, the LEDs will flash ON for 4 seconds. Fuel Gauge Indicators Fuel Gauge Button Fuel Gauge Status Indicator While Charging... -
Page 8: Establishing A Bluetooth® Connection
Mode Switch on the Charger/Modem Station, to Bluetooth mode (the direction of the arrow). 2. Scan the QuickConnect Code located on the front of the Charging Station with embedded CodeXML® modem or on the external CodeXML® M3 Modem. For additonal CodeXML® M3 Modem configuration information, please reference the CodeXML® M3 Modem QuickStart Guide. -
Page 9: Batch Mode Via Usb
7.1 - Batch Mode via USB 1. The CR2600 can be configured for Batch Mode to capture and transmit data over standard USB communication modes. Select and scan one of the following configuration codes that will best suits data storage needs: Batch Mode Enable Batch Mode Enable - Scan and Log... -
Page 10: Attaching The Codexml® M3 Modem
6 to establish the Bluetooth connection. USB Cable RS232 Cable 9.0 - Suffix Enter A Suffix Enter character is disabled by default. To enable Suffix Enter, please scan the following configuration code: For more configuration options, download the CR2600 Configuration Guide from www.codecorp.com C007964_01_CR2600_User_Manual... -
Page 11: Using The Cr2600
Press and hold one of the buttons or trigger on the CR2600, the two blue bars emitting from the reader are used for targeting. Center the blue bars in the middle of a bar code. The optimal reading distance from reader to bar code is approximately 4.0” (10 cm). -
Page 12: Reader Feedback
The following are symbologies that have a default of OFF. To turn symbologies on or off, scan the symbology bar codes located in the CR2600 Configuration Guide located on our website at http://www.codecorp.com. Code 39 Checksum Code 39 Extended Full ASCII Data Matrix Inverse UPC-E Expansion... -
Page 13: Reader Id And Firmware Version
Example: Xap/i3000300006040010002363A06D-SD+SQ Note: Code will periodically release new firmware for CR2600 readers. For information on latest firmware versions, call Code at (801) 495-2200. To upgrade firmware, please visit our website at http://www.codecorp.com/codesupport.php and follow instructions provided. -
Page 14: Cr2600 Dimensions
16.0 - CR2600 Dimensions CR2611 CR2612 16.1 - Charging Station Dimensions C007964_01_CR2600_User_Manual... -
Page 15: Cr2600 Maintenence
To modify any default settings, download the CR2600 Configuration guide at www.codecorp.com/files.php and scan the appropriate code. For user specific configurations, contact Application Engineering at Code appeng@codecorp.com. For all returns Code will issue an RMA number which must be placed on the packing slip when the reader is returned. Visit http://www.codecorp.com/codesupport.php for more information. -
Page 16: Warranty
Products must be shipped in the original or comparable packaging, with shipping and insurance charges prepaid. Only parts listed in the original RMA should be sent and will be accepted. Code will pay for return shipping and insurance of repaired or replacement products worldwide.
