Hardware Setup
1. Ensure the power switch is set in the off position. Connect the included power
adapter from an available AC power outlet to the Power Adapter Port on the back of
the SATDUP11.
2. Using an included SATA Cable, attach the HDD you would like to duplicate to the

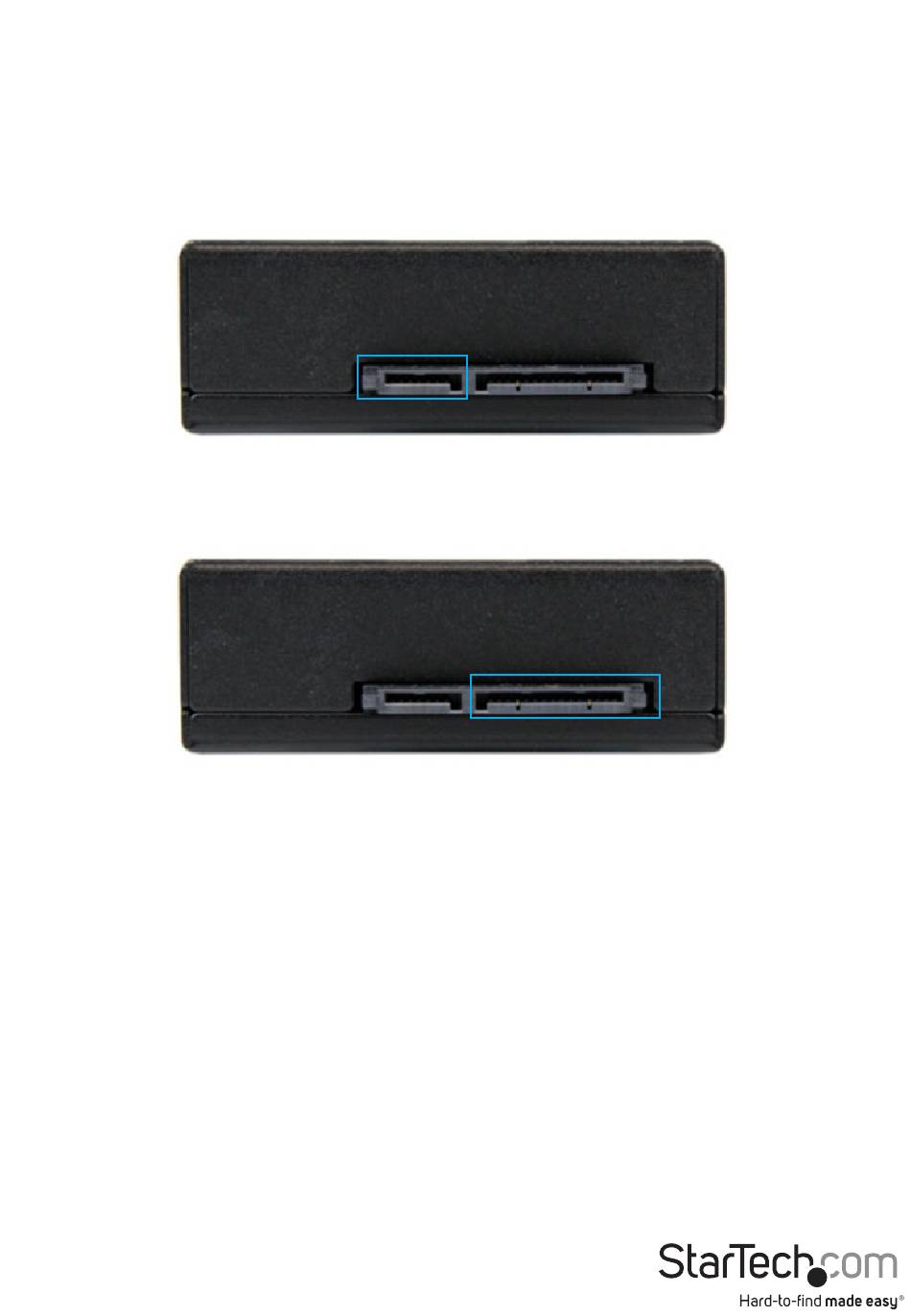

source port. (SATA port on the left identified as source, see below).
3. Using an included SATA Cable, connect the HDD you would like to have over
written, or erased to the target port. (SATA port on the right identified as source, see
below)
Note: For added protection, and heat insolation the source and target drives can be
placed on included HDD Pads.
WARNING! Any Data remaining on the target drive will be over written.
4. Press the power switch to the "On" position, the SATDUP11 is now ready to use.
Instruction Manual
3
