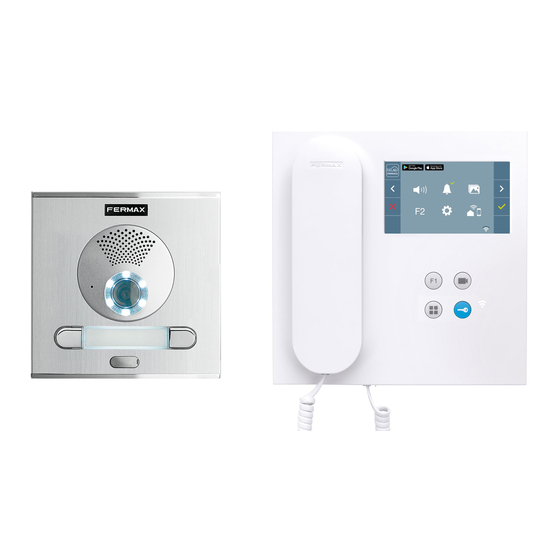

Fermax DUOX PLUS CITYLINE VEO Quick Start Manual

Fermax DUOX PLUS CITYLINE VEO Quick Start Manual

Wifi video kit
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 10
KIT VIDEO DUOX PLUS CITYLINE VEO WIFI
DUOX PLUS CITYLINE WIFI VEO VIDEO KIT
KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI
DUOX PLUS CITYLINE WIFI VEO VIDEO-SET
KIT VÍDEO z PLUS CITYLINE VEO WIFI
GUÍA INICIO RÁPIDA
QUICK START GUIDE
GUIDE DE MISE EN MARCHE RAPIDE
SCHNELLSTARTANLEITUNG
GUIA DE INICIAÇÃO RAPIDA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUOX PLUS CITYLINE VEO and is the answer not in the manual?

Questions and answers

Summary of Contents for Fermax DUOX PLUS CITYLINE VEO

  • Page 1 KIT VIDEO DUOX PLUS CITYLINE VEO WIFI DUOX PLUS CITYLINE WIFI VEO VIDEO KIT KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI DUOX PLUS CITYLINE WIFI VEO VIDEO-SET KIT VÍDEO z PLUS CITYLINE VEO WIFI GUÍA INICIO RÁPIDA QUICK START GUIDE...
  • Page 2: Instalación

    La línea blanca abajo del icono indica en la función en la que nos encontramos. Seleccionar con el icono deseado y confirmar con Cod. 970173b V08_20 KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 3 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 francés campana campana DESACTIVADO ruso italiano hindi húngaro hebreo croata Campana (LARGO) KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 4: Características Técnicas

    Distancia máxima (A) Fuente/Filtro Distancia máxima (B) Fuente/Filtro sin fuentes adicionales hasta Placa (Placa-Abrepuertas) (i) hasta el Terminal más alejado - (i) Para abrepuertas de 12Vdc y consumo máx. 250mA, alimentador desde el amplificador. KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 5 Nota: Este documento muestra los conceptos más básicos para la rápida puesta en marcha, para más información descargar los manuales en www.fermax.com - Placas Cityline Video Duox Plus cod. 970050. - Monitor Duox Plus Veo WIFI cod. 970166. - Libro Técnico Duox Plus cod. 970122. KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 6: Ajustes De Usuario

    AJUSTES DE USUARIO 1. EMPAREJAMIENTO. Desvío de llamada. El monitor VEO WIFI DUOX PLUS permite acceder a nuevos servicios ofrecidos por Fermax a través de su propia nube como el de desvío de llamada. Para poder disfrutar de dicho servicio el primer paso es conectar el monitor a Internet mediante el proceso llamado de emparejamiento.
  • Page 7 La aplicación y el monitor comenzarán a sincronizarse entre sí. El led blanco WIFI del monitor comenzará a parpadear. Se visualiza la pantalla para añadir la vivienda: - Nombre - Imagen (opcional) Introducir datos y pulsar SIGUIENTE. KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 8 (desconectado de Internet). Autoencendido Nota: Este capítulo presenta los conceptos más básicos para la rápida puesta en marcha, para más información descargar el manual Aplicación DUOX PLUS Blue para móvil cod. 970156 en www. fermax.com. KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 9: Parámetros De Usuario

    Así mismo podría obligar a colocar junto a la placa de calle un cartel indicando que el monitor puede capturar imágenes. Puede descargarlo en https://www.fermax.com/spain/corporate/utilidades.html. Seleccionar con el icono Pulsar para activar/ y confirmar con desactivar la función. KIT VIDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 10: Installation

    INSTALLATION INSTALLATION OF OUTDOOR PANEL AND MONITOR CONFIGURATION DUOX PLUS WIFI VEO MONITOR The monitor supplied in the kit comes PRE-PROGRAMMED from the factory. If the kit has 2 lines, both monitors, they are PRE-PROGRAMMED. CONTROL BUTTONS Digital menu for internal parameter settings and configuration. (When the monitor has already been programmed) In conversation, press to open the door.
  • Page 11 SETTINGS 1. MONITOR SETTINGS VIDEO SETTINGS With an image on the monitor, by pressing the button , (or upon receiving a call without establish communication), press the key to show the video settings. Select the settings option and increase or decrease with AUDIO SETTINGS While the audio channel is open, press the button and a menu screen appears for this setting.
  • Page 12: Technical Features

    3. ENCODING PANELS* Whenever there is more than one panel, you must program the number of panels. 4. CAMERA FOCUS / LOCK RELEASE ACTIVATION TIME* To adjust the camera image or adjsut the lock-release activation time. * See Voice assisted configuration in button panels cod. 970048. Instructions included with this equipment.
  • Page 13 SP P1 PRG. SW1 Notice: This document shows the basic concepts for a quick start-up. For more information download the manuals at www. fermax.com - Cityline Video Duox Plus Panels cod. 970050. - Duox Plus WIFI Veo Monitor cod. 970166.
  • Page 14: User Settings

    1. PAIRING. Call divert. The VEO WIFI DUOX PLUS monitor allows access to new services offered by Fermax using its own cloud such as call forwarding. In order to enjoy this service the first step is to connect the monitor to the Internet via a process called pairing.
  • Page 15 Correspondence between push buttons and navigation menu. - The white line at the bottom of the icon indicates that the function is currently in effect. _ _ : _ _ _ _ : _ _ Select the connectivity menu on the monitor. Once the connectivity menu is selected, confirm with to enter it.
  • Page 16 Internet). Auto-on Note: This section goes through the most basic steps in quick commissioning. For more informa- tion, please download the DUOX PLUS Blue mobile application manual, code: 970156 at www. fermax.com. DUOX PLUS CITYLINE WIFI VEO VIDEO KIT...
  • Page 17: User Parameters

    This feature is deactivated by default in all monitors, although can be activated at your own responsibility. Furthermore, the legislation may force to place a sign next to door stations, indicating that monitors can capture images. You can download it at https://www.fermax.com/intl/en/corporate/utilities.html. With select the icon Press...
  • Page 18: Boutons De Commande

    à l’écran se manipulent à l’aide des boutonspoussoirs correspondants du moniteur. La ligne blanche sous l’icône indique la fonction dans laquelle nous nous trouvons. Sélectionnez avec l’icône désiré et validez à l’aide de Code 970173b V08_20 KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 19 1 2 3 4 1 2 3 4 1 2 3 4 31...62 1 2 3 4 1 2 3 4 Français campana Russe Italien Hindi Hongrois Hébreux Croate Cloche cloche DÉSACTIVÉ (LONG) KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 20: Caractéristiques Techniques

    Alimentation / filtre jusqu’à la Alimentation/filtre jusqu’au supplémentaires platine (platine-gâche électrique) (1) terminal le plus éloigné - (1) Pour une gâche de 12 Vcc avec une consommation max. de 250 mA, alimentation depuis l'amplificateur. KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 21 Remarque : ce document présente les concepts les plus basiques, qui permettent une mise en marche rapide. Pour plus de renseignements, téléchargez les manuels sur www.fermax.com - Platines vidéo Cityline Duox Plus code 970050. - Moniteur Duox Plus Veo WIFI code 970166. - Manuel Technique Duox Plus 970122. KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 22 RÉGLAGES D’UTILISATEUR 1. APPAIRAGE. Transfert d’appel. Le moniteur VEO WIFI DUOX PLUS permet d'accéder aux nouveaux services proposés par Fermax via son propre cloud, comme le transfert d'appel. Pour profiter de ce service, la première étape consiste à connecter le moniteur à Internet via le processus d’appairage.
  • Page 23 L'application et le moniteur commencent à se synchroniser. La led blanche WIFI du moniteur commence à clignoter. L'écran d'ajout d'appartement s'affiche : - Nom - Image (facultatif) Ma Maison Entrer les données et appuyez sur SUIVANT. KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 24 Note : Ce chapitre présente les notions de base pour une mise en service rapide, pour plus d'infor- mations, téléchargez le manuel DUOX PLUS Blue Application pour la morue mobile code. 970156 à l'adresse www.fermax.com. KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 25: Paramètres Utilisateur

    De la même façon, il peut être obligatoire de placer à côté de la platine de rue une pancarte indiquant que le moniteur peut capturer des images. Vous pouvez télécharger cette affiche sur le site suivant https://www.fermax.com/intl/fr/corporate/utilites.html. Appuyez sur pour activer/ Sélectionnez avec l’icône désactiver la fonction. et validez avec KIT VIDÉO DUOX PLUS CITYLINE VEO WIFI...
  • Page 26 INSTALLATION TÜRSTATION- UND MONITORINSTALLATION KONFIGURATION DUOX PLUS VEO WIFI MONITOR Der im Set mitgelieferte Monitor ist BEREITS WERKSSEITIG programmiert. Beim Set mit 2 Linien sind die Monitore auch VORPROGRAMMIERT. BEDIENTASTEN Digitales Menü zur Vornahme der Einstellung und Konfiguration der internen Parameter. (Falls der Monitor programmiert ist.) Im Sprechmodus drücken, um die Tür zu öffnen.
  • Page 27 EINSTELLUNGEN 1. MONITOREINSTELLUNGEN VIDEOEINSTELLUNGEN Wenn ein Bild auf dem Monitor eingeblendet wird (oder bei einem eingehenden Anruf ohne die Kommunikation zu starten) zuerst die Taste und anschließend die Taste drücken, um die Videoeinstellungen einzublenden. Die gewünschte Option auswählen und die Einstellungen mit den Tasten erhöhen oder verringern.
  • Page 28: Technische Eigenschaften

    3. TÜRSTATIONEN KONFIGURIEREN* Falls mehr als eine Türstation vorhanden ist, müssen die Türstationen programmiert werden, damit sie Nummern aufweisen. 4. KAMERAFOKUS / AKTIVIERUNGSZEIT DES TÜRÖFFNERS* Um das Kamerabild oder die Aktivierungszeit des Türöffners einzustellen. * Siehe sprachgeführte Konfiguration bei Türstationen mit Tastenmodulen, Kode 970048. Die Anleitung ist in der Geräteverpackung enthalten.
  • Page 29 PRG. SW1 Hinweis: Dieses Dokument veranschaulicht die grundlegenden Konzepte für eine schnelle Inbetriebnahme der Anlage. Weitere Information können Sie den Handbüchern auf www.fermax.com entnehmen. - Türstationen Cityline Video Duox Plus, Kode 970050. - Duox Plus Veo WIFI Monitor , Kode 970166.
  • Page 30 BENUTZER-EINSTELLUNGEN 1. PAIRING. Rufweiterleitung. Der VEO WIFI DUOX PLUS Monitor ermöglicht den Zugriff auf neue von Fermax angebotene Services über eine eigene Cloud, wie z.B. die Rufweiterleitung. Um diesen Service in Anspruch nehmen zu können, ist der erste Schritt, den Monitor über den sogenannten Pairing-Prozess mit dem Internet zu verbinden.
  • Page 31 Zuordnung zwischen Drucktasten und Navigationsmenü. Die weiße Linie unter dem Symbol zeigt die Funktion an, in der wir uns befinden. Wählen Sie das Einstellungsmenü für die Verbindung auf dem Monitor. _ _ : _ _ _ _ : _ _ Sobald das Verbindungsmenü...
  • Page 32 Eigenstart Internet getrennt) zurück. Hinweis: In diesem Kapitel werden die wichtigsten Grundlagen für eine schnelle Inbetriebnahme beschrieben. Weitere Informationen finden Sie im DUOX PLUS Blue Application Handbuch für mobile Anwendungen. Code 970156 unter www.fermax.com. DUOX PLUS CITYLINES WIFI VEO VIDEO-SET...
  • Page 33 Verantwortung aktiviert werden. Ebenfalls könnte diese Verordnung zwingend vorschreiben, dass ein Warnschild neben der Türstation zu platzieren ist, welches auf die Bildspeicherfunktion des Monitors hinweist. Ein solches Musterschild können Sie sich von https://www.fermax.com/intl/de/pro/online-support.html downloaden. Mittels das Symbol Drücken Sie...
  • Page 34 A linha branca debaixo do ícone indica a função em que nos encontramos. Selecionar com o ícone desejado e confirmar com Cód. 970173b V08_20 KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 35 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 francês campana Sino russo italiano hindi húngaro hebreu croata sino DESATIVADO (LONG) KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 36 Fonte/Filtro até à Botoneira Fonte/Filtro até ao (Botoneira-Trinco) (i) Terminal mais afastado - (i) Para trincos de 12 VDC e consumo máx. de 250 mA, alimentador a partir do amplificador. KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 37 PRG. SW1 Nota: Este documento apresenta os conceitos mais básicos para a rápida colocação em funcionamento; para mais informação, fazer o download dos manuais em www.fermax.com - Botoneiras Cityline Vídeo Duox Plus cód. 970050. - Monitor Duox Plus Veo WIFI cód. 970166.
  • Page 38 AJUSTES DE USUÁRIO 1. EMPARELHAMENTO. Reencaminhamento de chamadas. O monitor VEO WIFI DUOX PLUS permite aceder aos novos serviços oferecidos pela Fermax através da sua própria nuvem, como o reencaminhamento de chamadas. Para usufruir deste serviço o primeiro passo é conectar o monitor à Internet através do processo denominado emparelhamento.
  • Page 39 A aplicação e o monitor começarão o processo de sincronização. O LED WIFI branco no monitor começará a piscar. Visualiza-se o ecrã para adicionar a vivenda: - Nome - Imagem (opcional) A minha casa Insira os dados e prima SEGUINTE. KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 40 (desligado da Internet). Nota: Este capítulo apresenta os conceitos mais básicos para uma colocação em funcionamento rápida, para mais informações descarregue o manual Aplicação DUOX PLUS Blue para código móvel. 970156 em www.fermax.com. KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 41 Também obriga a colocar ao lado da placa de rua um aviso indicando que o monitor pode capturar imagens. Pode ser descarregado em https://www.fermax.com/portugal/corporate/utilidades.html. Premir para ativar/ Selecionar com , o ícone desativar a função. e confirmar com KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 42 NUTZMODELLE: ES1187384U, ES1141495U, FR3038192, DE202016000632U1, CN205987229(U). Este produto está protegido com as seguintes patentes e modelos de utilidade: PATENTES: US 9215410, US 9762852, BE1023440, AU2014203706. MODELOS DE UTILIDADE: ES1187384U, ES1141495U, FR3038192, DE202016000632U1, CN205987229(U). KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 43 Das erworbene Gerät fällt unter die Richtlinien 2012/19/EU über Elektro- und Elektronik-Altgeräte. Weitere Information: El O equipamento que adquiriu está identificado de acordo com a Diretiva 2012/19/UE relativa aos resíduos de equipamentos elétricos e eletrónicos. Mais informação: KIT VÍDEO DUOX PLUS CITYLINE VEO WIFI...
  • Page 44 Avd. Tres Cruces, 133 46017 Valencia Spain Para más información, visitar www.fermax.com Contacto: tec@fermax.com www.fermax.com/contact For extended information, visit www.fermax.com Contact: tec@fermax.com www.fermax.com/contact Pour de plus amples renseignements, rendez-vous sur www.fermax.com Contact : tec@fermax.com www.fermax.com/contact Für weitere Information siehe www.fermax.com Kontakt: tec@fermax.com...
