Owner's Operation and Instruction Manual
THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU
TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
• Read all instructions carefully before installing or
operating this stove. Failure to follow instructions may
result in property damage, bodily injury, or even death.
• Note: It is recommended installation be completed by
a qualified heating equipment installer!
• Refer to markings on stove labels for additional
information.
• Contact your local building or fire officials about
obtaining permits, restrictions, and installation
inspection requirements in your area.
• Safety Notice: If this stove is not properly installed, a
house/building fire may result. For your safety, contact
local or municipal building or fire officials about permits,
restrictions, and installation requirements for your area.

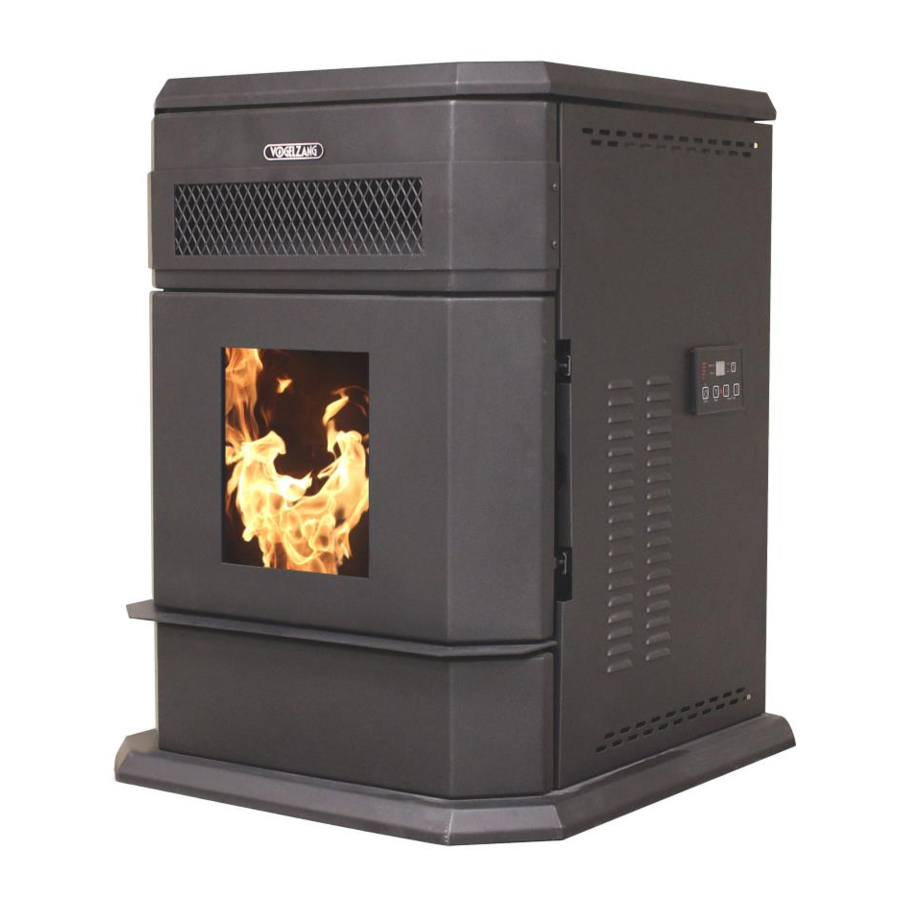

MODEL: AP5790
SAVE THESE INSTRUCTIONS
Ce produit peut vous exposer à des produits chimiques, y compris le
monoxyde de carbone, qui est connu dans l'État de Californie pour causer
le cancer, des malformations congénitales et / ou d'autres problèmes de
reproduction. Pour plus d'informations, visitez www.P65warnings.ca.gov
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon monoxide, which
is known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
United States Stove Company
227 Industrial Park Road
South Pittsburg, TN 37380
Certified to: ASTM E 1509, 2004, and Certified
to: ULC-S627-00, and (UM) 84-HUD
Approved for installation in mobile homes.
This unit is not intended to be used as a
primary source of heat.
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emission standards using wood pellets.
852421B-4505H
