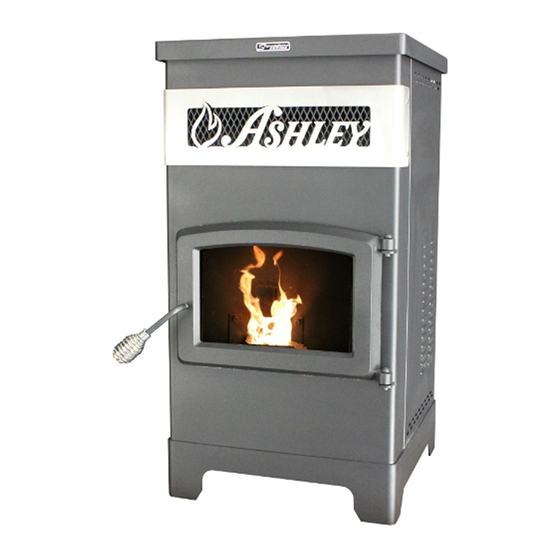

Ashley AP5770 Owner’s Instruction And Operation Manual
  1. Manuals
  2. Brands
  3. Ashley Manuals
  4. Stove
  5. AP5770
  6. Owner’s instruction and operation manual

Ashley AP5770 Owner’s Instruction And Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Instruction and Operation Manual
Model Number:
AP5770
Report #: F20-578
Certified to ASTM E1509-12 (2017)
and ULC-S627-00-REV1
Mobile Home Approved
* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.
Save These Instructions In A Safe Place For Future Reference.
SAFETY NOTICE: If this heater is not properly installed, a house fire may result.
For your safety, follow the installation instructions. Never use make-shift
compromises during the installation of this heater. Contact local building or
fire officials about permits, restrictions and installation requirements in your
area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.
CAUTION! Please read this entire manual before you install or use your new room
heater. Failure to follow instructions may result in property damage, bodily injury,
or even death. Improper Installation Will Void Your Warranty!
U.S. Environmental Protection Agency
Certified to comply with 2020 particulate
emissions standards.
THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.
© 2021 United States Stove Company, 227 Industrial Park Rd., South Pittsburg, TN 37380
R
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including carbon
monoxide, which is known to the State of California to cause
cancer, birth defects, and/or other reproductive harm. For
more information, go to
852418E-1203K
www.P65warnings.ca.gov
Ph. 800-750-2723

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP5770 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ashley AP5770

Summary of Contents for Ashley AP5770

  • Page 1 Owner’s Instruction and Operation Manual Model Number: AP5770 Report #: F20-578 Certified to ASTM E1509-12 (2017) and ULC-S627-00-REV1 Mobile Home Approved 852418E-1203K * All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary. Save These Instructions In A Safe Place For Future Reference.

  • Page 2: Specifications

    Your pellet stove has been approved for installation in the USA and Canada. It may also be installed in a manufactured or mobile home. This manual describes the installation and operation of the Ashley, AP5770 wood heater. This heater meets the 2020 US Environmental Protection Agency’s wood pellet emissions limits for wood heaters sold after May 15, 2020.

  • Page 3: Installation Checklist

    INSTALLATION CHECKLIST Your Wood Stove should be installed by a qualified installer only. An NFI qualified Installer can be found at www.nficertified.org/public/find-an-nfi-pro/ CUSTOMER SERVICE 1-800-750-2723 ext 5050 Text to 423-301-5624 Email to: Customerservice@usstove.com COMMISSIONING CHECKLIST This Checklist is to be completed in full by the qualified person who installs this unit. Keep this page for future reference.

  • Page 4: Installation

    INSTALLATION SAFETY NOTICE ATTENTION: • IF THIS STOVE IS NOT PROPERLY INSTALLED, • A WORKING SMOKE DETECTOR MUST BE A HOUSE FIRE MAY RESULT. TO REDUCE THE INSTALLED IN THE SAME ROOM AS THIS RISK OF FIRE, FOLLOW THE INSTALLATION PRODUCT.

  • Page 5: Floor Protection

    INSTALLATION IMPROPER INSTALLATION Rear 1” 25 mm The use of other components other than stated 6” 153 mm herein could cause bodily harm, heater damage, Side 8” 203 mm and void your warranty. The manufacturer will not be held responsible for damage caused by the 6”...

  • Page 6: Outside Air Supply

    INSTALLATION OUTSIDE AIR SUPPLY • The heater must be electrically grounded to the (OPTIONAL, UNLESS steel chassis of the mobile home with 8 GA copper INSTALLING IN A MOBILE HOME) wire using a serrated or star washer to penetrate paint or protective coating to ensure grounding. ATTENTION: •...

  • Page 7: Pellet Vent Termination

    INSTALLATION during appliance shutdown and keep exhaust from elbow or tee reduces draft potential by 30% to 50%. causing a nuisance or hazard by exposing people All joints in the vent system must be fastened by or shrubs to high temperatures. The maximum at least 3 screws, and all joints must be sealed with recommend vertical venting height is 12-feet for Hi-Temp RTV silicone sealant to be airtight.

  • Page 8: Through The Wall Installation

    INSTALLATION A. Minimum 4-foot (1.22m) clearance below or connect the pipe adapter to the exhaust motor beside any door or window that opens. adapter. If the exhaust adapter is at least 18” (457 mm) above ground level, a straight section of B.

  • Page 9: Panel Controls

    OPERATION INSTRUCTIONS NEVER OPERATE THIS PRODUCT WHILE UNATTENDED PANEL CONTROLS D. MODE (M/T) BUTTON • The Mode of the stove can be switched between manual and controlled with a Thermostat. Separate LEDs to the left of the two digit display indicate the mode of operation –...

  • Page 10: Proper Fuel

    OPERATION INSTRUCTIONS been, or are wet, will result in reduced performance. WARNING: Store your pellets in a dry place. DO NOT store the HOT WHILE IN OPERATION. KEEP CHILDREN, fuel within the installation clearances of the unit CLOTHING AND FURNITURE AWAY. CONTACT or within the space required for refuelling and ash MAY CAUSE SKIN BURNS.
  • Page 11 OPERATION INSTRUCTIONS DAMPER CONTROL CAUTION: The damper control lever is located on the back of KEEP FOREIGN OBJECTS OUT OF THE HOPPER. the stove. The dampener adjusts the combustion air. This control is necessary due to the varied burn PRE-START-UP CHECK characteristics of individual installations, different Remove burn pot, making sure it is clean and none pellet brands and pellet feed rates.

  • Page 12: Shutdown Procedure

    OPERATION INSTRUCTIONS SHUTDOWN PROCEDURE If the door is opened while the stove is in operation it must be closed within 30 seconds or the stove will shut down. If the stove shuts down push the WARNING: “On/Off” button to re-start your stove. The stove will NEVER SHUT DOWN THIS UNIT BY UNPLUGGING have to fully shut down and turn off before you will IT FROM THE POWER SOURCE.

  • Page 13: Maintenance

    OPERATION INSTRUCTIONS on the lower front corners of the heat exchanger. WARNING: To access these clean outs, you must remove both FAILURE PROPERLY MAINTENANCE side panels. The clean outs are secured to the THE CLEAN OUTS WILL RESULT IN POOR firebox with (2) 5/16”...

  • Page 14: Blower Motors

    MAINTENANCE ASH REMOVAL & DISPOSAL sealing properly to ensure unintended exposure. It is recommended that you use both smoke and CO monitors in areas having the potential to generate CAUTION: ALLOW STOVE COOL BEFORE PERFORMING MAINTENANCE CHECK & CLEAN THE HOPPER CLEANING.

  • Page 15: Fall Start Up

    MAINTENANCE 3. While wearing leather gloves (or any other the hopper. Thoroughly clean the burn pot, and gloves suitable for handling broken glass), firebox. It may be desirable to spray the inside of carefully remove any loose pieces of glass from the cleaned hopper with an aerosol silicone spray the door frame.

  • Page 16: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE When your stove acts out of the ordinary, the first reaction is to call for help. This guide may save time and money by enabling you to solve simple problems yourself. Problems encountered are often the result of only five factors: 1) poor fuel;...
  • Page 17 TROUBLE SHOOTING GUIDE Display is Flashing “E2” Possible Causes Possible Remedies: (Unplug stove first when possible) Unhook air hose from the air switch and blow through it. If Airflow switch hose or stove attachment air flows freely, the hose and tube are fine. If air will not flow pipes for hose are blocked.
  • Page 18 TROUBLE SHOOTING GUIDE Display is Flashing “E3” Possible Causes Possible Remedies: (Unplug stove first when possible) The hopper is out of pellets Refill the hopper. The air dampener is too far open for a low If on the low setting, you may need to close the dampener all feed setting the way.
  • Page 19 TROUBLE SHOOTING GUIDE Display is Flashing “E4” Possible Causes Possible Remedies: (Unplug stove first when possible) The air inlet, burnpot, interior combustion air chambers, combustion blower, or Follow all cleaning procedures in the maintenance section of exhaust pipe are blocked with ash or the owner’s manual.

  • Page 20: Convection Blower Shuts Off And Comes Back On

    TROUBLE SHOOTING GUIDE CONVECTION BLOWER SHUTS OFF AND COMES BACK ON Possible Causes Possible Remedies: (Unplug stove first when possible) The convection blower is overheating and Clean any dust off of the windings and fan blades. If cleaning tripping the internal temperature shutoff. the blower does not help, the blower may be bad.

  • Page 21: High Limit Switch Keeps Tripping

    TROUBLE SHOOTING GUIDE HIGH LIMIT SWITCH KEEPS TRIPPING Possible Causes Possible Remedies: (Unplug stove first when possible) convection blower Clean any dust off of the windings and fan blades. If oiling the overheating tripping blower does not help, the blower may be bad. internal temperature shutoff.
  • Page 22 TROUBLE SHOOTING GUIDE • GLASS “SOOT’S” UP AT A VERY FAST RATE • FLAME IS LAZY, DARK, AND HAS BLACK TIPS • AFTER STOVE HAS BEEN ON FOR A WHILE, THE BURNPOT OVERFILLS Possible Causes Possible Remedies: (Unplug stove first when possible) Stove or vent pipe is dirty, which Follow all cleaning procedure in the maintenance section of the restricts...

  • Page 23: Parts Diagram

    PARTS DIAGRAM © 2021 United States Stove Company...

  • Page 24: Parts List

    Call 1-800-750-2723 Ext 5051 or Email to: parts@usstove.com IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING ORIGINAL ASHLEY PARTS PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM ASHLEY. USE OF THIRD PARTY COMPONENTS WILL VOID THE WARRANTY. © 2021 United States Stove Company...

  • Page 25: Wiring Diagram

    WIRING DIAGRAM ENSURE THE WIRES ARE CONNECTED TO THE BOTTOM TWO PRONGS OF THE HOPPER SWITCH AS SHOWN. CORRECT WRONG HOW TO ORDER REPAIR PARTS For Parts Assistance Call: 800-750-2723 Ext 5051 or Email: parts@usstove.com The information in this owner’s manual is specific to your unit. When ordering replacement parts the information in this manual will help to ensure the correct items are ordered.

  • Page 26: Service Record

    SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. SERVICE PROVIDER Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. Always use the manufacturer's specified spare part when replacement is necessary.
