Summary of Contents for DAPAudio DCS-5230
- Page 1 MANUAL ENGLISH DCS-5230 Ordercode: D6579 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 DCS-5230 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Dimensions ..................................6 Ordercode: D6579...

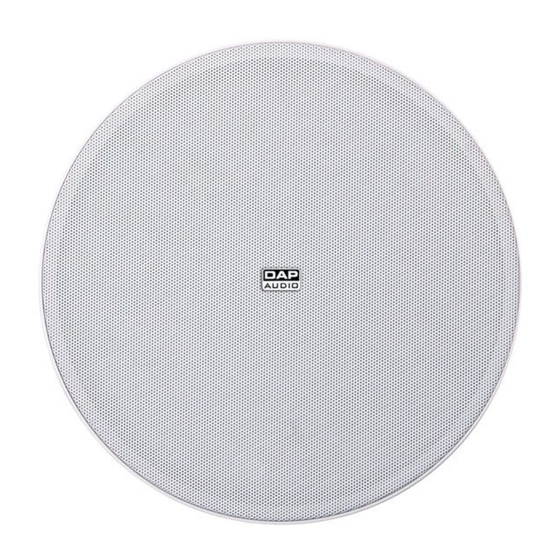

- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio DCS-5230 5" 2-way design ceiling speaker • User manual •...
- Page 4 • Clean only with dry cloth. • When making the hole in your ceiling to mount the DCS-5230, make sure there is sufficient clearance • behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might •...
- Page 5 DCS-5230 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
- Page 6 DCS-5230 Installation 01) Drill a hole in the ceiling, big enough to fit the speaker (Ø 180 mm). 02) Connect the blue cable to the common cable. 03) Connect one of the colored cables to the main feed cable: red cable = 20W, yellow cable = 10W, green cable = 5W.
- Page 7 DCS-5230 Product Specification Power taps: 5/10/20W Line voltage: 100V Impedance: 8 Ω Speaker size LF: 5 inch Speaker size HF: ½ inch Frequency response: 100-20 kHz Sensitivity: 88 dB +/- 3 dB Material: Color: White IP rating: IP40 Mounting hole: Ø...
- Page 8 ©2015 DAP Audio...
