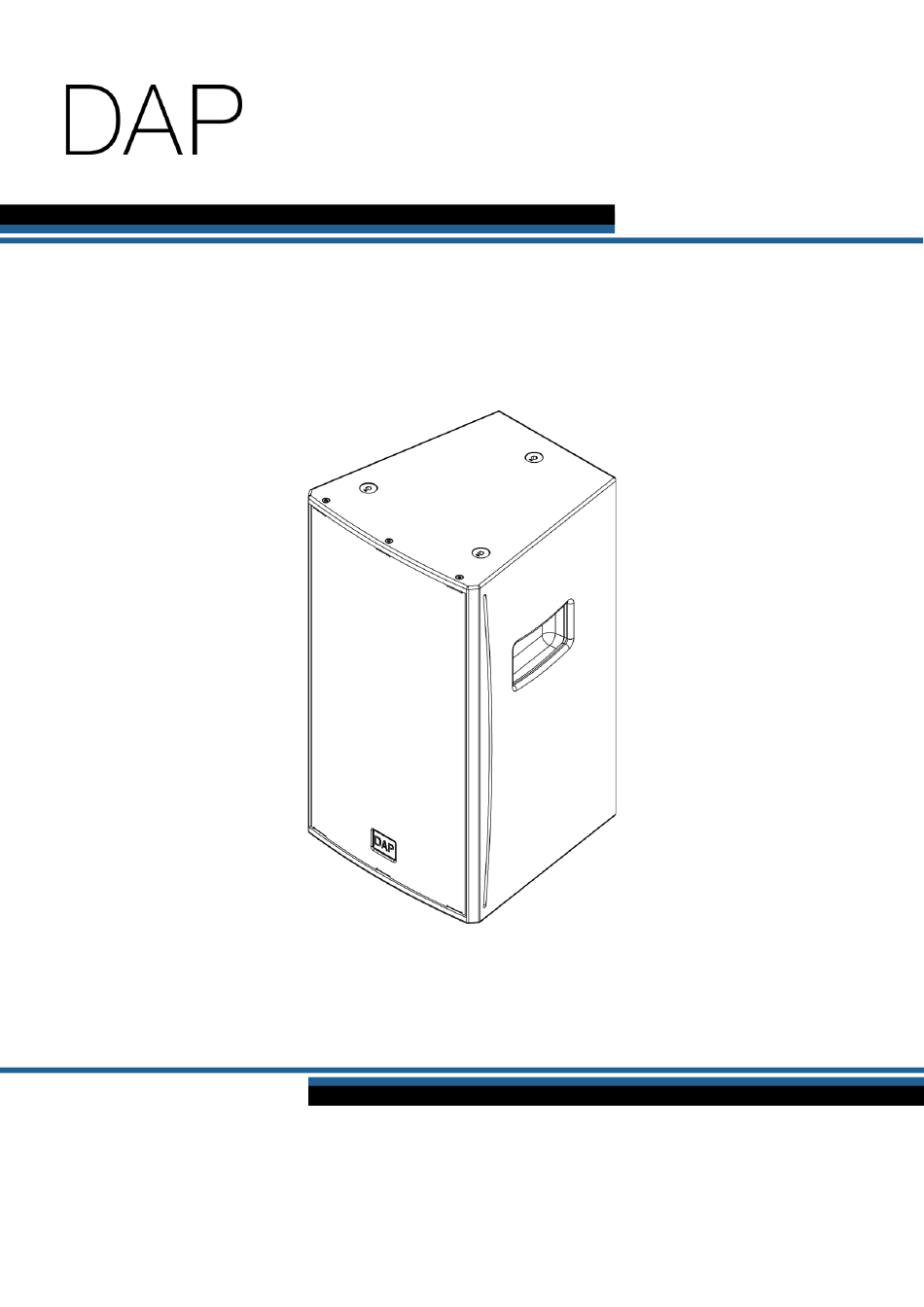

- Page 1 USER MANUAL ENGLISH NRG-8A Product code: D3653 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 NRG-8A Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
NRG-8A Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................6 Requirements for the User .......................... - Page 4 NRG-8A Instructions for Transportation ........................28 Storage ................................28 10. Disposal ................................28 11. Approval ................................28 Product code: D3653...
-
Page 5: Introduction
After unpacking, examine the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP NRG-8A ● Schuko to Power Pro cable (1,5 m) ● User manual Fig. 01 Intended Use This device is designed to be used as an active full-range loudspeaker. -
Page 6: Symbols And Signal Words
NRG-8A Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
NRG-8A Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 NRG-8A WARNING Stability hazard The device may fall if it is mounted on a distance pole, causing personal injury or death. The device is for use only with the stands that are recommended in this user manual. ● Make sure that the device is safely mounted on a distance pole.
-
Page 9: Requirements For The User
NRG-8A Attention Do not expose the device to conditions that exceed the rated IP class conditions. This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water. -
Page 10: Description Of The Device
Description of the Device The DAP NRG-8A is a 180 W RMS active full-range speaker. It has dedicated line and microphone inputs and is equipped with Bluetooth 5.0 with TWS (True Wireless Stereo). The device has an internal DSP with 4 modes. -
Page 11: Back View
NRG-8A Back View 04) DSP button and selector with LED indicators 05) Status LED indicators 06) Master gain control 07) Microphone gain control 08) Line-level gain control 09) Bluetooth signal gain control 10) BT pairing LED indicator 11) BT pairing button... -
Page 12: Product Specifications
NRG-8A Product Specifications Model: DAP NRG-8A Physical: Dimensions: 275 x 280 x 475 mm (L x W x H) Weight: 10,9 kg Outputs: Power amplifier RMS output: 180 W Power amplifier peak output: 360 W Main outputs: Audio Specifications: THD level: <... -
Page 13: Optional Accessories
NRG-8A Optional Accessories You can additionally purchase the following accessories: ● D8600 Speaker Stand ● D8601 Speaker Stand 35mm Alu ● D8602 Speaker Stand with Baseplate ● D8435 Speaker hanging eye/ring 8mm (Silver) ● D8610 Distance Tube 35 mm ●... -
Page 14: Installation
NRG-8A Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. Installation must be carried out only by instructed persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. ●... -
Page 15: Mounting Options
NRG-8A Mounting Options The device can be mounted on a pole, on a speaker tripod, suspended from an overhead structure with cables/chains, or mounted to a truss with a clamp. See 3.5. Optional Accessories on page 12. The device has 2 mounting openings on the bottom for upright (0°) or inclined installation (5°) on a pole and 3 rigging points on the top for suspended installation. -
Page 16: Installation On A Distance Pole
NRG-8A Installation on a Distance Pole You can stack the device on top of a subwoofer with a distance pole. See 3.5. Optional Accessories on page 12. To mount the device on a distance pole: Place the subwoofer on a level stable surface. -
Page 17: Overhead Suspension
NRG-8A Overhead Suspension CAUTION Restrict the access under the work area during installation and/or deinstallation. You can suspended the device on an overhead structure from the 3 rigging points with rigging eyes. See 3.5. Optional Accessories on page 12. To suspend the device, follow the steps below: Use a hex key to remove the 3 hex screws from the 3 mounting openings (01). -
Page 18: Overhead Mounting With A Clamp
NRG-8A Overhead Mounting with a Clamp CAUTION Restrict the access under the work area during installation and/or deinstallation. You can mount the device with a clamp to a truss. See 3.5. Optional Accessories on page 12. To mount the device, follow the steps below:... -
Page 19: Setup
NRG-8A Setup Warnings and Precautions Attention Connect all cables before supplying power. Disconnect power supply before connecting or disconnecting cables. Connecting Multiple Devices You can connect 2 or more active full-range speakers in a daisy-chain. Use a 3-pin XLR cable to connect the 3-pin XLR mix connector OUT (17) of the 1... -
Page 20: Setup With An Audio Mixer
NRG-8A Setup with an Audio Mixer You can use the NRG-8A in a setup with an audio mixer. In this setup you can connect 2 active full-range speakers NRG-8A to 1 or 2 active subwoofers (NRG-12SA/15SA/18SA). To complete the setup, follow the steps below: Make sure that all devices are switched off. -
Page 21: Setup With 1 Active Subwoofer
NRG-8A Setup with 1 Active Subwoofer To connect 2 full-range speakers to 1 subwoofer (NRG-12SA/15SA/18SA), follow the steps below: Use a 3-pin XLR cable to connect the combined line-level connector IN (18) of the 1 active full- range speaker to the 3-pin XLR connectors THRU A of the active subwoofer. -
Page 22: Setup Without An Audio Mixer
NRG-8A Setup without an Audio Mixer You can use the NRG-8A in a setup without an audio mixer and connect it to a 2 active full-range speaker NRG-8A. In this setup the device functions as a mixer, combining all input signals. -
Page 23: Setup With A Streaming Source Device
NRG-8A Setup with a Streaming Source Device The NRG-8A has an integrated Bluetooth receiver with TWS (True Wireless Stereo). You can pair the NRG-8A with a personal computer or a smartphone with Bluetooth (a streaming source device) to stream sound. -
Page 24: Stereo Mode
NRG-8A Stereo Mode In stereo mode 1 active full-range speaker is paired with the streaming source device and a 2 active full-range speaker is linked to the 1 active full-range speaker. The 1 active full-range speaker, connected to the streaming source device, outputs the left channel of the stereo signal and the 2 active full-range speaker outputs the right channel of the stereo signal. -
Page 25: Operation
NRG-8A with a personal computer or a smartphone with Bluetooth (a streaming source device) to stream sound. You can also link 2 NRG-8A devices to use them in stereo mode. See 5.5. Setup with a Streaming Source Device on pages 22–23. -
Page 26: Linking To Another Device
Linking to Another Device You can link one NRG-8A to another NRG-8A via Bluetooth to stream sound in stereo mode. Press and hold down the BT stereo button (12) until the BT stereo LED indicator (13) starts flashing to link the devices. -
Page 27: Led Statuses
NRG-8A 6.6. LED Statuses The device has 4 status LED indicators (05) and a clip LED indicator (20). The LED indicators have the following statuses: ● Protect: Illuminates when the amp is overloaded. This can happen when the input signal is too high or when the ambient temperature is too high. -
Page 28: Maintenance
NRG-8A Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● There are no deformations on the housing. -
Page 29: Deinstallation, Transportation And Storage
Approval Hereby, Highlite International declares that the device NRG-8A, product code D3653, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available at the respective product page on the website of Highlite International (www.highlite.com). - Page 30 NRG-8A Product code: D3653...
- Page 31 NRG-8A Product code: D3653...
