- Page 1 MANUAL ENGLISH EDCS-626 6’’ Order code: D6593B/D6593W Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
EDCS-626 6” Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the Device ..............................5 Overview ..................................5 Installation ................................... 6 Speaker Wiring ................................7 Troubleshooting ................................. 8 Product Specifications .............................. -
Page 3: Warning
EDCS-626 6” Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Operating Determinations
EDCS-626 6” IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. ● Never remove warning or informative labels from the unit. ● Never leave any cables lying around. ●... -
Page 5: Return Procedure
EDCS-626 6” Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.com and request an RMA prior to shipping the... -
Page 6: Description Of The Device

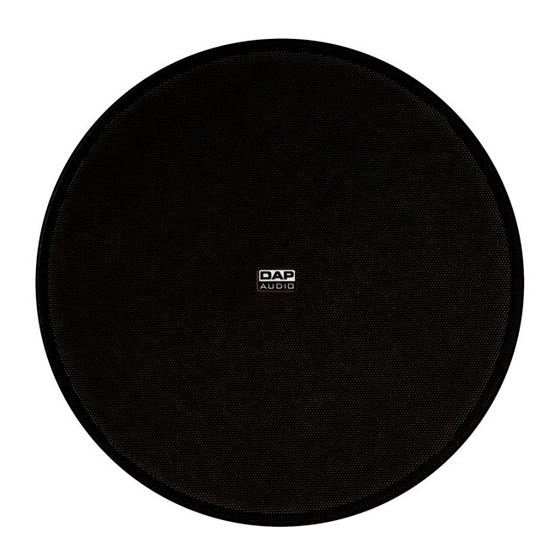

EDCS-626 6” Description of the Device Features DAP EDCS-626 6” is a 6-inch in-ceiling speaker suited for public spaces. ● Line voltage: 100 V ● Power taps: 3/6 W ● Power max.: 6 W ● Impedance: @ 3 W: 3199 Ω; @ 6 W: 1640 Ω ●... -
Page 7: Installation
EDCS-626 6” Installation Before installing the DAP EDCS-626 6”, ensure that the chosen location on the ceiling is free of any obstructions such as pipe work, ducting or wiring. In existing constructions, if no crawlspace is available, use a stud-finding tool to map the ceiling construction and a pipe detector to scan the installation location. -
Page 8: Speaker Wiring
EDCS-626 6” Speaker Wiring To achieve maximum performance from the speaker, it is recommended to use good quality CL2 or CL3 rated speaker cable. For distances greater than 20 m, use a 2,5 mm² cable. For shorter distances, a 1,5 mm² or 0,75 mm² cable is sufficient. Make sure the cable meets any local or national regulations. -
Page 9: Troubleshooting
EDCS-626 6” Troubleshooting No Sound Always check if all cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, consult the user manual to make sure the instructions were followed during installation. -
Page 10: Product Specifications
EDCS-626 6” Product Specifications Model: DAP Audio EDCS-626 6” Line voltage: 100 V Power taps: 3/6 W Power max.: Impedance: @ 3 W: 3199 Ω; @ 6 W: 1640 Ω Dispersion: 360° x 180° Speaker size: 6” Frequency response: 100 Hz–15 kHz SPL max @ 1 m: 97 dB Sensitivity:... - Page 11 EDCS-626 6” Order code: D6593B/D6593W...
