Micropilot FMR53, FMR54 FOUNDATION Fieldbus
5
Mounting
5.1

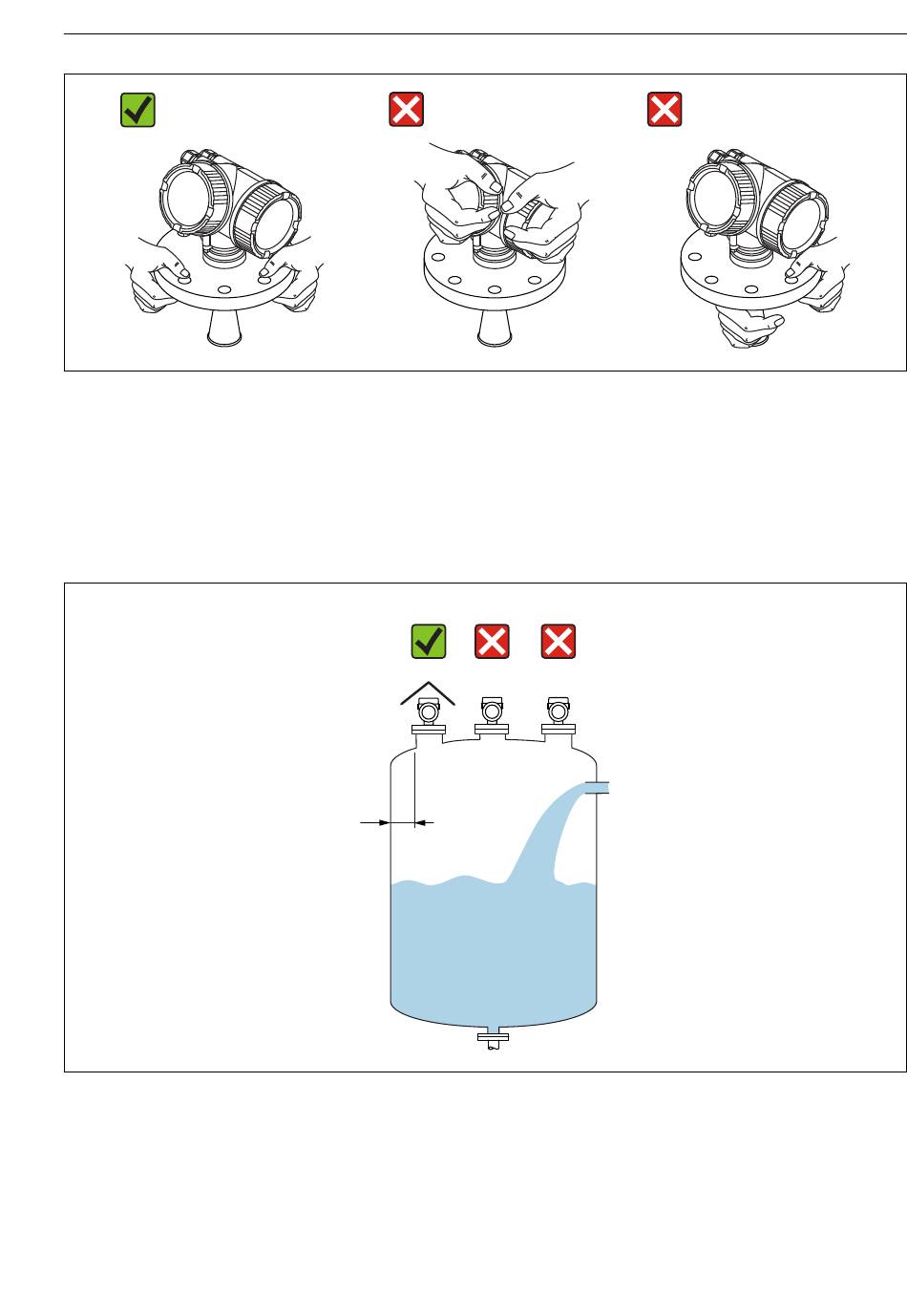

Mounting location
A
Recommended distance from wall to nozzle outer edge ~ 1/6 of the vessel diameter. However, the
device must not under any circumstances be mounted closer than 15 cm (5.91 in) to the tank wall.
1
Use of a weather protection cover; protection from direct sunlight or rain
2
Installation in the center, interference can cause signal loss
3
Do not install above the filling curtain
Endress+Hauser
1
2
A
3
Mounting
A0016875
A0016882
7
