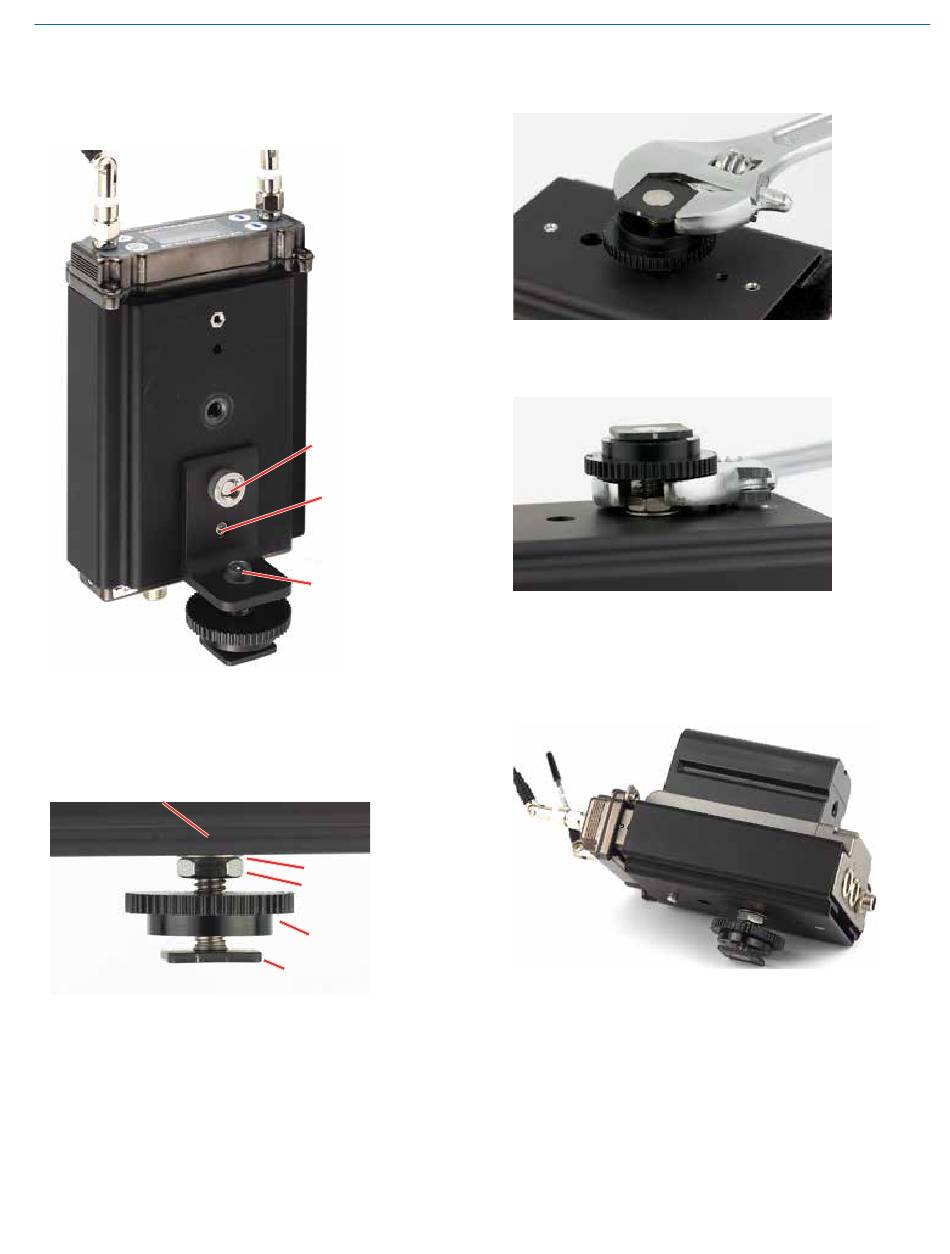

Attach the bracket to the sleeve with the long pan head
screw into the standard pressnut. The retaining pin fits
into the opening in the bracket. Attach the cold shoe
mounting foot to the tensioning nut and rotate it to orient
the receiver as desired.
The clinch nuts in the foot and housing apply friction to
the threads to allow the foot to be rotated to the de-
sired position, with the jam nut locking it in place. Use
a wrench to rotate the foot, then tighten the jam nut to
prevent the foot from rotating.
Clinch pressnut in bracket and sleeve
Rio Rancho, NM
Standard
pressnut
Retaining
pin
Cold shoe
foot into
clinch
pressnut
Washer
Jam nut
Thumb nut
Cold shoe foot
UHF Digital Hybrid Wireless
For horizontal mounting, insert the cold shoe foot into
the clinch nut in the sleeve. Rotate the foot to the de-
sired postion, then tighten the jam nut to lock it in place.
Use a wrench to thread the stud in about 1 - 2
turns, then rotate it to orient the receiver control
panel in the desired direction.
Tighten the jam nut to prevent the foot from rotating
The SRSLEEVE, SRBATTSLED and SRHARDWARE
used together provide a versatile, stand-alone receiver
(battery shown for illustration only; not sold by
Lectrosonics.)
®
