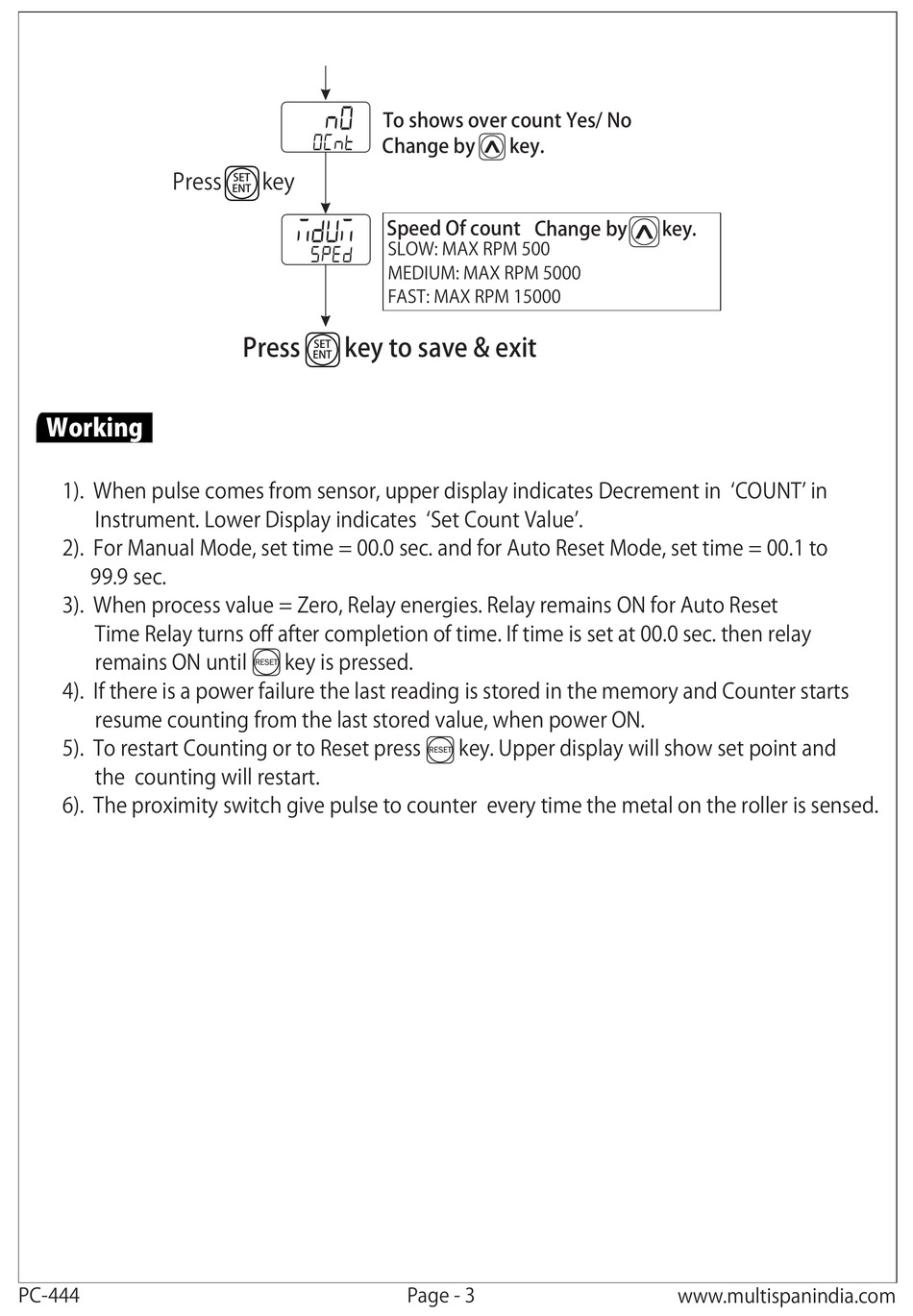

MULTISPAN PC-444 Operating Manual page 3

Press
Working
1). When pulse comes from sensor, upper display indicates Decrement in COUNT in
Instrument. Lower Display indicates Set Count Value .
2). For Manual Mode, set time = 00.0 sec. and for Auto Reset Mode, set time = 00.1 to
99.9 sec.
3). When process value = Zero, Relay energies. Relay remains ON for Auto Reset
Time Relay turns off after completion of time. If time is set at 00.0 sec. then relay
remains ON until
4). If there is a power failure the last reading is stored in the memory and Counter starts
resume counting from the last stored value, when power ON.
5). To restart Counting or to Reset press
the counting will restart.
6). The proximity switch give pulse to counter every time the metal on the roller is sensed.
PC-444

To shows over count Yes/ No

Change by
key
SET
ENT
Speed Of count

SLOW: MAX RPM 500

MEDIUM: MAX RPM 5000
FAST: MAX RPM 15000
Press key to save & exit
SET
ENT
key is pressed.
RESET
key.
Change by
key. Upper display will show set point and
RESET
Page - 3
key.
www.multispanindia.com
