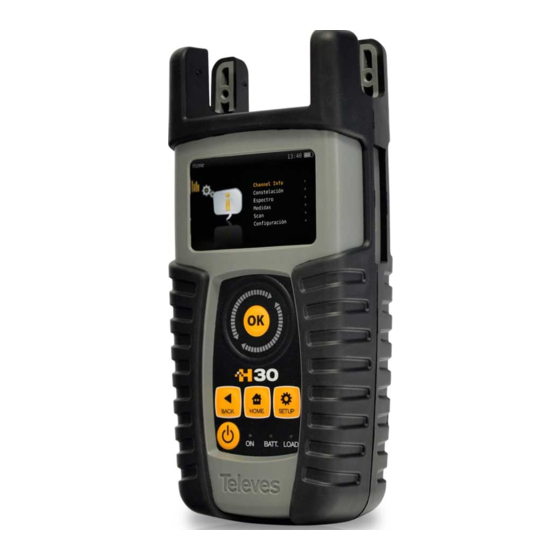

Televes 593101 Instruction Manual

Televes 593101 Instruction Manual

Catv & docsis3.0 meter / analyzer
Hide thumbs Also See for 593101:

Advertisement

Quick Links

Refs. 593101, 593102
593103, 593104
593160, 593180
Instruction Manual
CATV & DOCSIS3.0 Meter / Analyzer
EN
w w w . t e l e v e s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 593101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Televes 593101

  • Page 1 Refs. 593101, 593102 593103, 593104 593160, 593180 Instruction Manual CATV & DOCSIS3.0 Meter / Analyzer w w w . t e l e v e s . c o m...
  • Page 3: Table Of Contents

    Index Safety requirements ..................Overview ...................... Key Features ....................General specifications ................. Technical specifications ................Description of equipment components ............Connectors and controls ................Keyboard ....................Power Supply ....................Product Operation ..................Docsis 3.0 ....................Docsis 3.1 ....................Channel info ....................System scan .....................
  • Page 4: Safety Requirements

    H30 - CATV & DOCSIS3.0 Meter / Analyzer Safety requirements Servicing Product inspection - Inspect the equipment for shipping damage. - There are no user serviceable parts except the battery. Do not attempt to service this product or Should any damage be discovered, immediately remove covers other than the battery cover.
  • Page 5: Overview

    Key Features User friendly, handheld QAM meter. Introducing the H30. Remote measurements and control in an affordable package. New from Televes, a go-to meter designed with the needs of a Cable TV operator in mind. Complete portfolio Analog/Digital measurements with easy-to-read pass/fail The H30 is a light weight, rugged unit, packed with indicators.
  • Page 6: General Specifications

    H30 - CATV & DOCSIS3.0 Meter / Analyzer General Specification Display 2.8” TFT 400 x 240 full colour Ref. 593101 & 593102: 12.12lb (510g) Weight Ref. 593103 & 593104: 1.39lb (632.2g) Dimensions 6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D)
  • Page 7: Technical Specifications

    Technical Specifications Tilt Channels 1 to 16 or all channels (analog and digital) Frequency Selectable markers Range 5 MHz to 1002 MHz Pass/Fail Indicators Headend, Fiber Nod, Trunk, Bridge, Line Ext, Tap, Resolution 10 kHz Factory profiles End Line, Ground, Modem/STB, Off Air Tuning Frequency or channel Custom profiles...
  • Page 8: Description Of Equipment Components

    H30 - CATV & DOCSIS3.0 Meter / Analyzer Description of equipment Keyboard components Connectors and controls Device On/Off button: To turn the equipment off, press and hold for approximately 3 seconds. Back button: Return to the previous menu or close a parameter entry window. 1.
  • Page 9: Power Supply

    Power supply From a fully discharged state, a full charge takes A DC adapter is provided to power and charge the approximately 8 hours and a 3 hour charge will meter. Plug the adapter into a properly grounded provide approximately a 75% charge. electrical supply and the power connector on the The charge management system will detect side of the unit.
  • Page 10: Product Operation

    H30 - CATV & DOCSIS3.0 Meter / Analyzer Product operation MAC of the Connection Parameters of the DOCSIS modem Status DOCSIS network 1. Docsis 3.0 (Refs. 593103, 593104 & 593180) In this menu are grouped all functions related to Docsis network. 1.1.
  • Page 11 Channel Transmitted and received packets Modem IP Change using Parameters of the Frequency within the Current Maximum DS selected channel Lost DOCSIS PING and US speed packets network delay negociated Bar graph representing Transfer URL set by Transfer Average List of measurements all the found channels.
  • Page 12: Docsis 3.1

    H30 - CATV & DOCSIS3.0 Meter / Analyzer - FTP Test: These parameters allows to set the ftp Modem Transmitted Modem IP to do the Throughput test. status data size FTP Server: Enter the ftp address using FTP Path: Enter the file path using Method: GET, PUT.
  • Page 13 Channel Selected channel Span List of measurements Change using User can change it using Change using Frequency with pass/fail indicators List of Bar graph representing all the channels. Reference level measurements Color according to checkmarks (Auto) with pass/fail indicators 2.2.2. Setup 2.2.
  • Page 14: Channel Info

    H30 - CATV & DOCSIS3.0 Meter / Analyzer - Save datalog: Saves the current scan provided in the Televes H30. measurements. You can see the datalogs In analog mode, video and audio levels, V/A and using the remote control application.
  • Page 15: System Scan

    - Parameters: Channel Measurements Change Bandwidth: Auto, 6 MHz, 7MHz, 8MHz of the selected Channel using Frequency channel Symbol Rate: Auto, 6111, 5156, Other plan with pass/fail Constellation: Auto, 4QAM, 16QAM, indicators 32QAM, 64QAM, 128QAM, 256QAM Standard: ITU J.83-A, J.83-B, J.83-C DFE: OFF, ON.
  • Page 16: Tilt

    H30 - CATV & DOCSIS3.0 Meter / Analyzer 4.2. Setup measurements. You can see the datalogs using the remote control application Press to change the Tilt options. 4. Tilt Any number of analog, digital or DOCSIS channels can be measured using the tilt measurement, and you can even select which carriers are your reference points to determine the tilt between any of the channels included in the measurement.
  • Page 17: Constellation

    - Save datalog: Saves the current scan Selected channel Span measurements. You can see the datalogs User can change it using Change using using the remote control application. 6. Constellation Digital video often does not show signal impairment until it is too late due to the small margin between acceptable quality and failure.
  • Page 18: Ctb & Cso

    H30 - CATV & DOCSIS3.0 Meter / Analyzer - Tuning: Channel, Frequency Selected channel - Save datalog: Saves the current scan Change using Modulation measurements. You can see the datalogs using the remote control application. 7. CTB & CSO Cable TV networks are generally located in densely populated areas or extend over large geographical regions.
  • Page 19: Voltmeter & Hum

    Selected channel Change using 8. Voltmeter & Hum Channel plan H30 measures the voltage present at the RF input. The HUM measurement indicates the variation in percentage of the video carrier amplitude of the TV signal. This will help you diagnose those ground and power interference problems that may result from a defective power supply or faulty/ overloaded power inserters.
  • Page 20: Equalizer

    H30 - CATV & DOCSIS3.0 Meter / Analyzer 8.2. Setup Selected channel List of Change using measurements Modulation with pass/fail Press to change Voltmeter & Hum options. indicators - Tuning: Channel, Frequency. - Save datalog: Saves the current scan If the cofficients exceed the measurements.
  • Page 21: Learning Plan

    11. Ingress Scan 10. Learning plan Help identify reverse path problems before your Analyzes the input signal to the meter and customers are affected. automatically detects all channels. Poorly shielded coaxial cable faulty This feature automatically identifies the channels terminations are important sources of ingress as either analog or digital and performs noise which can easily add up in the return due to measurements on each.
  • Page 22: Speed Test

    H30 - CATV & DOCSIS3.0 Meter / Analyzer 11.2. Setup Public IP Press to change Ingress Scan options. Link DHCP Internet check check check - Ingress frequencies: 5-47 MHz, 5-68 MHz, 5-85 MHz, 5-205 MHz. Select the span of the graph. - Ref.
  • Page 23: Monitoring

    Selected channel Change using 14. LT Monitoring MPEG channel info (Opt. 593214 or Ref. 593180) The H30’s Long Term Monitoring feature allows automatic monitoring of the selected channel. The user must to select the time interval elapsed between consecutive measurements shots.
  • Page 24: Fm Scan

    H30 - CATV & DOCSIS3.0 Meter / Analyzer 14.2. Configuration Selected channel Change using Level of the selected carrier Press to change LT Monitoring options. - Measure delay: Select the time interval between two consecutive measure shots. Minimun value is 5 seconds. Bar graph showing the FM - Measure 1, 2, 3: Allows select the three carriers found...
  • Page 25: Setup

    Graph showing the wifi networks. Each 17. Setup triangle represents a network. The height of the triangle represents the power of the access point’s signal. Change main configuration settings: - Language: English, Español. - Units: dBµV, dBmV, dBm Press the OK button to pass from one screen to - Quality profiles: Trunk, Tap, End Line, other Ground.
  • Page 26 H30 - CATV & DOCSIS3.0 Meter / Analyzer - Network: Setup: Manual, Auto When Setup Manual is selected, the user must set the gateway. When Setup Manual is selected, the user must set the IP. DNS. When Setup Manual is selected, the user As you can see in the image above, the listo must set the DNS.
  • Page 27: Ethernet Features

    Auto shutdown - Update firmware: ON, OFF When ON, every time the H30 is connected to the internet, it will allow the user to update the firmware if a new version is available. - Licenses: Shows the options included in you - About SW: Shows the firmware version - About HW: Shows the serial number, the ethernet MAC, and the modem MAC (only...
  • Page 28: Remote Control

    H30 - CATV & DOCSIS3.0 Meter / Analyzer button to reboot the meter. Note: When your H30 connects to the server to update the firmware, it checks in our database if you have purchased any of the available options. If so, they will be activated automatically with the update.
  • Page 29 application. Go back to the Select other channel from the plan main window IP Auto IP Manual Select another profile and save the Datalog in the H30 The following functions are available in the remote - Spectrum control application: Sets the H30 in Spectrum mode and shows the current Spectrum main window: - Channel Info Sets the H30 in Channel Info mode and shows the...
  • Page 30 H30 - CATV & DOCSIS3.0 Meter / Analyzer Enter the description and press “Change” - Datalogs In this section you can see all the measures saved in your H30 with the “Save Datalog” feature. Go back to the List of Datalogs main window User can also delete a log from the list by pressing “Del”...
  • Page 31 Channel on wich the Allows to export data There are two views for the list of channels: Table measurements were made in different formats view and Icon view. Above is shown the Table View, and below the Icons View. Parameters of the List of channel and time measurements...
  • Page 32 H30 - CATV & DOCSIS3.0 Meter / Analyzer Or import a channel plan from a .csv file with a specific format: - Channel Plans The first row is used for the channel plan data, with In this section you can see all the channel plans the following fields separated by “;”: saved in your H30.
  • Page 33 Press “Delete” to confirm User can add a new channel to a custom plan: User can also change the name of the custom plan: Enter the name, frequency, BW, and video offset of the neww channel and press “Add” Enter the new name and press “Change”...
  • Page 34 H30 - CATV & DOCSIS3.0 Meter / Analyzer Go back to main Change the value window of the limits Allows to edit the Allows tocreate a new name of the profile, List of quality profiles quality profile save it, or delete it User can create a new quality profile from an User can change the name of the quality profile existing one:...
  • Page 35 - About This feature shows the information about your H30. There are also links to the H30 documents. From this web you can also Import/Export the H30 configuration to/from a file. This is an easy way to have the same settings on all the meters of you fleet.
  • Page 36: Aplication Program Interface

    H30 - CATV & DOCSIS3.0 Meter / Analyzer 4. Application Program Interface Maintenance API (Application Program Interface) software is available using http to integrate data of H30 into Always disconnect the unit before cleaning. Use applications that need it. only a mild solution of detergent and water applied In its basic version that API allows you to set confi- with a soft damp cloth.
  • Page 37: Technical Support

    RESET the unit to clear any problems. (B) Televes shall, free of charge and in its sole discretion, either repair, replace with a new or factory reconditioned equivalent, or refund...
  • Page 38 (F) Any damage caused by shipper shall be claimed with the shipper in accordance with the shipper’s policies and procedures. (G) Televes shall in no event and under no circumstances be liable or responsible for any consequential, indirect, incidental, punitive,...
  • Page 40 H30 - CATV & DOCSIS3.0 Meter / Analyzer...
  • Page 42 593101_593102_593103_593104_013_EN...
