- Page 1 Refs. 593101, 593102 593103, 593104 593180 Instruction Manual CATV & DOCSIS3.0 Meter / Analyzer w w w . t e l e v e s . c o m...
-
Page 3: Table Of Contents
Index Safety requirements ..................Overview ...................... Key Features ....................General specifications ................. Technical specifications ................Description of equipment components ............Connectors and controls ................Keyboard ....................Power Supply ....................Product Operation ..................Docsis 3.0 ....................Channel info ....................System scan ..................... Tilt ...................... -
Page 4: Safety Requirements
H30 - CATV & DOCSIS3.0 Meter / Analyzer Safety requirements Servicing Product inspection - Inspect the equipment for shipping damage. - There are no user serviceable parts except the battery. Do not attempt to service this product or Should any damage be discovered, immediately remove covers other than the battery cover. -
Page 5: Overview
Key Features User friendly, handheld QAM meter. Introducing the H30. Remote measurements and control in an affordable package. New from Televes, a go-to meter designed with the needs of a Cable TV operator in mind. Complete portfolio Analog/Digital measurements with easy-to-read pass/fail The H30 is a light weight, rugged unit, packed with indicators. -
Page 6: General Specifications
H30 - CATV & DOCSIS3.0 Meter / Analyzer General Specification Display 2.8” TFT 400 x 240 full colour Ref. 593101 & 593102: 12.12lb (510g) Weight Ref. 593103 & 593104: 1.39lb (632.2g) Dimensions 6.9 x 3.9 x 2 in / 175 x 100 x 52 mm (H x W x D) Input: 100-240V~ 50-60Hz AC Adaptor Output: 12VDC, 2A... -
Page 7: Technical Specifications
Technical Specifications Tilt Channels 1 to 16 or all channels (analog and digital) Frequency Selectable markers Range 5 MHz to 1002 MHz Pass/Fail Indicators Headend, Fiber Nod, Trunk, Bridge, Line Ext, Tap, Resolution 10 kHz Factory profiles End Line, Ground, Modem/STB, Off Air Tuning Frequency or channel Custom profiles... -

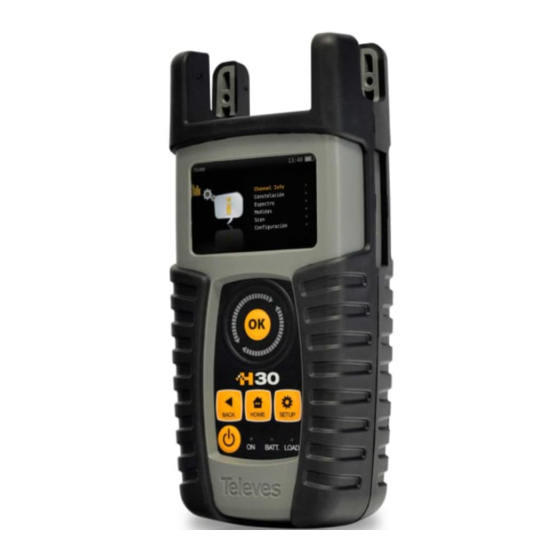

Page 8: Description Of Equipment Components
H30 - CATV & DOCSIS3.0 Meter / Analyzer Description of equipment Keyboard components Connectors and controls Device On/Off button: To turn the equipment off, press and hold for approximately 3 seconds. Back button: Return to the previous menu or close a parameter entry window. 1. -
Page 9: Power Supply
Power supply From a fully discharged state, a full charge takes A DC adapter is provided to power and charge the approximately 8 hours and a 3 hour charge will meter. Plug the adapter into a properly grounded provide approximately a 75% charge. electrical supply and the power connector on the The charge management system will detect side of the unit. -
Page 10: Product Operation
H30 - CATV & DOCSIS3.0 Meter / Analyzer Product operation MAC of the Connection Parameters of the DOCSIS modem Status DOCSIS network 1. Docsis 3.0 (Refs. 593103, 593104 & 593180) In this menu are grouped all functions related to Docsis network. 1.1. - Page 11 Channel Transmitted and received packets Modem IP Change using Parameters of the Frequency within the Current Maximum DS selected channel Lost DOCSIS PING and US speed packets network delay negociated Bar graph representing Transfer URL set by Transfer Average List of measurements all the found channels.
-
Page 12: Channel Info
Analog and digital channels are very different in terms of signal content and power distribution and thus require the advanced SLM techniques provided in the Televes H30. In analog mode, video and audio levels, V/A and Carrier to Noise (C/N) are measured. -
Page 13: System Scan
Channel Channel Change using Frequency plan 3. System Scan This function scans the selected channel plan and detects every existing analog and digital channel in real time to determine the overall frequency response of the system. The scan measurement leverages the location based thresholds to clearly show whether or not signal levels comply with the cable system’s specifications with their green, yellow and red bars. -
Page 14: Tilt
H30 - CATV & DOCSIS3.0 Meter / Analyzer Selected channels Tilt measurement Change using Channel between the plan selected channels - Digital tuning: If it is ON, allows to see MER and CBER measurements when a digital channel is selected and the user presses Ok button. -
Page 15: Spectrum
5. Spectrum Real-time processing speeds ensure capture of any fast, intermittent plant impairments. Due to the accuracy and level of detail provided by this spectrum analyzer, the H30 is the ideal tool for identifying and locating noise, interference, ingress and other waveforms that may be affecting - Span: 2.5MHz, 6.25MHz, 12.5MHz, 25MHz, cable services quality. -
Page 16: Ctb & Cso
H30 - CATV & DOCSIS3.0 Meter / Analyzer 6.1. Main window Constellation: Auto, 4QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM Below is a capture of a Constellation window with Standard: ITU J.83-A, J.83-B, J.83-C a brief explanation of its features: DFE: OFF, ON. - Tuning: Channel, Frequency Selected channel - Save datalog: Saves the current scan... -
Page 17: Voltmeter & Hum
Selected channel Change using 8. Voltmeter & Hum Channel plan H30 measures the voltage present at the RF input. The HUM measurement indicates the variation in percentage of the video carrier amplitude of the TV signal. This will help you diagnose those ground and power interference problems that may result from a defective power supply or faulty/ overloaded power inserters. -
Page 18: Equalizer
H30 - CATV & DOCSIS3.0 Meter / Analyzer 8.2. Setup Selected channel List of Change using measurements Modulation with pass/fail Press to change Voltmeter & Hum options. indicators - Tuning: Channel, Frequency. - Save datalog: Saves the current scan measurements. You can see the datalogs Bar graph of the equalizer coefficients using the remote control application. -
Page 19: Learning Plan
11. Ingress Scan 10. Learning plan Help identify reverse path problems before your Analyzes the input signal to the meter and customers are affected. automatically detects all channels. Poorly shielded coaxial cable faulty This feature automatically identifies the channels terminations are important sources of ingress as either analog or digital and performs noise which can easily add up in the return due to measurements on each. -
Page 20: Speed Test
H30 - CATV & DOCSIS3.0 Meter / Analyzer 11.2. Setup Public IP Press to change Ingress Scan options. Link DHCP Internet check check check - Ingress frequencies: 5-47 MHz, 5-68 MHz, 5-85 MHz. Select the span of the graph. - Ref. Level: Select the reference level of the bar graph Ping Download and... -
Page 21: Monitoring
Selected channel Change using 14. LT Monitoring MPEG channel info (Opt. 593214 or Ref. 593180) The H30’s Long Term Monitoring feature allows automatic monitoring of the selected channel. The user must to select the time interval elapsed between consecutive measurements shots. -
Page 22: Fm Scan
H30 - CATV & DOCSIS3.0 Meter / Analyzer 14.2. Configuration Selected channel Change using Level of the selected carrier Press to change LT Monitoring options. - Measure delay: Select the time interval between two consecutive measure shots. Minimun value is 5 seconds. - Measure 1, 2, 3: Allows select the three Bar graph showing the FM carriers found... - Page 23 saved using Learning Plan. the datalogs in the server. A new folder with the name of your - Audio Carrier: 4.5 MHz, 5.5 MHz, 6.0 MHz, H30 serial number will be created 6.5 MHz. automatically in the Path indicated - Test port Compensation: Off / 1 dB to 30 dB. bellow.
-
Page 24: Ethernet Features
H30 - CATV & DOCSIS3.0 Meter / Analyzer Ethernet Features Set the network parameters in the H30 to use the Ethernet port. 1. Network setup To configure Internet access, select the function “Setup” from the main menu. 2. Firmware update Note: When the equipment is connected to internet, detects automatically if there ir a newer software version. -
Page 25: Remote Control
6.- When the installation is complete, press the OK button to reboot the meter. Note: When your H30 connects to the server to update the firmware, it checks in our database if you have purchased any of the available options. If so, they will be activated automatically with the update. - Page 26 H30 - CATV & DOCSIS3.0 Meter / Analyzer To run the remote control application, you Go back to the Select other channel must copy the IP in the web browser bar and from the plan main window automatically will appear the main window of the application.
- Page 27 Enter the description and - Datalogs press “Change” In this section you can see all the measures saved in your H30 with the “Save Datalog” feature. Go back to the List of Datalogs main window User can also delete a log from the list by pressing “Del”...
- Page 28 H30 - CATV & DOCSIS3.0 Meter / Analyzer The ILOGs can have measurements of one single Back to the list of Two views: Table view and channel (if it was recorded with the following Datalogs Icon view functions: Channel Info, Constellation, CTB & CSO, Volt.
- Page 29 Chart with the Go back to the Allows to export List of channel plans historical of all the main window data in different measurements Channel formats Allows to create a new Measurements plan or import it from in the instant a .csv file selected with the green marker on...
- Page 30 H30 - CATV & DOCSIS3.0 Meter / Analyzer -The first row is used for the channel plan data, with the following fields separated by “;”: * The name of the channel plan (10 characters maximum), * The channel plan ID (0 or blank for first free user plan and >=50+n for updating user plan #n) -From the second row onwards, it will be used a row for each channel, with the following fields in...
- Page 31 Go back to main window Press “Delete” to confirm Allows tocreate a new User can add a new channel to a custom plan: List of quality profiles quality profile User can create a new quality profile from an existing one: Enter the name, frequency, BW, and video offset of the...
- Page 32 H30 - CATV & DOCSIS3.0 Meter / Analyzer Once the changes are finished, you can save the quality profile. Change the value of the limits Press Delete to confirm Allows to edit the - DOCSIS name of the profile, save it, or delete it This function shows the status of all the upstream and downstream channels at a glance, as well as the measurements made on each channel.
- Page 33 3. Application Program Interface API (Application Program Interface) software is - About available using http to integrate data of H30 into This feature shows the information about your H30. applications that need it. There are also links to the H30 documents. In its basic version that API allows you to set confi- guration and retrieve measurement data from the From this web you can also Import/Export the H30...
-
Page 34: Maintenance
Repair service Do not return the unit without first contacting Televes Technical Support. If the unit needs to be returned, Televes will arrange for free shipping. The unit will need to be appropriately packed for shipping. In compliance with IATA Regulations, when using our shipping service follow these instructions: Label the package. -
Page 35: Warranty
(F) Any damage caused by shipper shall be claimed original purchase, unless otherwise specified. with the shipper in accordance with the (B) Televes shall, free of charge and in its sole shipper’s policies and procedures. discretion, either repair, replace with a new or... - Page 36 H30 - CATV & DOCSIS3.0 Meter / Analyzer...
- Page 39 593101_593102_593103_593104_009_EN...
