DESCRIPTION

This document describes the steps to be followed to update the H30's firmware to the latest version available on

Televes' cloud server using an Internet connection. The update process should take no longer than five minutes to

complete.

•

It is assumed there is a DHCP server available in the network.

•

If this is not the case then the correct IP configuration will have to be manually entered in the following

menu:

•

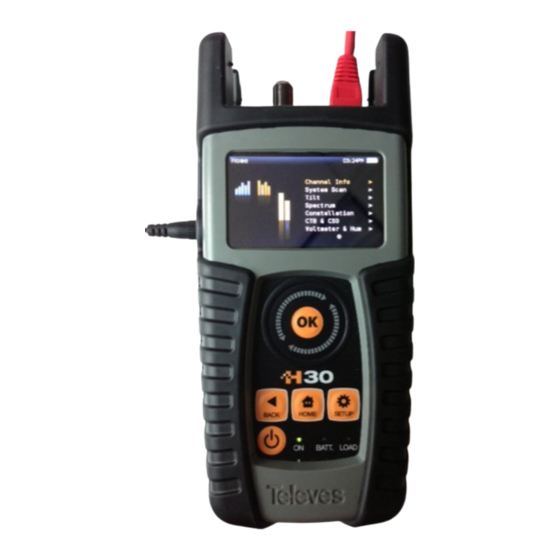

STEP 1 – Connect power to the H30 using the provided PSU and connect the meter to the Internet.

•

STEP 2 – Press "Home" and "Setup" to enter the H30 configuration menu. Then use the thumbwheel to

navigate and highlight the "Update Firmware" option:

REF. #593101 – H30 CATV Meter / Analyzer

Setup à Network à IP à Manual

AUTHOR

Javier Ruano

Firmware Update

VERSION

PAGE

DATE

1.01

1/2

03/21/2013

Table of Contents

Do you have a question about the H30 and is the answer not in the manual?

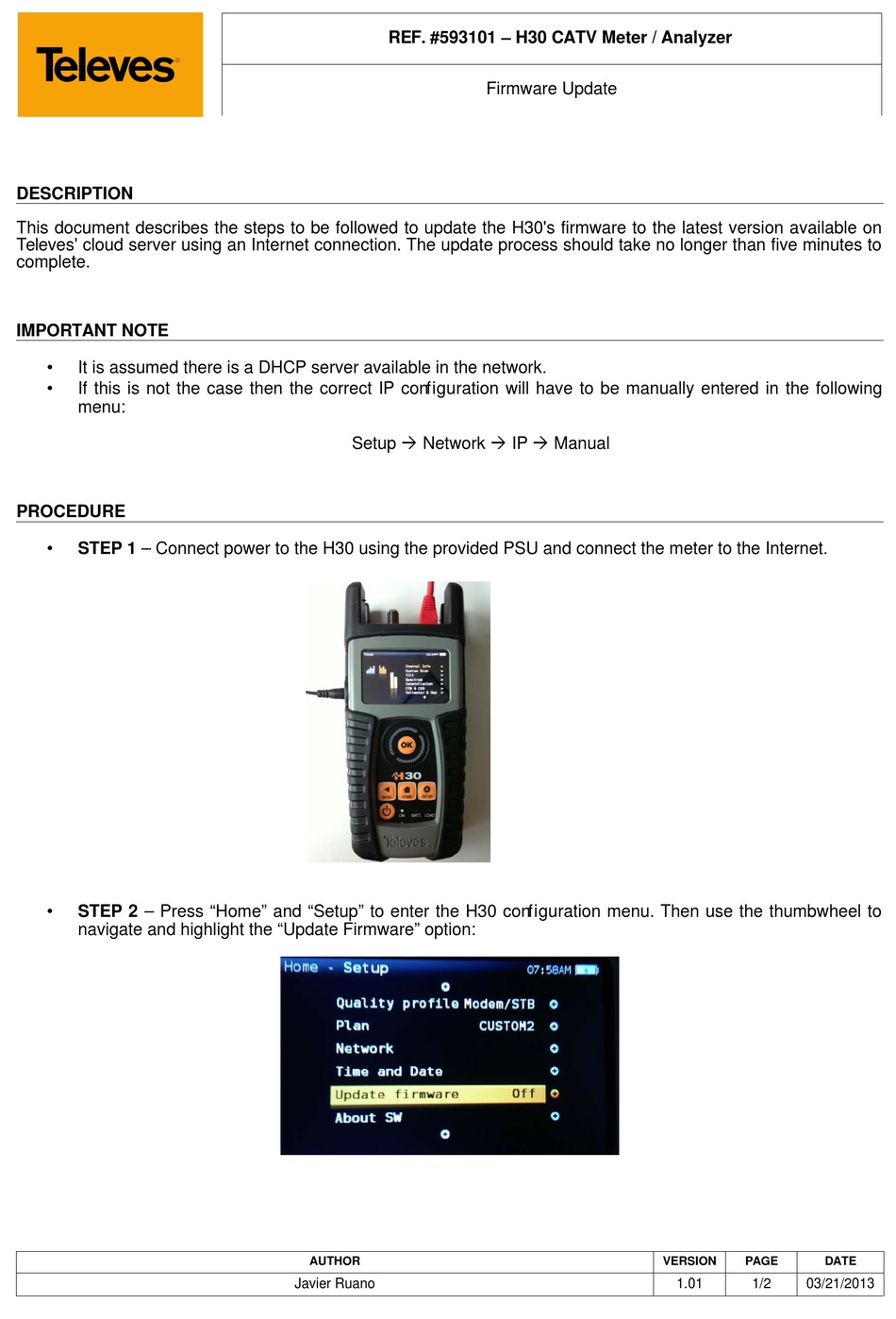

Page 1 Firmware Update DESCRIPTION This document describes the steps to be followed to update the H30's firmware to the latest version available on Televes' cloud server using an Internet connection. The update process should take no longer than five minutes to complete.
Page 2 REF. #593101 – H30 CATV Meter / Analyzer Firmware Update • STEP 3 – Press “OK” to display the list of options and the thumbwheel to highlight “ON”, then press “OK” again to select it: • STEP 4 – Once “Update Firmware - On” has been selected, press and hold the power button to turn the unit off: •...
