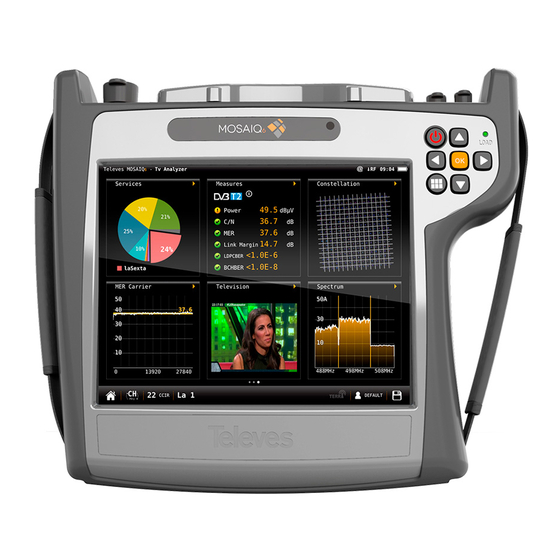

Televes MOSAIQ6 User Manual

Multi-touch meter / analyser
Hide thumbs Also See for MOSAIQ6:
Table of Contents

Advertisement

Quick Links

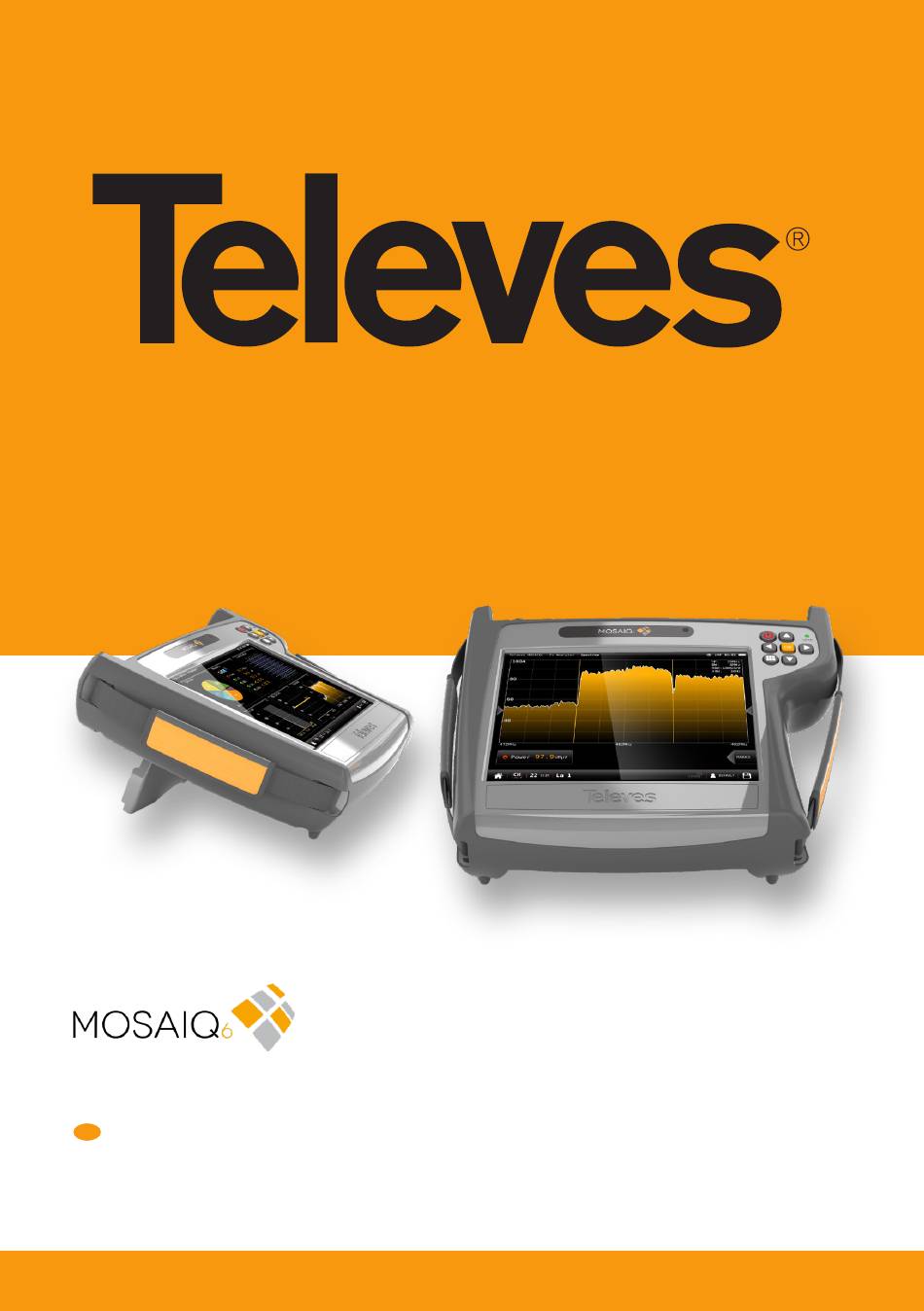

Refs. 596101, 596111
Multi-touch Meter / Analyser
User manual
EN
w w w . t e l e v e s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOSAIQ6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Televes MOSAIQ6

Summary of Contents for Televes MOSAIQ6

  • Page 1 Refs. 596101, 596111 Multi-touch Meter / Analyser User manual w w w . t e l e v e s . c o m...
  • Page 3 Index Index 1.- Measurements Safety requirements 2. Plans Symbols and safety labels 3. SCR Introducing the MOSAIQ 4. Quality profiles Key features 5. User profiles General Specifications 6. Antenna profile Technical Specifications 7. Clone Description of equipment components 8. Licenses Connectors and controls 9.

  • Page 4: Safety Requirements

    MOSAIQ6 Multi-touch Meter/Analyser Safety requirements Servicing - There are no user serviceable parts except the battery pack. Do not attempt to service this Product inspection product or remove covers. Refer all servicing to - Inspect the equipment for shipping damage.

  • Page 5: Key Features

    Powerful digital spectrum analyser (scanning With MOSAIQ6, technicians have a tool to measure, < 10ms.) 5MHz - 3.3GHz range. analyse and diagnose radio and TV signals in any scenario, no matter how complex.

  • Page 6: General Specifications

    MOSAIQ6 Multi-touch Meter/Analyser General Specifications Display 8” Touch Screen TFT 1024x768 Full Colour Weight 2150g Dimensions 250x210x60 mm  (H x W x D) Input: 100-240V~ 50-60Hz Power supply Output: 24VDC, 4A Battery Li-ion (7,2VDC, 9000mAh). Field-swappable Operating time > 4 hours Operating temperature -5ºC to 45ºC (23ºF to 104ºF)

  • Page 7: Technical Specifications

    Technical Specifications Attenuation Frequency Multiple PLP Range 5 - 3300 MHz Digital measurements QAM (Annex A/B/C) Accuracy 1 kHz Tuning Frequency or channel Modulations 4QAM, 16QAM, 32QAM, 64QAM and 256QAM Power 20 - 128dBµV Input 1.2E-3 - 1.0E-8 Impedance 50 Ohm Up to 40dB Spectrum Analyzer Up to 52dB...
  • Page 8 MOSAIQ6 Multi-touch Meter/Analyser BCHBER 9.9E-2 - 1.0E-8 4K visualization Option 596205 Constellation SID, VID, AID, Resolution, Profile , Audio Info MPEG Bitrate, Video Bitrate, Resolution info Uncorrected packets IPTV Analyzer TILT Wifi Analyser 2,4 GHz and 5 GHz (Option 596202)

  • Page 9: Description Of Equipment Components

    Description of equipment Keyboard components Connectors and controls 1. Touch screen 8” 2. Connectors 3. Keyboard and LED indicators 4. Battery (on the back) 1. Device ON/OFF button: To turn the equipment off, press and hold for approximately 3 seconds. Short press to lock/unlock the screen.

  • Page 10: Power Supply

    From a fully discharged state, a full charge takes approximately between 3 and 4 hours. And a 1 Turn the MOSAIQ6 off: hour charge will provide battery for around two working hours.
  • Page 11 The battery pack is placed in the botton-back side The battery can be charged separately from the meter using the DC adaptor supplied with the MOSAIQ6. Plug the adapter into a properly grounded electrical supply and the power connector on the side of the unit.

  • Page 12: Before Starting

    MOSAIQ6 Multi-touch Meter/Analyser Gestures Before starting MOSAIQ6 has an innovative interface, exclusively The first time you turn you MOSAIQ6 on, please designed to get the most out of its 8” multi-touch follow the next steps for a proper registration. To display.
  • Page 13 Tap to select networks will appear on the screen. You must select one of them to access the internet. 4.- When your MOSAIQ6 is connected to the internet, you have to enter you Televes account data (e-mail and password). Enter your Televes account data Skip: cancel the registration.

  • Page 14: Icons On The Screen

    Icons on the screen 6.- The last step is to enter an alias for your MOSAIQ6, this name will be saved in our database: There are always two bars on the screen : one on the top and one on the bottom. The icons in them Enter an alias for your will be explained bellow.
  • Page 15 Ethernet. MOSAIQ6 will tune the new channel See section Settings-Network in Top Muenu and select the service automatically • Wi-Fi: indicates that the meter is connected to a Wi-Fi network.
  • Page 16 If you select CAM input, please wait a few seconds until the MOSAIQ6 detects the CAM. Then you can access to the MMI menu of the CAM: Tap to access to the MMI Menu...
  • Page 17 Powering: • Volume: increases/decreases the volume Allows setup the preamplifiers powering. Select parameter doing “tap” Increases/Decreases Consumption Select doing “tap” doing “drag” information • Touch: increases/decreases the touch control sensitivity Settings: Tap to select The user can set the following parameter from this menu: •...
  • Page 18 • GPS: Enables/disables the GPS feature. When it is doing “tap” enabled, the corresponding icon appears on the top bar of the screen. While the MOSAIQ6 does not receive the satellite signal, the GPS icon will blink. Select the parameter •...
  • Page 19 1.2.- Measures Allows to set up those parameter that All the MOSAIQ6 features are contained in this commons to all the measurements: units, menu, and they will be explained in the following frequency (if real frequency is nos checked, the sections.
  • Page 20 Tap to update 1.5.- Licenses Shows a list with all the licenses of your MOSAIQ6. Tap to restore factory settings You can also update your device using an USB stick. To do that, save the update file in an USB stick 1.6.- About...

  • Page 21: User Profiles

    To select a band, you must select the corresponding check box. The first step is the terrestrial band, then Your MOSAIQ6 allows to define as many user tap on “Next” button pass to the satellite band, and profiles as you need. For each user profile, you finally the radio band.
  • Page 22 MOSAIQ6 Multi-touch Meter/Analyser Tap to select/deselect Select the number of the band satellites 3. Optical attenuation This feature allows to measure the optical attenuation in the fibre network in three wavelengths: 1310nm, 1490nm and 1550nm. When the user selects this features, the optical fibre input is automatically enabled.

  • Page 23: Satellite Identification

    • Powering: 4.1.- Main window VDC: Selects the preamplifier powering. DiSEqC (only satellite band): selects the The Mosaiq6 adjusts automatically all DiSEqC parameter (Sat A, Sat B, Sat C, Sat the paramenters of the spectrum Positioner (only satellite band): makes it possible to control the DiSEqC motors used to move mobile parabolic antennas.
  • Page 24 MOSAIQ6 Multi-touch Meter/Analyser 5.1.- Main window slot 3, freq. 1210MHz), the meter will tune into the slot frequency (1210MHz) and will set the slot with the meter parameters: Similtaneous representation of the high UHF band frequency, band (powering), and DiSEqC.
  • Page 25 Tap to access to Signal spectrum the options menu List with channels and This is the main function of the MOSAIQ6. The user measurements can reach this function by tapping the icon Thanks to this feature it is possible to have in one screen all the information of the tuned signal.
  • Page 26 MOSAIQ6 Multi-touch Meter/Analyser Tapping on the icon a popup window will • Save: Saves a new plan with the found channels. appear showing the following functions: • Cancel: Closes the options window. Selected channel 6.1.2.- Options context menu Band Change tapping on the bar...
  • Page 27 (1210MHz) and where we want to measure and connect the meter, will set the slot with the meter parameters: taking care to have this function ON. The MOSAIQ6 frequency, band (powering), and DiSEqC. will measure the levels of all the channels...
  • Page 28 MOSAIQ6 Multi-touch Meter/Analyser stored. 6.2.2.- Options context menu: SCR (only satellite band): Selects the SCR parameters (multiswitch, standard and slots) When a slot is enabled (for example slot 3, freq. 1210MHz), the meter will tune into the slot frequency (1210MHz) and will set the slot with the meter parameters: frequency, band (powering), and DiSEqC.
  • Page 29 6.3.2.- Options context menu stored SCR (only satellite band): Selects the SCR parameters (multiswitch, standard and slots) When a slot is enabled (for example slot 3, freq. 1210MHz), the meter will tune into the slot frequency (1210MHz) and will set the slot with the meter parameters: frequency, band (powering), and DiSEqC.
  • Page 30 MOSAIQ6 Multi-touch Meter/Analyser 6.4.1.1.- Main window showind the available audios. Tapping on the service’s name, it appears a popup Tap to see the list of window with the information about it: services Tap to close the popup Tap on the service’s name to...
  • Page 31 6.4.2.1.- Main window Halt: This command stops the motor movement. List of services with ID, the LCN East: Allows to move the motor in the (for DVB channels)or the Virtual EAST direction. Each click corresponds to Channel (for ISDB-T channels), the one step in the movement of the motor service name, and bitrates.
  • Page 32 MOSAIQ6 Multi-touch Meter/Analyser 6.4.3.1.- Main Window Positioner (only satellite band): makes it possible to control the DiSEqC motors Tap on the pencil to edit the used to move mobile parabolic antennas. standard, the BW, and the This function is available in satellite mode...
  • Page 33 6.4.4.1.- Main window Halt: This command stops the motor movement. East: Allows to move the motor in the List of Listof signal parameters EAST direction. Each click corresponds to measurements one step in the movement of the motor (pitch motors). By holding the key down, successive movement sequences will be executed until the key is released.
  • Page 34 MOSAIQ6 Multi-touch Meter/Analyser DiSEqC parameter (Sat A, Sat B, Sat C, Sat CSO Offsets (only analog channels): The CSO measure is carried out in different Positioner (only satellite band): makes it frequencies (at different distances from the possible to control the DiSEqC motors video carrier) within the selected channel.
  • Page 35 If you tap to enable marks: hold features. Tapping on Clear button to restart hold trace. Trigger: enables/disables the trigger by Drag to move the active mark level feature. To select the level, tap on the label and a popup keyboard appears. Fill: enables/disables the spectrum graph filled.
  • Page 36 MOSAIQ6 Multi-touch Meter/Analyser 6.4.6.2.- Options context menu slot is enabled. While the slot is enabled, all the setting changes of the meter, will be applied to the currently slot (SCR3). • Relative Marks: ON/OFF If ON is selected, the marks will be relative...
  • Page 37 6.4.7.2.- Options context menu: the antenna that has been previously stored -SCR (only satellite band): Selects the SCR parameters (multiswitch, standard and slots) When a slot is enabled (for example slot 3, freq. 1210MHz), the meter will tune into the slot frequency (1210MHz) and will set the slot with the meter parameters: frequency, band (powering), and DiSEqC.
  • Page 38 MOSAIQ6 Multi-touch Meter/Analyser to store at up to 8 antenna positions . This • MER RMS: Average MER of the DVB-T signal. command allows one of 8 positions to be • MER max: Maximum MER value of the DVB-T chosen where the current position of the signal.
  • Page 39 6.4.9.1.- Main window 6.4.9.2.- Options context menu: Data of the uncorrected packets analysis • Restart: restart the uncorrected packets analysis • Interval: Change the analysis interval time. The interval is configurable between 1 minute and 1 hour. Data about unlockings •...
  • Page 40 MOSAIQ6 Multi-touch Meter/Analyser 6.4.10.2.- Options context menu Goto: recovers one of the 8 positions for the antenna that has been previously stored SCR (only satellite band): Selects the SCR parameters (multiswitch, standard and slots) When a slot is enabled (for example slot 3, freq.

  • Page 41: Spectrum Analyser

    If you tap to enable the marks: 7. Spectrum analyser These feature has two screens: spectrum analyser Drag to move the active mark and waterfall. Long swipe to switch between them. 7.1.- Spectrum analyser This feature shows the spectrum of the input signal.
  • Page 42 MOSAIQ6 Multi-touch Meter/Analyser • RBW: 500 HzW – 5MHzW into the slot frequency (1210MHz) and will set the slot with the meter parameters: • VBW: 100Hz – 1MHz frequency, band (powering), and DiSEqC. • Advanced: Access to spectrum advanced features:...
  • Page 43 7.2.2.- Options context menu: 8. Radio Analyser This feature is similar to TV Analysis in the radio band. So it has two screens: scan and mosaiq 3+1. Long swipe to switch between them. 8.1.- Scan Radio This features scans the FM and DAB band. The scan measurement leverages the location based thresholds to clearly show whether or not signal levels comply with the cable system’s...
  • Page 44 (grey coloured), when you measurement on it. tap on it, it will be selected. • Attenuation: ON/OFF. When the attenuation option • Save: Saves a new plan with the found channels. is ON, the MOSAIQ6 measures the attenuation of the...
  • Page 45 Then you must go to all the pints of the installation where we want to measure and connect the meter, taking care to have this function ON. The MOSAIQ6 will measure the levels of all the channels comparing them with the reference ones.
  • Page 46 MOSAIQ6 Multi-touch Meter/Analyser 8.3.- Radio features 8.3.2.- Services (only for DAB channels) This section explains all the features available to This feature shows a graph representing the services visualize in the widgets of the Mosaiq 3+1 mode. distribution. Tapping on a section, you can see the name of the corresponding service.
  • Page 47 9. Wi-Fi Analyser List of measurements of List of signal parameters The MOSAIQ6 is able to perform a full analysis the channel of the Wi-Fi band in both 2,4GHz, and 5GHz bands. To change the band selection, tap on the corresponding icon placed in the bottom bar.
  • Page 48 Wi-Fi network parameters measurement 9.2.1- Wi-Fi List This feature shows a list with all the Wi-Fi networks detected by the MOSAIQ6. In this list, the user can select the Wi-Fi network whose measurements he wants to view by tapping on it.
  • Page 49 • Last: 10 min, ½ hour, ½ day, 1 day, 1 week. Allows select the time interval shown in the graph. 9.2.4- Channel map This feature shows a graph with the distribution of all the Wi-Fi networks detected byt the MOSAIQ6.

  • Page 50: Network Tools

    MAC and the manufacturer of each one. 10.2.1- Ping This function attempts to connect to the server selected by the user. If the conection is stablished, the MOSAIQ6 makes a successive pings to the server and shows the delay times.
  • Page 51 This function attempts to connect to the server, of the device with the IP selected by the user. checks the DHCP protocol and the connection to the Internet. Then, the MOSAIQ6 makes a download and upload speed test.

  • Page 52: Drive Test

    MOSAIQ6 Multi-touch Meter/Analyser 10.2.3.1.- Main window 11. Drive Test Orange icon while the test is running Green icon if the Type of speed is ok The Drive Test feature activates the GPS automatically. conecction Red icon if the speed This is a suitable function to detect possible signal...
  • Page 53 measurements on all the selected channels is Tap to select the channels to measure greater than the time interval, the time between one iteration and the next one will be the minimum necessary to perform the measurements in all the selected channels.
  • Page 54 MOSAIQ6 Multi-touch Meter/Analyser 11.2.2- GPS 11.2.3.1.- Main window This function shows all the information of the GPS. List of Listof signal parameters 11.2.2.1.- Main window measurements Green icon if the GPS is locked Red icon if the GPS is unlocked 11.2.4- Evolution...
  • Page 55 Tap on Stop to stop the 12. LOGS MacroLOG The MOSAIQ6 saves two types of measurements files: LOGs and MacroLOGs. A LOG saves all the measurements on the screen , as well as a screenshot. To save a LOG, tap on the icon in the bottom bar.

  • Page 56: Web Application

    • Screenshot: shows a screenshot of the meter exactly as it is at the measurement time. To access you MOSAIQ6 web application, you must If you select a MacroLOG, you can also select the type the IP of you meter in the address bar of your measurement iteration: web browser (Chrome recommended).
  • Page 57 Download/ If it is a MacroLOG use Change display Screenshot Delete LOG this control to see all the mode LOGs iterations Allows filter by type Click to see the LOG List of of channel measurements • List: If the MacroLOG has, in addition, GPS information, you can see all the measurements iterations placed Download/ in a map in the position where they was made,...
  • Page 58 At last it must appear the protocol and the address Delete plan Duplicate plan of the source. MOSAIQ6 only admits udp and rtp Display channel plan protocols. If a channel does not meet some of these specifications, it will not be included in the plan.
  • Page 59 Using the web application you can add new quality With this and considering the language selected in profiles. The MOSAIQ6 has two predefined quality your meter, the MOSAIQ6 will select automatically profiles (head-end and outlet) that can not be the channel plans both in terrestrial and satellite edited, but they can be duplicated.
  • Page 60 Duplicate profile Using the web application you can add new antenna profile to your MOSAIQ6, to be used in in field strength measurement. See section Inputs/Outputs in Top Menu chapter. The antenna profile will be load from a .csv file with...

  • Page 61: Remote Control

    Finally click on the Update button, the license will be activated in your MOSAIQ6. 9. Remote control Using this feature you can control your Hexylon remotely. For this to work, it is necessary that the Hexylon and the computer are connected to the same LAN.

  • Page 62: Error Messages

    It is recommended to turn off the powering feature of the MOSAIQ6. DC AT RF INPUT Check installation This message appears when the meter detects DC at the RF input that is not generated by the MOSAIQ6. It is recommended to check the installation.

  • Page 63: Technical Support

    Televes Technical Support. This warranty excludes any inoperability resulting from improper use, wear, service or repair If the unit needs to be returned, Televes will performed by any third party not authorized, arrange for free shipping. The unit will need to be appropriately packed for shipping.
  • Page 64 MOSAIQ6 Multi-touch Meter/Analyser DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ www.doc.televes.com ‫ةقباطملا نايب‬...
  • Page 65 596101_596111_1.32_EN...
