Summary of Contents for Televes H30FLEX

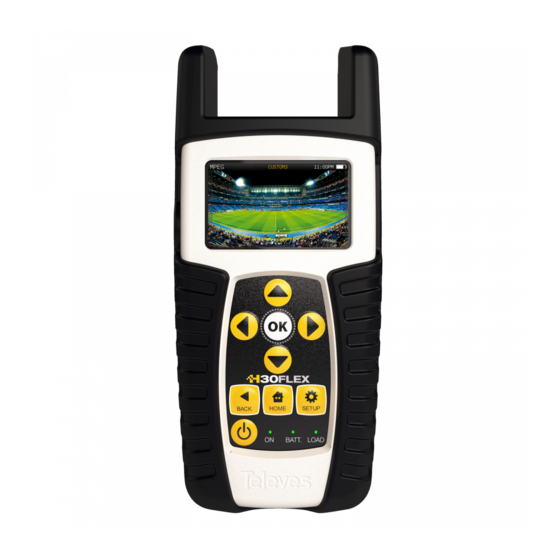

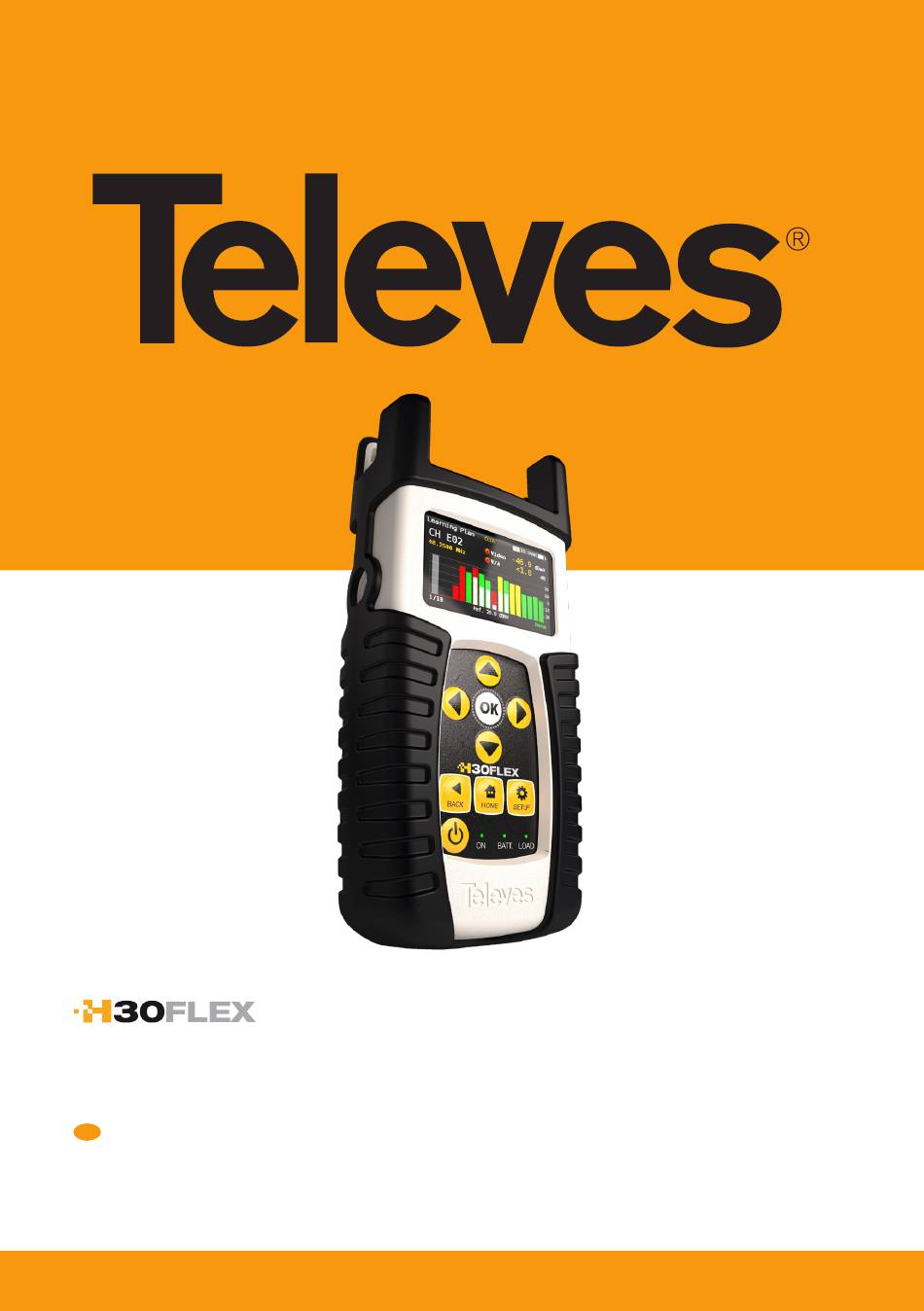

- Page 1 Refs. 593301, 593302 593303, 593304 593360, 593361 Instruction Manual Digital processing handheld DVB Meter / Analyzer w w w . t e l e v e s . c o m...
-
Page 3: Table Of Contents
Index Safety requirements Symbols and safety labels Overview Introducing the H30FLEX. Key Features General Specifications Technical Specifications Description of equipment components Connectors and controls Keyboard Power supply About battery Before starting Product operation 1. Channel Info 2. Spectrum 3. MPEG 4. -
Page 4: Safety Requirements
Analyzer H30FLEX handheld DVB meter / Safety requirements Servicing - There are no user serviceable parts except the battery. Do not attempt to service this product or Product inspection remove covers other than the battery cover. Refer - Inspect the equipment for shipping damage. -
Page 5: Overview
Complete portfolio Analog/Digital measurements with easy-to-read pass/fail New from Televes, a go-to meter designed with the indicators. needs of a DVB installator in mind. Quick and easy to use interface with features The H30FLEX is a light weight, rugged unit,... -
Page 6: General Specifications
Analyzer H30FLEX handheld DVB meter / General Specifications Display 2.8” TFT 400 x 240 full colour Weight 510g (12.12lb) Dimensions 175 x 100 x 52 mm / 6.9 x 3.9 x 2 in (H x W x D) Input: 100-240V~ 50-60Hz... -
Page 7: Technical Specifications
Technical Specifications Up to 38dB Up to 40dB Frequency Constellation Range 50 - 880 MHz and 950 - 2200 MHz Digital Measurements (DVB-S) Resolution 125 kHz MPEG image Tuning Frequency or channel Power 45-110dBuV (25-120dBuV opt.593235) Input Impedance 75Ω F-type connector CBER 9.9E-2 - 1.0E-6 Spectrum Analyzer... -
Page 8: Description Of Equipment Components
Analyzer H30FLEX handheld DVB meter / Description of equipment Keyboard components Connectors and controls Device On/Off button: To turn the equipment off, press and hold for approximately 3 seconds. Back button: Return to the previous menu or close a parameter entry window. -
Page 9: Power Supply
Power supply From a fully discharged state, a full charge takes A DC adapter is provided to power and charge the approximately 8 hours and a 3 hour charge will meter. Plug the adapter into a properly grounded provide approximately a 75% charge. electrical supply and the power connector on the The charge management system will detect side of the unit. - Page 10 Analyzer H30FLEX handheld DVB meter / Turn the H30FLEX off Place the new battery and then connect it to the power board OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec. OFF: > 3 sec.
-
Page 11: Before Starting
Before starting The first time you tunr your H30FLEX on, please follow the next steps for a proper configuration: 1.- Select the language using 2.3.- If the PIN is OK, you have finished the registra- tion process. NOTE: Options 593234 (dCSS) and 593235 (Exten-... -
Page 12: Spectrum
Real-time processing speeds ensure capture of any fast, intermittent plant impairments. Due to the accuracy and level of detail provided by Bar graph of main this spectrum analyzer, the H30FLEX is the ideal measurement. List of measurements Color according to... -
Page 13: Mpeg
3. MPEG - Band: Terrestrial/Satellite - Powering: Selects the LNB powering The H30FLEX’s MPEG feature will show the image - DiSEqC (only satellite band): Selects DiSEqC of the selected service. parameter (Sat A, sat B, sat C, sat D) -
Page 14: System Scan
Analyzer H30FLEX handheld DVB meter / changes of the meter, will be applied to the Selected channel currently slot (SCR3). Change using - Volume 4. System Scan This function scans the selected channel plan and detects every existing analog and digital channel in real time to determine the overall frequency response of the system. -
Page 15: Satellite Test
4.2. Setup This function checks that the input signal corresponds to the selected satellite, and at the same time checks the proper reception of the Press to change the System Scan options. selected transponders (from 1 to 4 transponders). To do that, the meter performs all the measurements on those transponders. -
Page 16: Constellation
Analyzer H30FLEX handheld DVB meter / white bar indicating the level of the audio carrier. 6.1. Main window Below is a capture of a Learning Plan window with a brief explanation of its features: - Powering: Select the powering of the LNB if Selected channel needed. -
Page 17: Echoes
The H30FLEX’s real time constellation, allows the needed. installer to assess the size and shape of the build - DiSEqC: Select the SAT of the DiSEqC up of dots indicative of problems which contribute command. to bit errors leading to service disruption... -
Page 18: Camera
Selected channel Interval, and Cell ID Change using 9. Camera This feature allows the H30FLEX meters to have an analog video and audio input using an external USB 2.0 adapter, with capability to digitize the analog input signals. It is specifically aimed for installation and maintenance of analog video surveillance systems. -
Page 19: Setup
Change main configuration settings: Auto shutdown - USB Storage (only old hw version): Connect your H30FLEX to your computer using the USB connector and turn USB Storage ON, so you can use your H30FLEX as a storage unit. - Update firmware: See section Firmware... -
Page 20: Web Application
Analyzer H30FLEX handheld DVB meter / Web Application 1.- If your H30FLEX is an old hardware version one, the first thing that you must do is to install the driver. Once you have installed the corresponding driver, open a web browser in your computer (Chrome recommended). -
Page 21: Measurements
Clicking on a the corresponding button of aDatalog of the list, the measurements of that Datalog will In this window, you can see all the datalogs saved be displayed: in your H30FLEX. They are grouped by date in a calendar: Date of the measurement, Remove/export... - Page 22 So, the channel plans corresponding to that area will be available in your H30FLEX. Using the function “Configure plans by zone”, you can change the geographic area whenever you want:...
-
Page 23: Scr
The channel plans added from the repository will Save the profile be uploades to your H30FLEX, but none of the in the meter channel plans in your meter will be removed. Display to see all the... -
Page 24: Update
1.- The first thing that you must do is download the The first thing that you must do is download the update file from the web of Televes and save it in update file from the web of Televes and save it in your computer. -
Page 25: Error Messages
It is recommended to turn off the powering feature of the H30FLEX. DC AT RF INPUT Check installation This message appears when the meter detects DC at the RF input that is not generated by the H30FLEX. It is recommended to check the instal- lation. -
Page 26: Repair Service
Repair service Do not return the unit without first contacting Televes Technical Support. If the unit needs to be returned, Televes will arrange for free shipping. The unit will need to be appropriately packed for shipping. In compliance with IATA Regulations, when using our shipping service follow these instructions: Label the package. - Page 27 DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ةقباطملا نايب www.doc.televes.com...
- Page 29 593301_593302_593303_593304_593360_593361_1.00_005_EN...
